Name: 3pc 95º Indexable Boring Set
SKU: 2245
Availability: OutOfStock

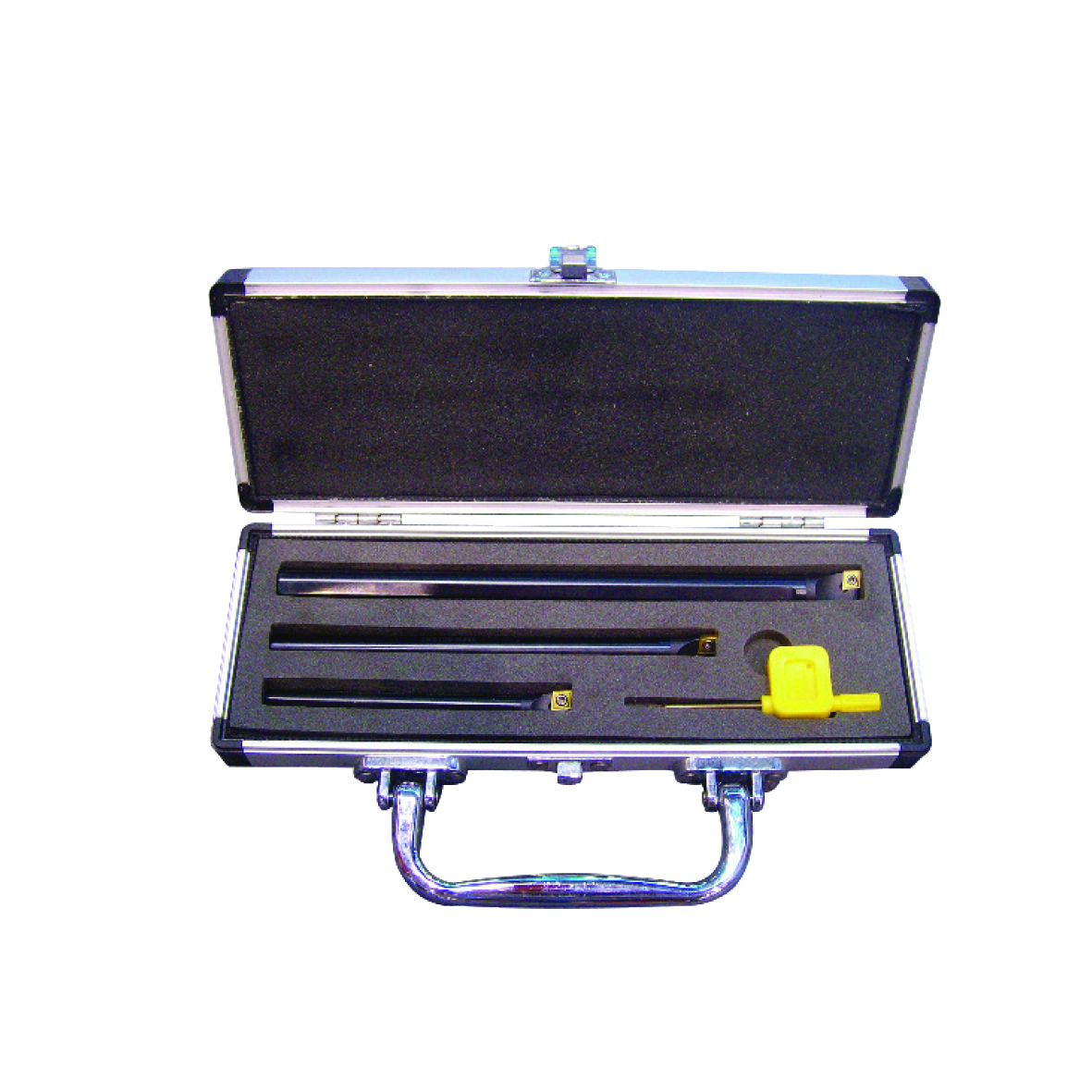

3pc 95º Indexable Boring Set

Indexable boring turning tools for lathes.

Description

Quality indexable boring bars for lathes. Ideal for turning and boring.

Tool holders	Insert	Screw	Wrench	Shank (D)	Length (L)	Stock Code
S08Q-SCLCR2	CCMT060204	M2.5×7	T8	8mm	180mm	001-353
S06M-SCLCR2	CCMT060204	M2.5×7	T8	6mm	150mm
S05H-SCLCR2	CCMT060204	M2.5×7	T8	5mm	125mm

Tool holders	Insert	Screw	Wrench	Shank (D)	Length (L)	Stock Code
S10K-SCLCR06	CCMT060204	M2.5×6	T8	10mm	125mm	001-354-I
S12M-SCLCR06	CCMT060204	M2.5×6	T8	12mm	150mm
S16R-SCLCR09	CCMT09T304	M4x10	T15	16mm	200mm

Additional information

Weight	2 kg
Shank Diameter	8, 10, 12, 16mm, 5, 6, 8mm, 10, 12, 16mm
