Quality independent jaw chucks. 4 jaw with plainback fitting.
| Size | Weight | Stock Code |
| 80mm | 2kg | 011-101 |
| 100mm | 4kg | 011-102 |
| 125mm | 5kg | 011-103 |
| 160mm | 10kg | 011-104 |
| 200mm | 16kg | 011-105 |
| 250mm | 24kg | 011-106 |
| 320mm | 41kg | 011-108 |
| 400mm | 65kg | 011-109 |
| 500mm | 116kg | 011-110 |
| 630mm | 350kg | 011-112 |
| 800mm | 595kg | 011-113 |
| 1000mm | 1130kg | 011-114 |
These Chucks are suitable for use on universal lathes and internal and external grinding machines etc. for clamping workpieces to perform various cutting operations.
The jaws for clamping are constructed of quality steel and have been subjected to hardening treatment to ensure high wear and shock resistance. They are retentive of accuracy and durable in service.
Each chuck comes with a technical accuracy test certification and instructions for use.
Each chuck is supplied with 1 set of Reversible Jaws.

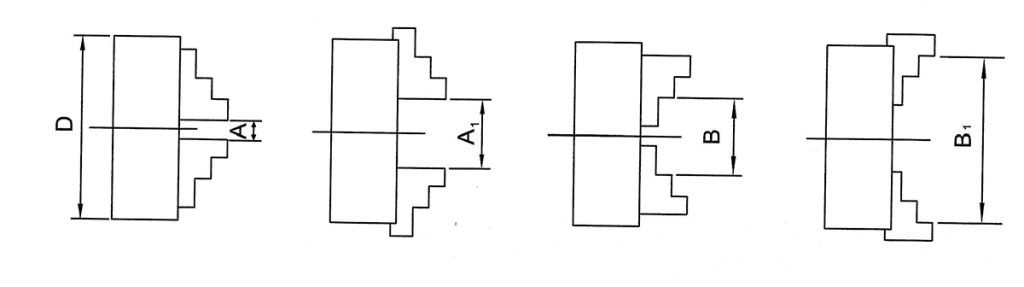

| Clamping Range | ||
| Size | Internal Jaw (A-A1) | External Jaw (B-B1) |
| 80mm | 5-35mm | 55-80mm |
| 100mm | 6-45mm | 40-100mm |
| 125mm | 7-57mm | 48-125mm |
| 160mm | 8-80mm | 50-160mm |
| 200mm | 10-100mm | 63-200mm |
| 250mm | 15-130mm | 80-250mm |
| 300mm | 20-156mm | 100-300mm |
| 320mm | 20-170mm | 100-315mm |
| 350mm | 20-206mm | 100-350mm |
| 400mm | 25-250mm | 118-400mm |
| 500mm | 35-300mm | 125-500mm |
| 630mm | 50-400mm | 160-630mm |
| 800mm | 70-540mm | 200-800mm |
| 1000mm | 100-680mm | 250-1000mm |

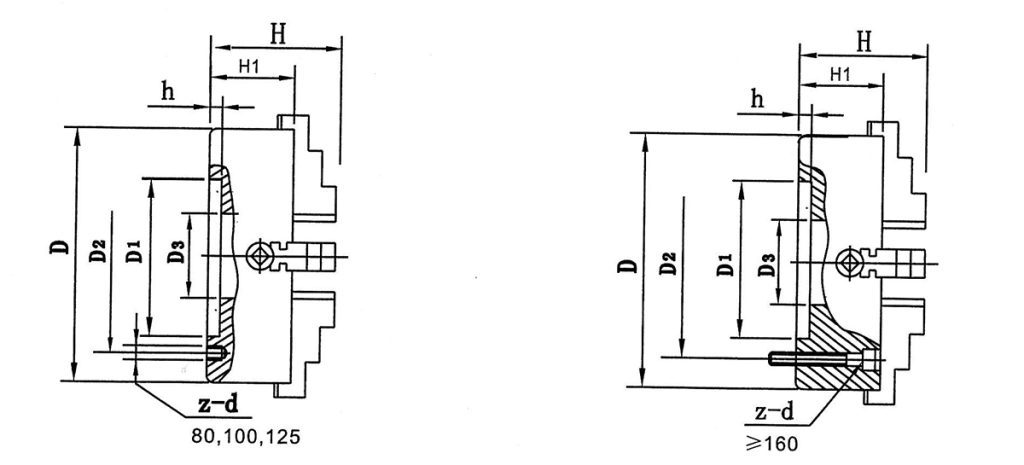

| Installation Dimensions | |||||||
| Size | D1 | D2 | D3 | H1 | h | z-d | H |
| 80mm | 55mm | 66mm | 22mm | 42mm | 3.5mm | 4mm M6 | 56mm |
| 100mm | 72mm | 84mm | 25mm | 54mm | 3.5mm | 4mm M6 | 73mm |
| 125mm | 95mm | 108mm | 30mm | 56mm | 4.5mm | 4mm M8 | 78mm |
| 160mm | 130mm | 142mm | 40mm | 65mm | 5mm | 4mm M10 | 96.5mm |
| 200mm | 125mm | 104.8mm | 50mm | 75mm | 6mm | 4mm M12 | 110mm |
| 250mm | 100mm | 120mm | 65mm | 82mm | 6mm | 4mm M12 | 117.5mm |
| 300mm | 152mm | 130mm | 75mm | 85mm | 6mm | 4mm M16 | 128.5mm |
| 320mm | 140mm | 165mm | 95mm | 90mm | 6mm | 4mm M16 | 134mm |
| 350mm | 130mm | 168mm | 80mm | 95mm | 8mm | 4mm M16 | 145mm |
| 400mm | 160mm | 185mm | 125mm | 95mm | 8mm | 4mm M16 | 143mm |
| 450mm | 180mm | 205mm | 140mm | 100mm | 8mm | 4mm M16 | 147mm |
| 500mm | 200mm | 236mm | 160mm | 106mm | 8mm | 4mm M20 | 161mm |
| 630mm | 220mm | 258mm | 180mm | 115mm | 10mm | 4mm M20 | 180mm |
| 800mm | 250mm | 300mm | 210mm | 135mm | 12mm | 8mm M20 | 210mm |
| 1000mm | 320mm | 370mm | 260mm | 150mm | 15mm | 8mm M20 | 250mm |
