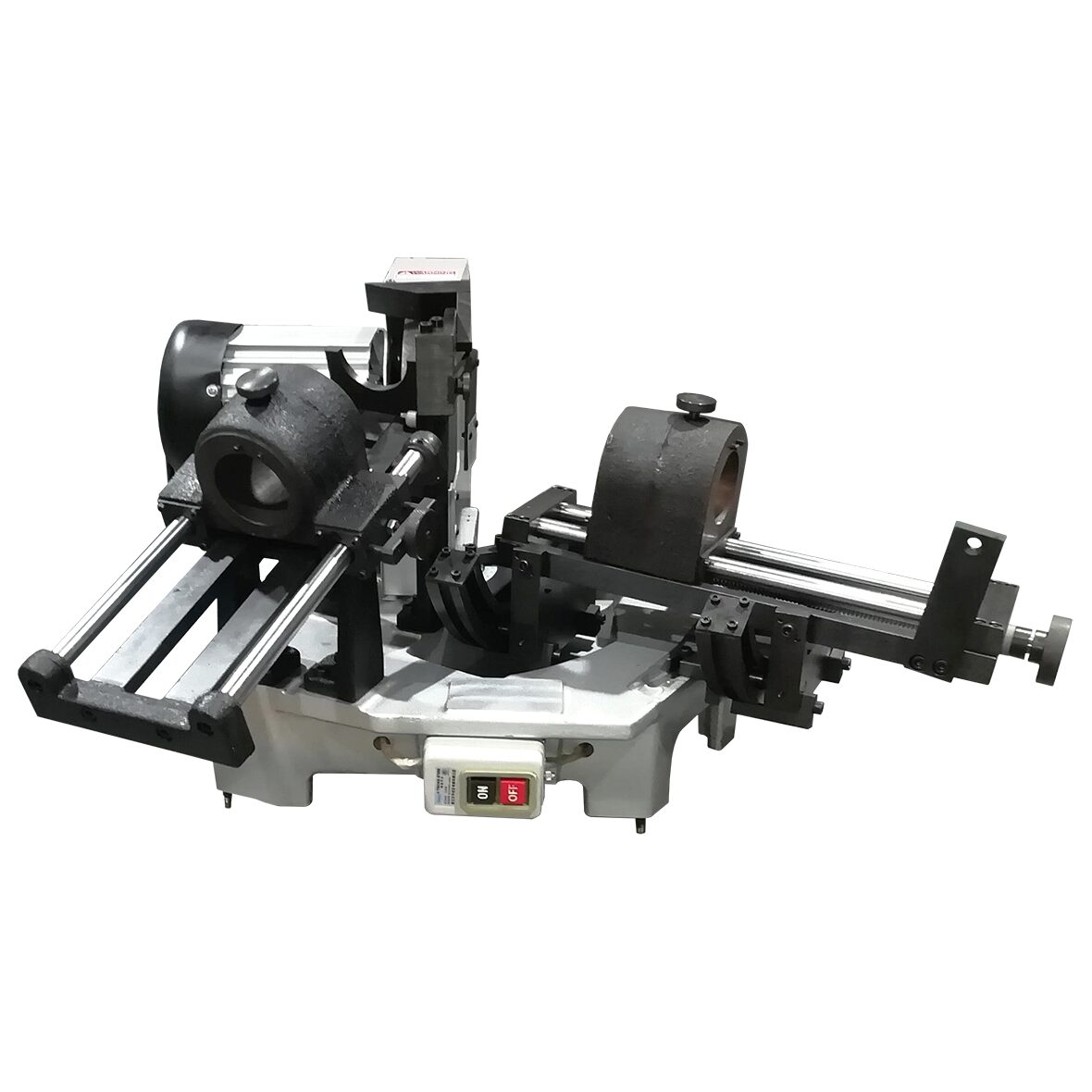

BRIERLEY 50X DRILL GRINDERS

Precision grinding machine with 118º point angle. Capable of handling 13 ~ 50mm drill size.

Please contact us for more info.

Description

Precision Drill Grinder, easy to operate, ideal for manufacturing. Complete with reduction sleeve and chuck with fixed pull-tab.

Model 50X
Drill Size 13 ~ 50mm
Point Angle 118º
Power Supply Single phase 220v
Motor ¼ hp 200w
RPM of motor 3000rpm
Diamond Grinding Wheel CBN #220
Weight 68kg
Machine Dimensions 745x650x360mm

Standard Accessories

• Reduction Sleeve 3pcs

• Hexagon Wrench

• Chuck with Fixed Pull-tab 1pc, Taper Sleeve 1pc



Click the links below to download the specific documents.
50X-NEPTUNE.pdf
There are currently no videos attached to this product please check back in the future.
