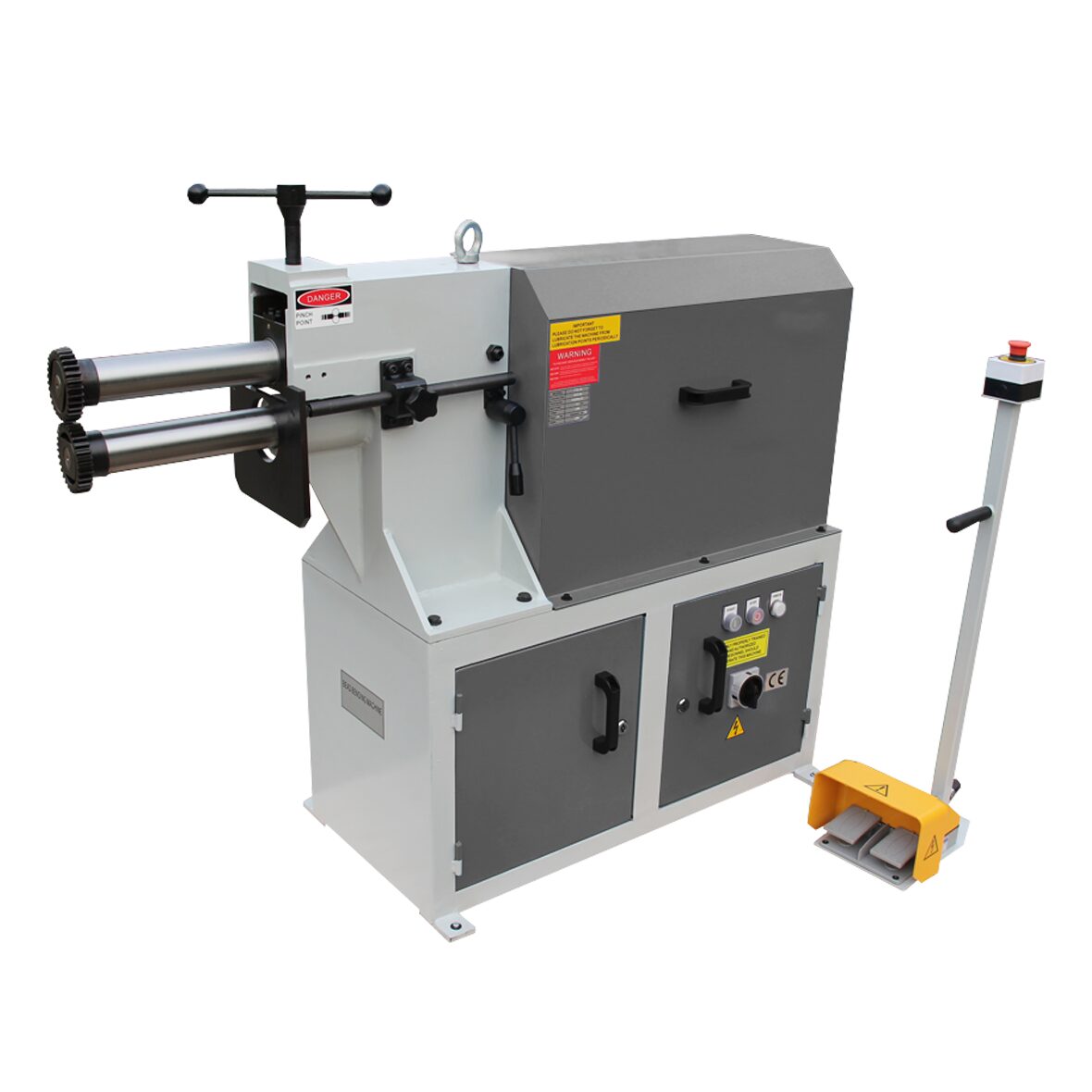

CHESTER BB22/EBB12-EBB25/EBB40 BEAD BENDING MACHINES

• Steel Welded Construction Frame

• Adjustable Idle Roller

• Steel Shaft With Bronze Bushings

• Reduction Motor With Brake System

Please contact us for more info.

Categories: , , Tags: , , ,

Description

• Movement Of Rollers With Foot Pedal

• Complete With Stand

• 4 Sets Standard Rollers

Model BB-12 EBB-12
Max Thickness 1.2mm/18Ga 1.2mm/18Ga
Cylinder Length 140mm/5-1/2″ 140mm/5-1/2″
Throat Depth 200mm/8″ 200mm/8″
Cylinder Speed 32rpm
Motor Power 0.75kw (1hp)
Dimensions 670x320x600mm 1100x480x1480mm
Weight 480kg 120kg
Model EBB-25 EBB-40
Max Thickness  2.5mm/12Ga 4mm/8Ga
Cylinder Length 120mm/4-3/4″ 165mm/6-1/2″
Throat Depth 280mm/11″ 300mm/12″
Cylinder Speed 20rpm 15.3rpm
Motor Power 1.5kw(2hp) 2.2kw(3hp)
Weight  235kg 341kg
Dimensions  1470x580x1350mm 1650x580x1400mm



Click the links below to download the specific documents.
BB-Series.pdf
