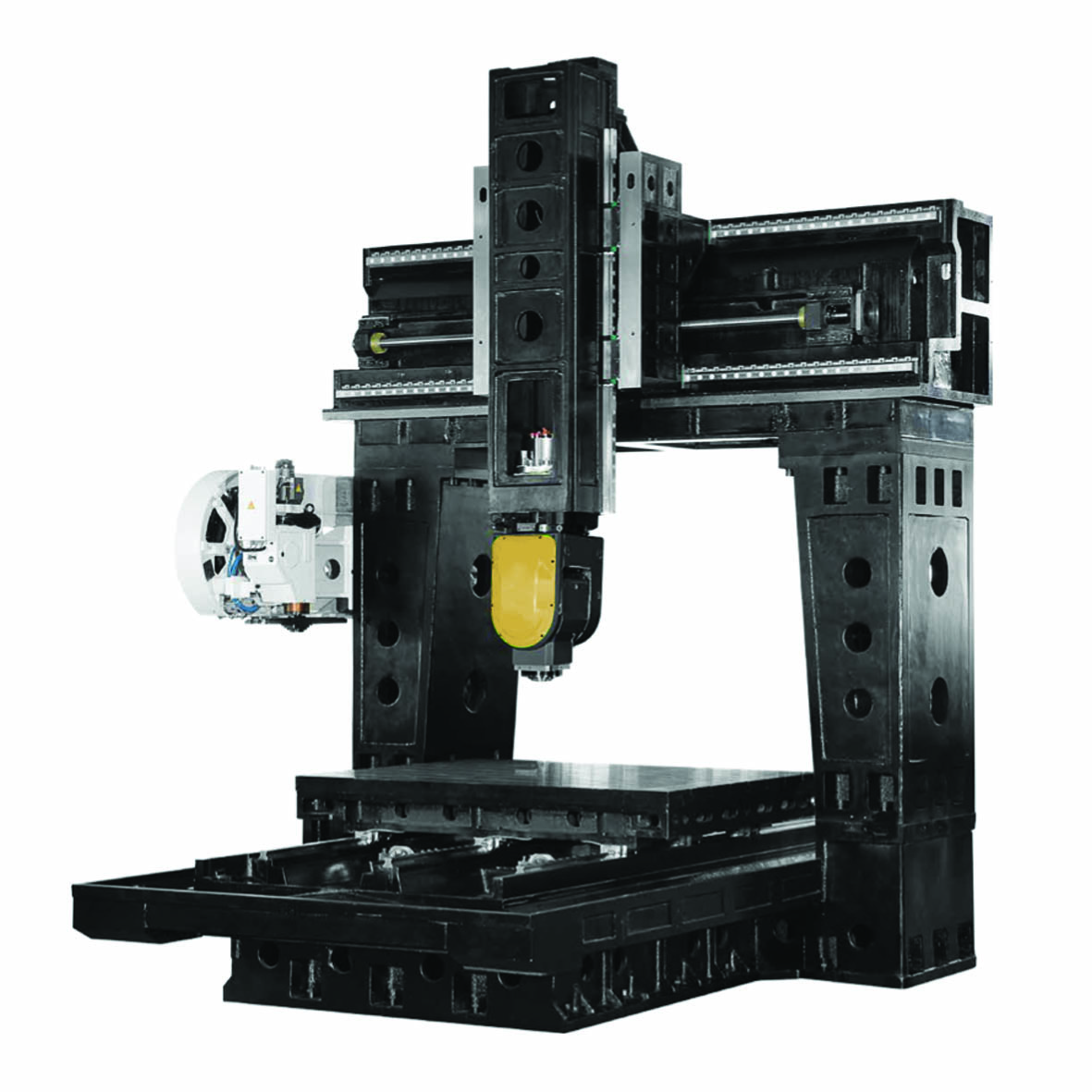

CHESTER 5 AXES GANTRY MILLING MACHINE • GT-5X SERIES

• Built-in type spindle, HSK A63, 24000 rpm

• 60 pockets chain type servo tool changer

• Heidenhain linear scales on three axes

• Oil cooled ballscrew

• Dual drive system with two ballscrew

• Direct drive servo motor for A/C axes

Please contact us for more info.

Description

STANDARD ACCESSORIES

• Full enclosed splash guard

• Motor spindle HSK A63 24000 rpm

• 60 pockets chain type tool changer

• Chip conveyor (two screw type and one chain type)

• Air-conditioned electrical cabinet

• High precision spindle water cooler

• Linear scales

• Rigid tapping

• Ethernet, CF card and USB interface

• Automatic lubrication system

• Coolant system

• Air blast during cutting

• LED working lamp

• End of program light

• Electronic handwheel (MPG)

• Tool box

• Leveling bolts and blocks

• Coolant gun

• Air gun

• User Manual



OPTIONAL ACCESSORIES

•  Built-in motor spindle HSK A100 15000rpm_40/50kW_103/129Nm, 40 pockets tool   changer(GT18-5X/GT33-5X)

• Built-in motor spindle HSK A100 12000rpm_40/47kW_248/293Nm, 40 pockets tool changer(GT40-5X)

• CTS Coolant through spindle + ATS

• Oil cooled ballscrew

• Oil skimmer

• Workpiece probe

• Tool probe

• Dynamic Collision Monitoring(DCM)

• Kinematics

Click the links below to download the specific documents.
GT-Series.pdf
