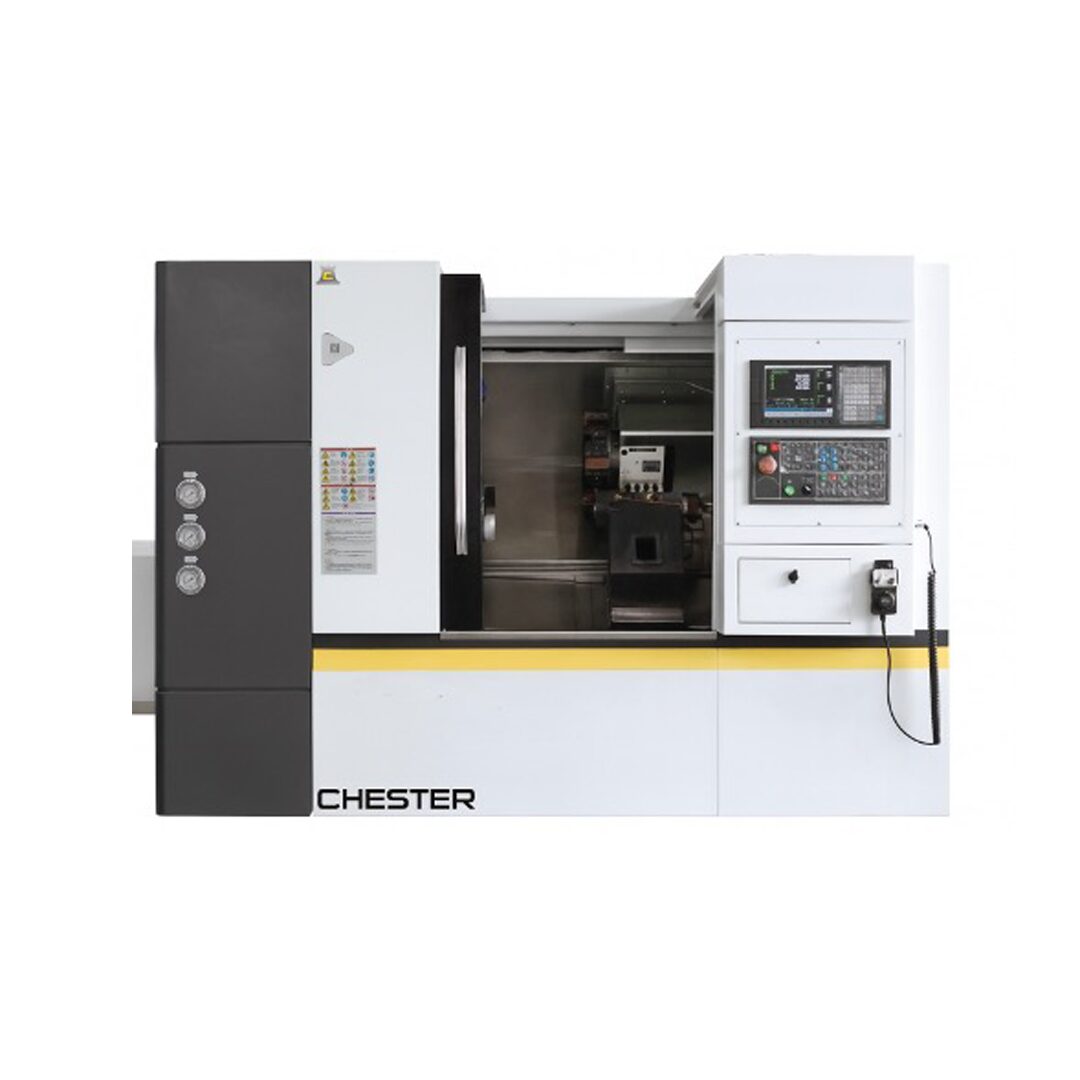

CHESTER CNC LATHE TC150-400×380

Please contact us for more info.

Category: Tag:

Description

Model TC150-400×380
Capacity
Chuck size 6″
Max. Length of Workpiece 380mm
Max. Swing Dia. over Bed Φ400mm
Max. Swing Dia. over Side Φ220mm
Spindle
Spindle Bore Φ55mm; *Φ62
Max. Dia. of Through-Hole Φ46mm; * Φ52
Spindle Nose A2-5; *A2-6
Max. Spindle Speed 4500rpm; *4000
Main Servo Motor 11kW Maximum
Axis
X/Z Axis Travel 150/400mm
X/Z Axis Rapid Traverse 20/20m/min
Turret
Turret Station 8 Piece, *12
Outer Diameter Handle Size 25 x 25mm
Tailstock
Type of Tailstock Hydraulic
Taper of Tailstock Quill MT4
Travel of Tailstock Quill 90mm
Travel of Tailstock 80-400mm
Structure
Slant Bed Degree 45
Guideway Type Linear Motion
Others
Power Capacity 14kva
Overall Dimensions (L x W x H) 2470 x 1745 x 1990mm
Weight 3400kg

Standard Accessories

  • Chip conveyor
  • GSK988TA control system
  • Linear guideway + ball screw
  • A2-8 spindle unit
  • Main Servo motor: 11/15W
  • 6″ Hollow hydraulic chuck + hollow hydraulic cylinder
  • 8-station electric turret with centre height of 100mm
  • MT4 Hydraulic Tailstock on steel-covered box guideway
  • Automatic lubrication system
  • Auto coolant system
  • Tri-color warning light
  • Foot pedal
  • 370W high pressure coolant pump
  • CE certification

Optional Accessories

  • Renishaw Tool setter
  • DH65 Bar feeder
  • Oil mist collector
  • Oil-water separator
