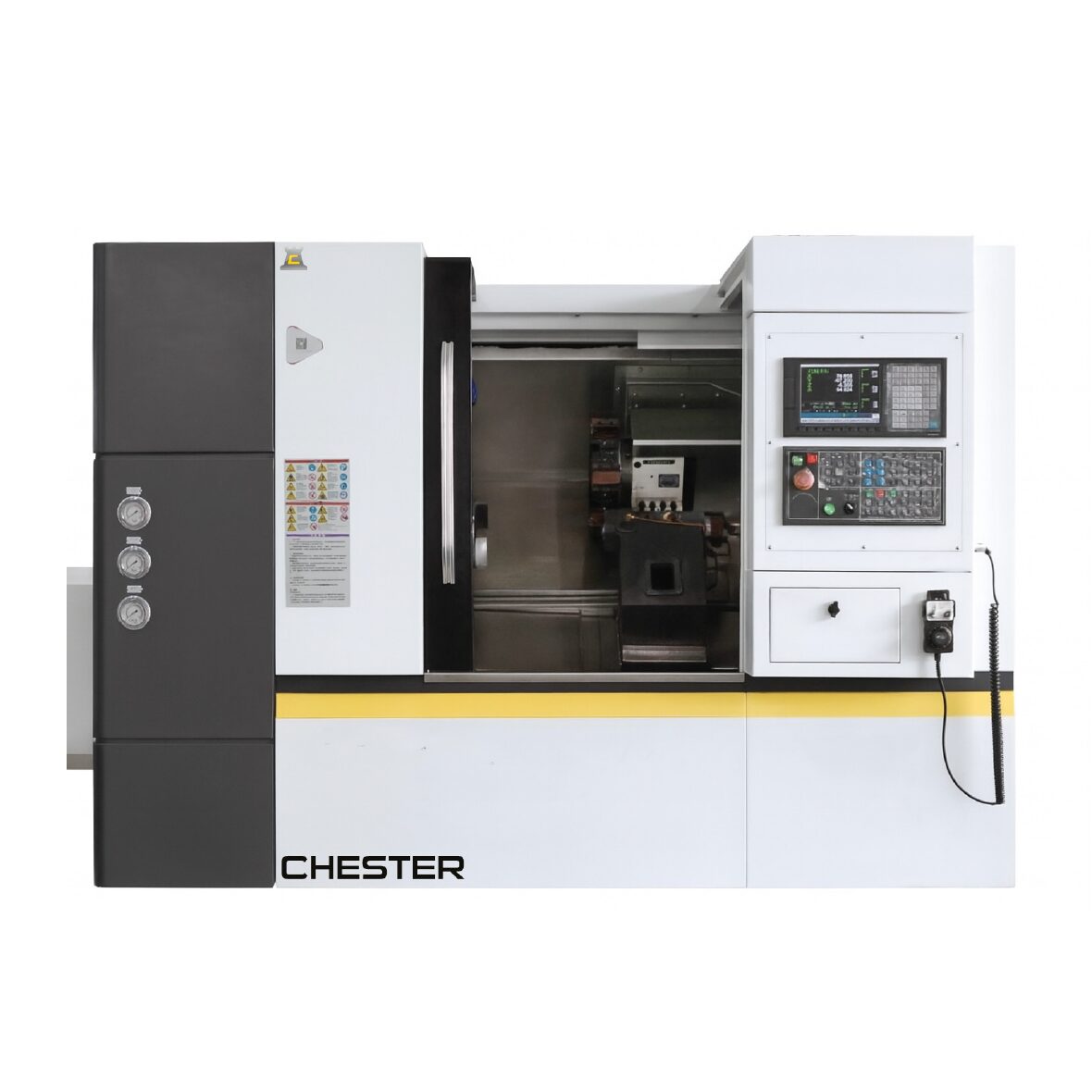

TC200 CNC Lathe

CHESTER CNC LATHE TC200-450×500

Please contact us for more info.

Category: CNC Lathes Tag: machines

Description

Model	TC200-450×500
Capacity
Chuck size	8″
Max. Length of Workpiece	500mm
Max. Swing Dia. over Bed	Φ450mm
Max. Swing Dia. over Side	Φ220mm
Spindle
Spindle Bore	Φ66mm
Max. Dia. of Through-Hole	Φ52mm
Spindle Nose	A2-6
Max. Spindle Speed	4000rpm
Main Servo Motor	7.5/11kW
Axis
X/Z Axis Travel	170/500mm
X/Z Axis Rapid Traverse	20m/min
Turret
Turret Station	8 Piece
Outer Diameter Handle Size	125 x 25mm
Boring Tool Holder Hole Dia.	Φ32mm
Tailstock
Type of Tailstock	Hydraulic
Taper of Tailstock Quill	MT4
Travel of Tailstock Quill	80mm
Travel of Tailstock	100-500mm
Structure
Slant Bed Degree	35
Guideway Type	Linear Motion
Others
Power Capacity	15kva
Overall Dimensions (L x W x H)	2700 x 1750 x 1950mm
Weight	3900kg (approx.)

Standard Accessories

Fanuc 01-MF Plus (3B) CNC System
Linear Guideway
A2-6 Spindle unit
Main Servo motor 7.5/11kW
8″ Hollow Hydraulic Chuck
8-station electric turret with centre height of 80mm
Automatic Lubrication system
MT4 Hydraulic Tailstock
Absolute Encoder for Feeding Axis
Auto Coolant System
Work Lamps
Foundation pads
Tri-color warning light
Tool holder (3 boring tool holder, 1 external tool holder)
High pressure water pump
Chuck jaws
Chip conveyor
CE certification

Optional Accessories

Renishaw Tool setter
DH65 Bar feeder
Oil mist collector
Oil-water separator
