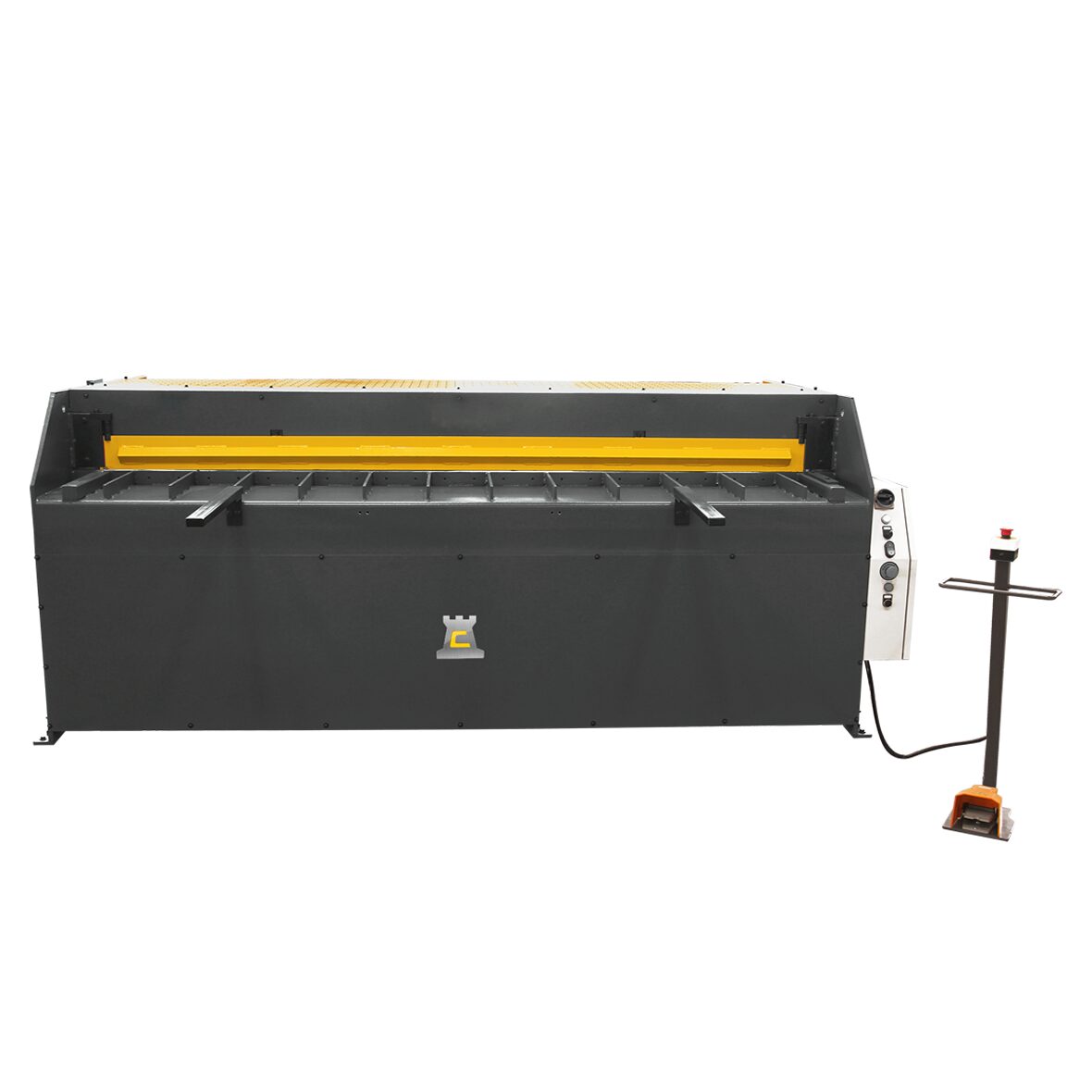

Chester Compact Hydraulic Shears

Please contact us for more info.

Description

Features:

  • Hydraulic drive for smooth and consistent cutting performance
  • All-welded steel plate construction throughout for structural strength and rigidity
  • Adjustable back gauge with graduated scale for accurate, repeatable cuts across the full range
  • Available in two cutting capacities to suit a range of sheet metal applications
Model CHS-2X1320 CHS-1.6X2500
Max. Shearing Thickness (Mild Steel) 2mm 1.6mm
Max. Shearing Length 1320mm 2500mm
Work Table Height 880mm 880mm
Motor Power 2.2kW (2.95hp) 2.2kW (2.95hp)
Back Gauge 800mm 800mm
Dimensions 1900 x 1800 x 1200mm 3000 x 1800 x 1200mm
Net Weight 550kg 1140kg
Click the links below to download the specific documents.
CHS-Shears.pdf
