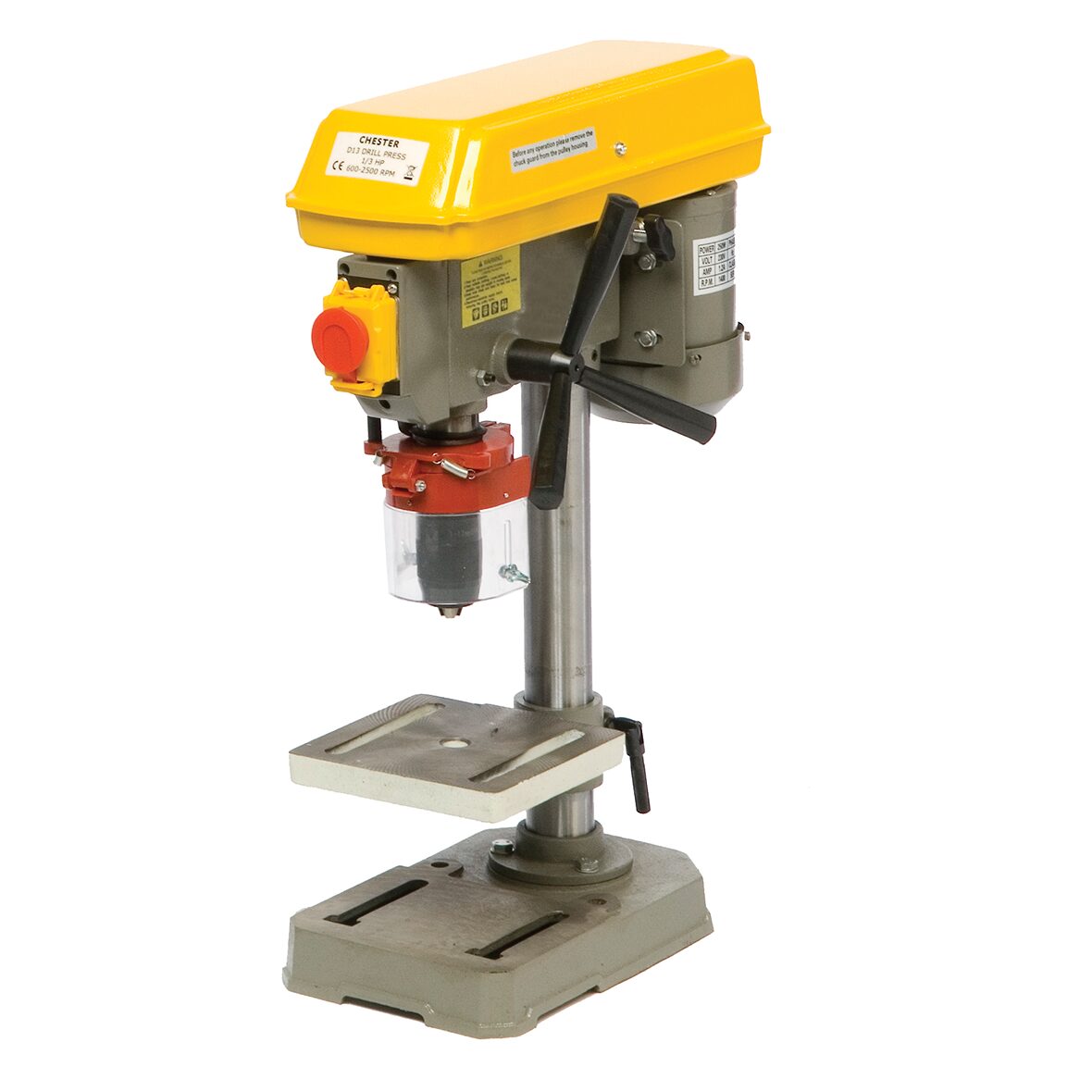

D13 Series Bench Drill | Chester Machine Tools

Description

Our D13 bench drill is ideal for workshops. With 13mm capacity and 45° tilting table.

Drill	D13
Drilling Capacity (Mild Steel)	13mm
Drilling Capacity (Cast Iron)	13mm
Tapping Capacity (Mild Steel)	B16
Tapping Capacity (Cast Iron)	B16
Spindle Taper	B16
Distance from Spindle to Column	105mm
Distance from Spindle to Table(min/max)	30-200mm
Distance from Spindle to Base(min/max)	280mm
Rotation of Table along with column	360°
Tilting Angle of Table	45°-45°
Vertical Travel of Table	170mm
Table Size	165 x 160mm
Number and size of T slots on Table	2/15 x 117mm
Distance between T Slots	112mm
Maximum Spindle Traverse(hand/power)	50mm
Number of Spindle Speeds	5
Range of Spindle Speeds	600-2500rpm
Number of Feed Rates	1
Power Feed Rates	50hz
Base Size Overall	310 x 200mm
Base Working Surface	180 x 140mm
Number and Size of T Slots on Base	2/15 x 84mm
Distance between T Slots	112mm
Column Diameter	46mm
Main Motor Power	0.25kW(0.34hp)
Overall Height	575mm
Net Weight	20kg
Machine Dimensions	310 x 200 x 575mm
