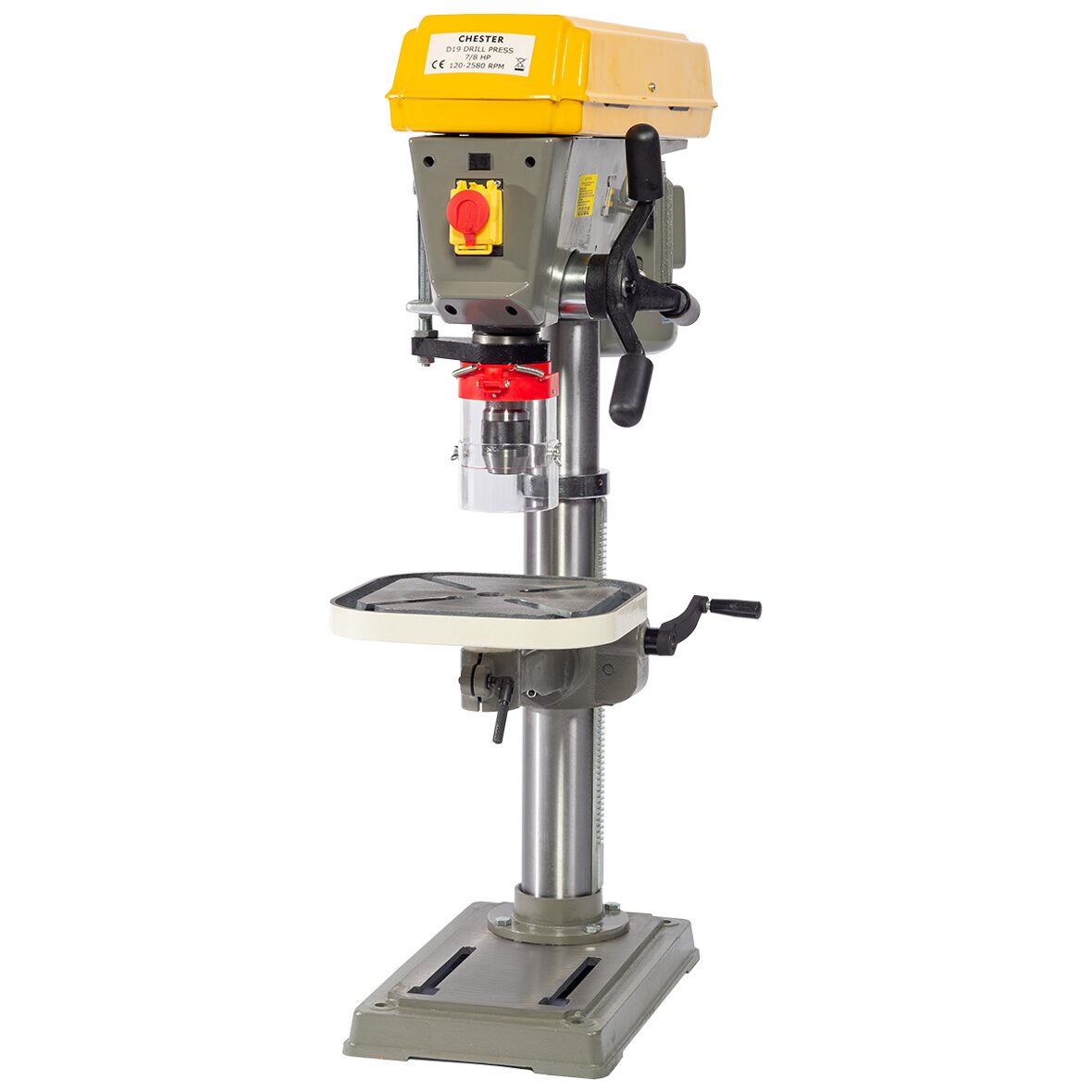

D19 Series Pedestal Drill | Chester Machine Tools

Description

Quality bench and pillar drills, ideal for a range of applications.

Drill	D19
Drilling Capacity (Mild Steel)	19mm
Drilling Capacity (Cast Iron)	19mm
Tapping Capacity (Mild Steel)	MT2
Tapping Capacity (Cast Iron)	MT2
Spindle Taper	MT2
Distance from Spindle to Column	178mm
Distance from Spindle to Table(min/max)	140-450mm
Distance from Spindle to Base(min/max)	610mm
Rotation of Table along with column	360°
Tilting Angle of Table	45°-45°
Vertical Travel of Table	310mm
Table Size	290 x 290mm
Number and size of T slots on Table	4/16.5 x 83.5mm
Distance between T Slots	90°
Maximum Spindle Traverse(hand/power)	80mm
Number of Spindle Speeds	12
Range of Spindle Speeds	120-2580rpm
Number of Feed Rates	1
Power Feed Rates	50hz
Base Size Overall	460 x 275mm
Base Working Surface	200 x 225mm
Number and Size of T Slots on Base	2/15 x 155mm
Distance between T Slots	134mm
Column Diameter	80mm
Main Motor Power	0.65kW(0.87hp)
Overall Height	980mm
Net Weight	71kg
Machine Dimensions	460 x 275 x 980mm
