CHESTER DC-3217-5AX DOUBLE COLUMN MACHINING CENTRE WITH 5 AXIS HEAD

The CHESTER DC-3217-5AX machine gives you large capacity with 5 sided machining of complex parts.

This Double column machine can support up to 10,000kg table load and has a maximum component size of 3200mm in X and 1750mm in the Y Axis.

Please contact us for more info.

Description

The Chester DC-3217-5AX machine comes standard with options, coolant through spindle, Renishaw table and spindle probes, chip conveyors and automatic 5 axis head and tool change.

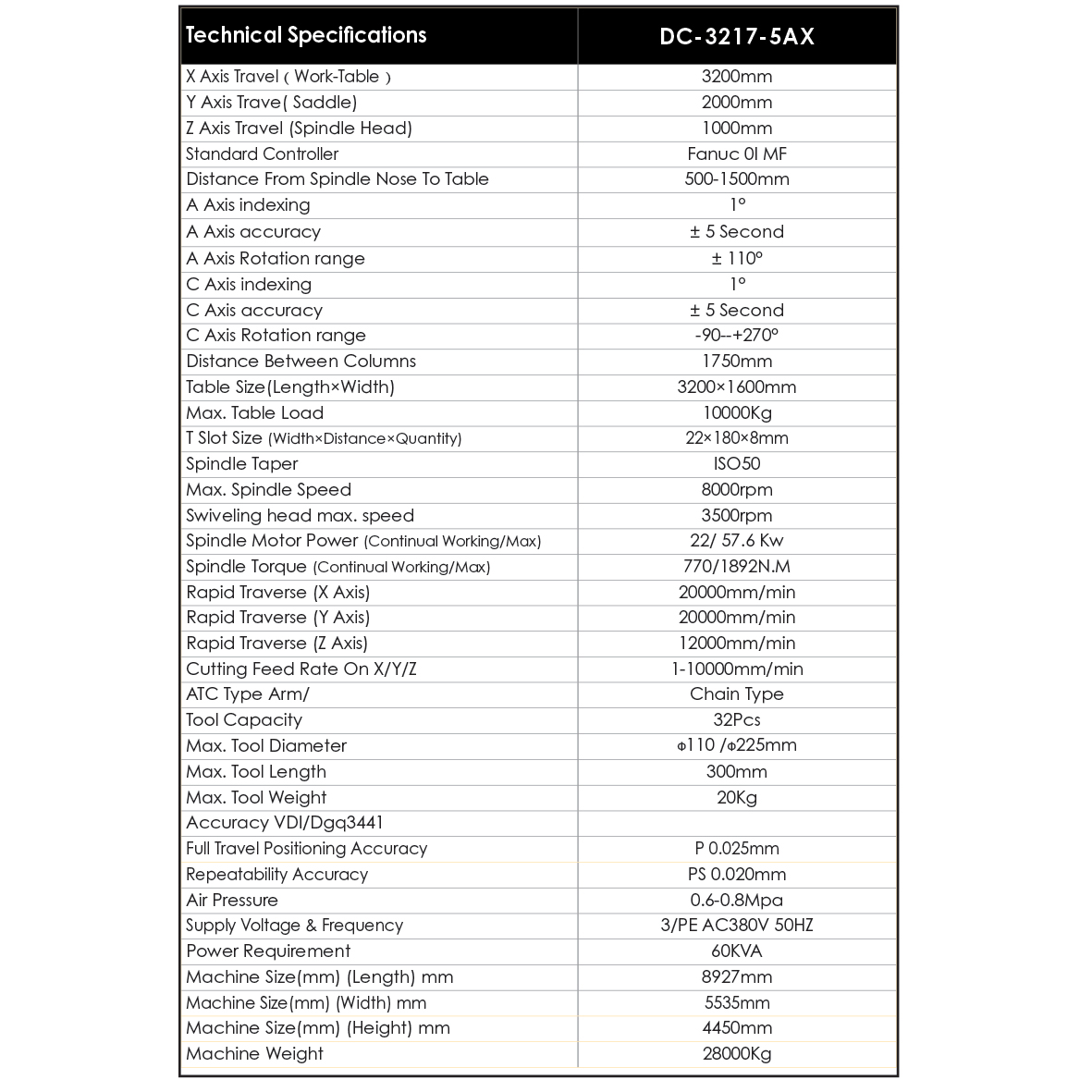

Technical Specifications DC-3217-5AX
X Axis Travel(Work-Table) 3200mm
Y Axis Travel(Saddle) 2000mm
Z Axis Travel(Spindle Head) 1000mm
Standard Controller  Fanuc 0I MF
Distance From Spindle Nose To Table 500-1500mm
A Axis indexing
A Axis accuracy ± 5 Second
A Axis Rotation range ± 110°
C Axis indexing
C Axis accuracy ± 5 Second
C Axis Rotation range -90–+270°
Distance Between Columns 1750mm
Table Size(Length×Width)  3200×1600mm
Max. Table Load 10000Kg
T Slot Size(Width×Distance×Quantity) 22×180×8mm
Spindle Taper ISO50
Max. Spindle Speed 8000rpm
Swiveling head max. speed 3500rpm
Spindle Motor Power(Continual Working/Max) 22/ 57.6 Kw
Spindle Torque (Continual Working/Max) 770/1892N.M
Rapid Traverse(X Axis)  20000mm/min
Rapid Traverse (Y Axis) 20000mm/min
Rapid Traverse(Z Axis) 12000mm/min
Cutting Feed Rate On X/Y/Z 1-10000mm/min
ATC Type Arm/ Chain Type
Tool Capacity 32Pcs
Max. Tool Diameter Φ110 /Φ225mm
Max. Tool Length 300mm
Max. Tool Weight 20Kg
Accuracy VDI/Dgq3441
Full Travel Positioning Accuracy P 0.025mm
Repeatability Accuracy PS 0.020mm
Air Pressure 0.6-0.8Mpa
Supply Voltage & Frequency 3/PE AC380V 50HZ
Power Requirement 60KVA
Machine Size(mm) (Length) mm 8927mm
Machine Size(mm) (Width) mm 5535mm
Machine Size(mm) (Height) mm 4450mm
Machine Weight 28000Kg



STANDARD ACCESSORIES

• Z axis Travel Change Into 1000mm (Including Column Integrated Raise 200Mm)

• Column Separated Raise  Block 300mm

• Full Enclosed Guard With Top And Multi Layer Doors

• CTS System(GTP Gear Box) 20Bar(With Separated Unit)

• Chain Type ATV 32T(With Pneumatic System)

• Spindle 8000rpm

• NC4 Probe

• RMP60 Probe

• Isolated Transformer

• High And Low Power Separated Electric Cabinet

• Rigid Tapping

• Heat Exchanger For Electric Cabinet

• Spindle Air Sealing

• Machining Air Blowing Device

• Working Area Light

• 3 Color Indication Light

• Spindle Chiller

• Portable Mpg

• Coolant System

• Lubrication Unit

• Pneumatic Unit

• Air Gun Flushing Function

• Water Gun Flushing Function

• Tool Kit

• Automatic Power Off

• Chain Type Chip Conveyor

• Coil Type Chip Conveyor

• Adjustable Level Bolts And Foundation Blocks

• Operation Manual

• Safety Door Interlock

• Tool Release Pedal Switch

• Swivel Type Operation Box



OPTIONAL ACCESSORIES

Coolant through spindle

 Renishaw table and spindle probes

 Chip conveyors

 Automatic 5 axis head and tool change

Click the links below to download the specific documents.
Chester-Machine-Tools-Double-Column-Machining-Centre-with-5-Axis-Head-•-DC-3217-5AX.pdf
