BES Shears

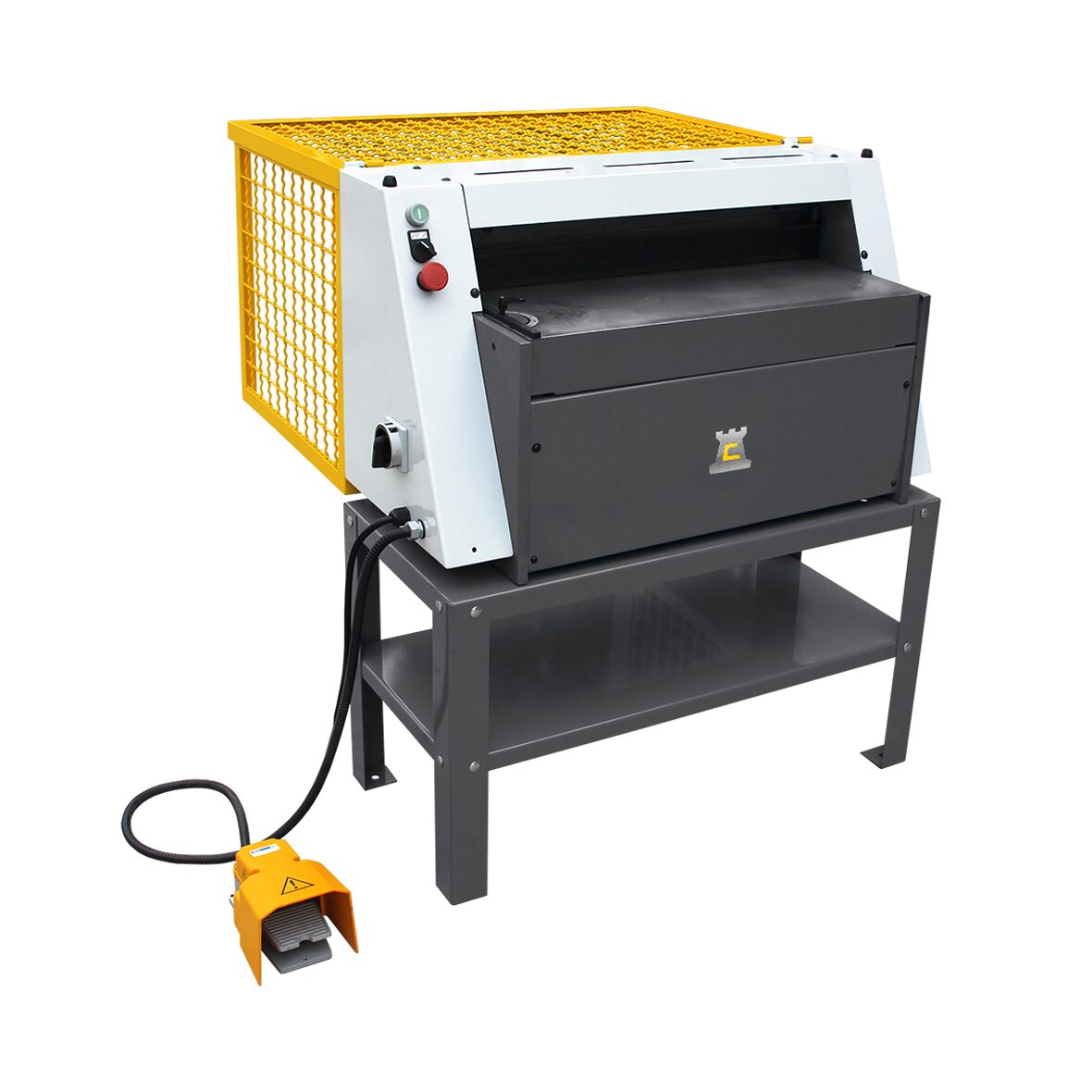

Chester Electric Bench Top Shear with Stand

Please contact us for more info.

Categories: Fabrication Machines, Shearing Tags: machines, shearing machine

Description

Features:

Rigid all-welded steel frame for reliable, long-lasting performance
Smooth electric drive with selectable single or continuous shearing modes
Foot pedal operation with automatic power-off brake for safe, hands-free use
Adjustable back gauge with graduated scale for consistent, repeatable cuts

Model	BES-1.25×650	BES-1×1050
Bed Width	650mm	1050mm
Max. Shearing Thickness	1.25mm	1mm
Back Gauge Range	0-500mm	0-500mm
Motor	0.75kW (1hp)	0.75kW (1hp)
Dimensions	1000 x 1150 x 1200mm	1300 x 1150 x 1200mm
Net Weight	185kg	238kg
