Electric Shearing Machine

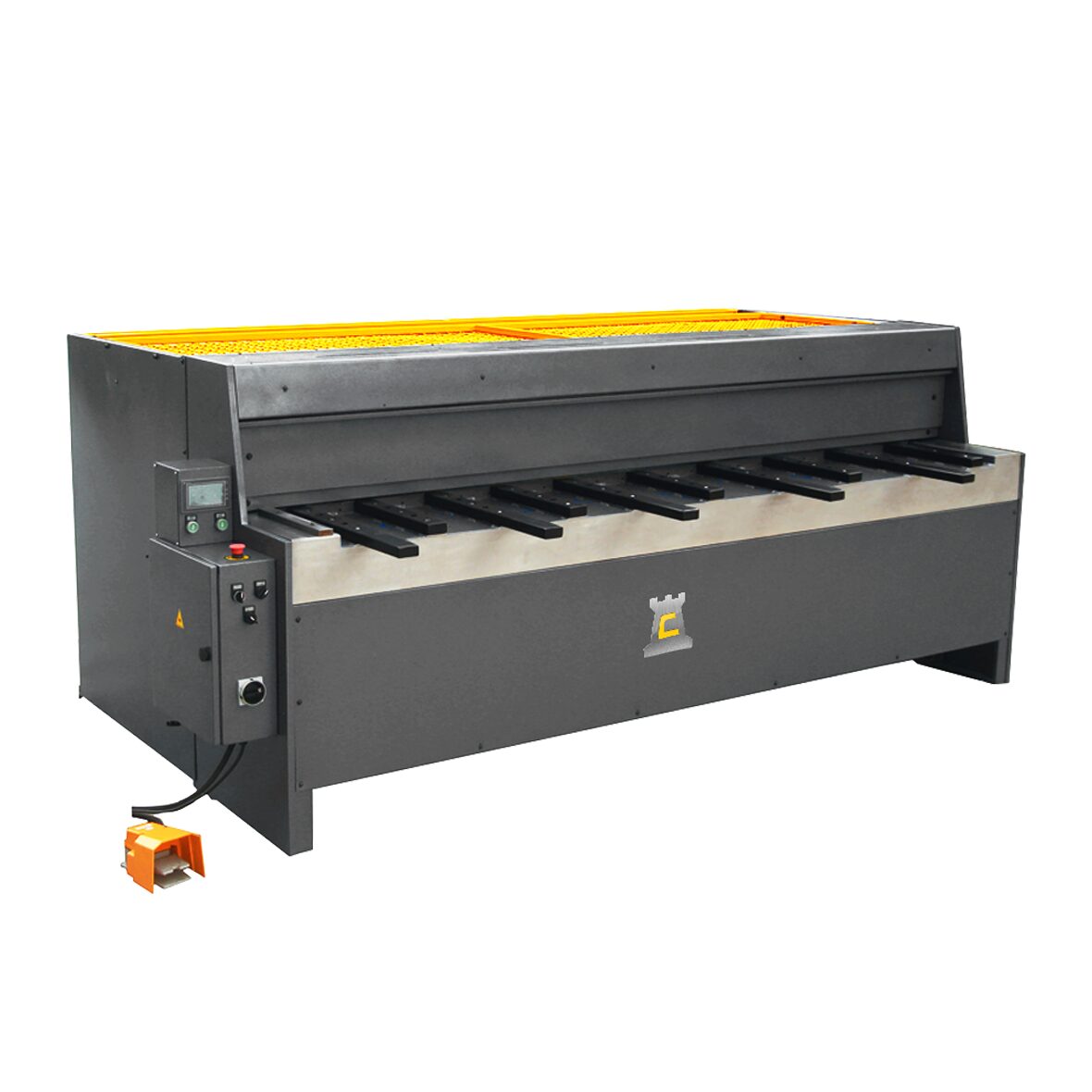

Chester Electric Shearing Machine with Motorised Back Gauge & PLC Control

Please contact us for more info.

Categories: Fabrication Machines, Shearing Tags: machines, shearing machine

Description

Features:

NC motorised back gauge for fast, accurate cut-width setting
PLC control with single-stroke and continuous modes
Integrated stroke counter for cycle tracking
Pneumatic sheet support for long workpiece handling
Fully guarded welded steel construction

Model	ES-2x2550NC	ES-4x1300NC	ES-4x2550NC
Max. Shearing Thickness	2mm	4mm	4mm
Max. Shearing Width	2550mm	1300mm	2550mm
Shearing Angle	1.6°	2.4°	1.8°
No. of Stroke	30/min	30/min	30/min
Motor Power	4kW (5.36hp)	4kW (5.36hp)	7.5kW (10.05hp)
Back Gauge	630mm	630mm	630mm
Dimensions	3000 x 1800 x 1300mm	1800 x 1800 x 1300mm	3100 x 1800 x 1300mm
Net Weight	1900kg	1355kg	2500kg
