Electric Shearing Machine

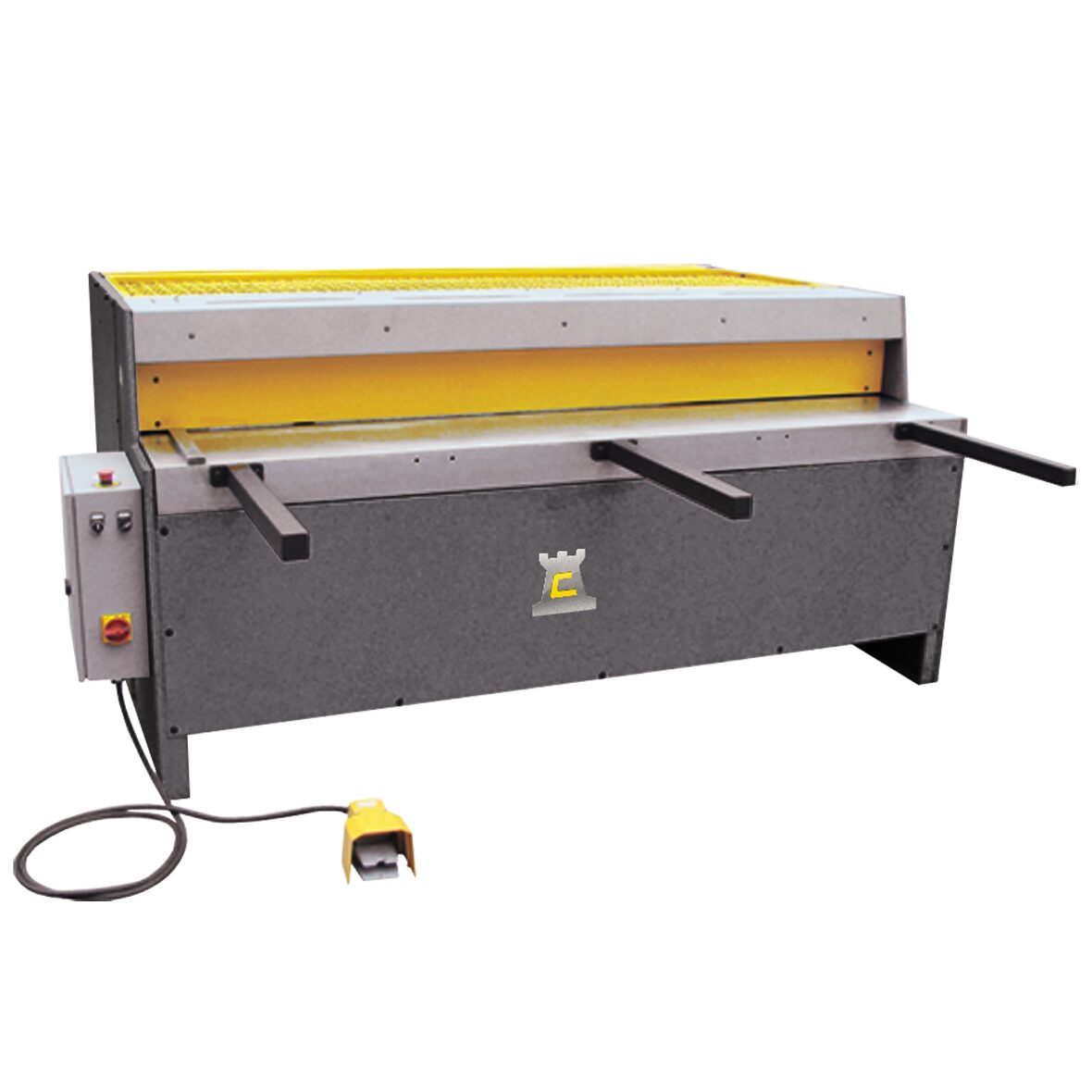

CHESTER Electric Shearing Machines

Highly suited to education and vocational training / small workshops and toolroom

Please contact us for more info.

Categories: Fabrication Machines, Shearing Tags: CHESTER ES4 x 1250 SHEARING MACHINE, machines

Description

Precision shearing machines with bench angle-stop and manual back gauge.

Features:

Spring-loaded sheet holders secure the workpiece firmly throughout every cut
Cutting line light for accurate workpiece positioning before every stroke
Selectable single-stroke and continuous operation with automatic cycle counter
Welded steel construction throughout with full safety guarding as standard

Model	ES-2×2050	ES-3×1250	ES-4×1250
Max. Shearing Thickness	2mm	3mm	4mm
Max. Shearing Width	2050mm	1250mm	1250mm
Shearing Angle	2°	2°	2.4°
No. of Strokes per Minute	30/min	28/min	30/min
Motor Power	3kW (4.02hp)	3kW (4.02hp)	4kW (5.36hp)
Back Gauge	630mm	635mm	630mm
Dimensions	2500 x 1200 x 1400mm	1700 x 1200 x 1200mm	1700 x 1200 x 1200mm
Net Weight	1360kg	980kg	1185kg
