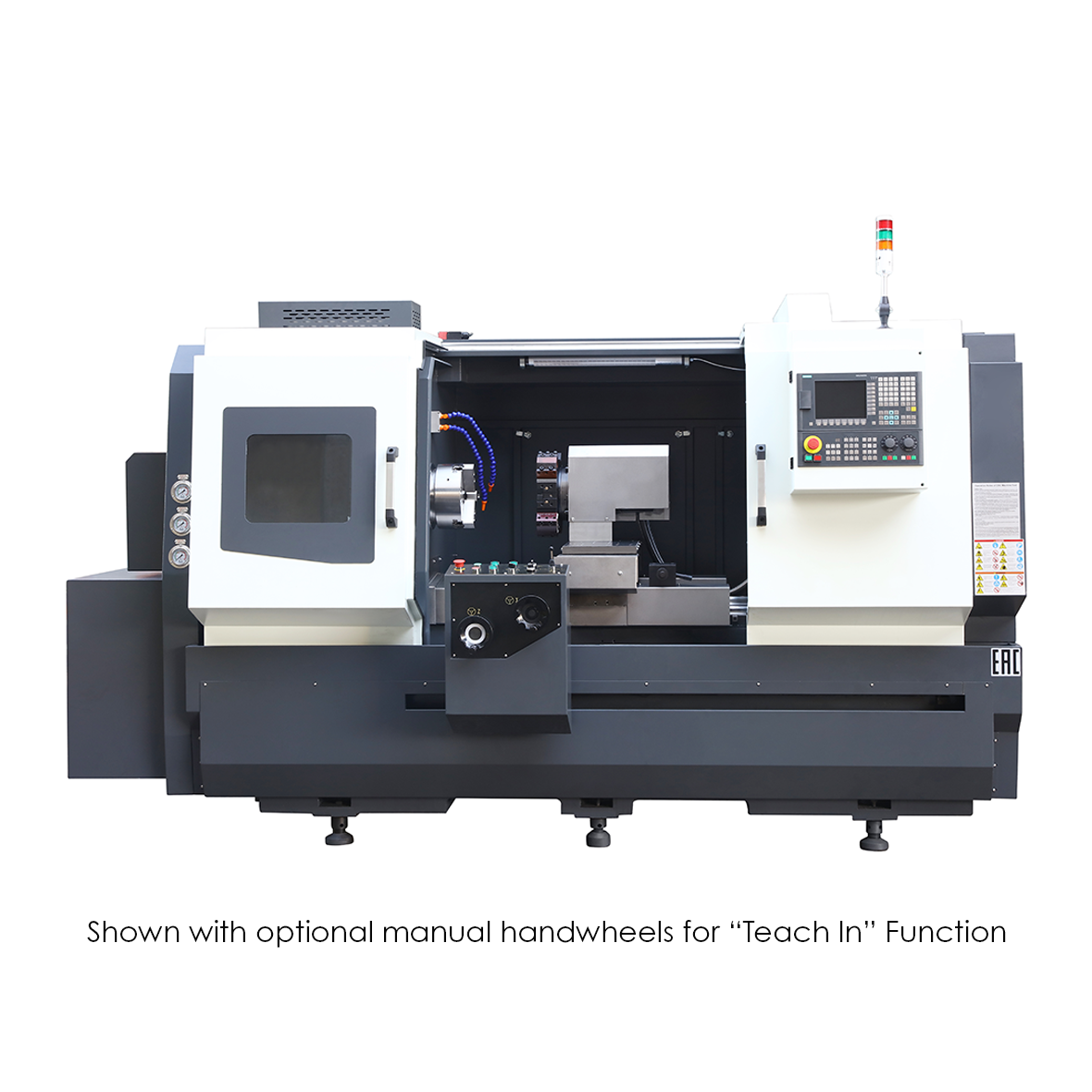

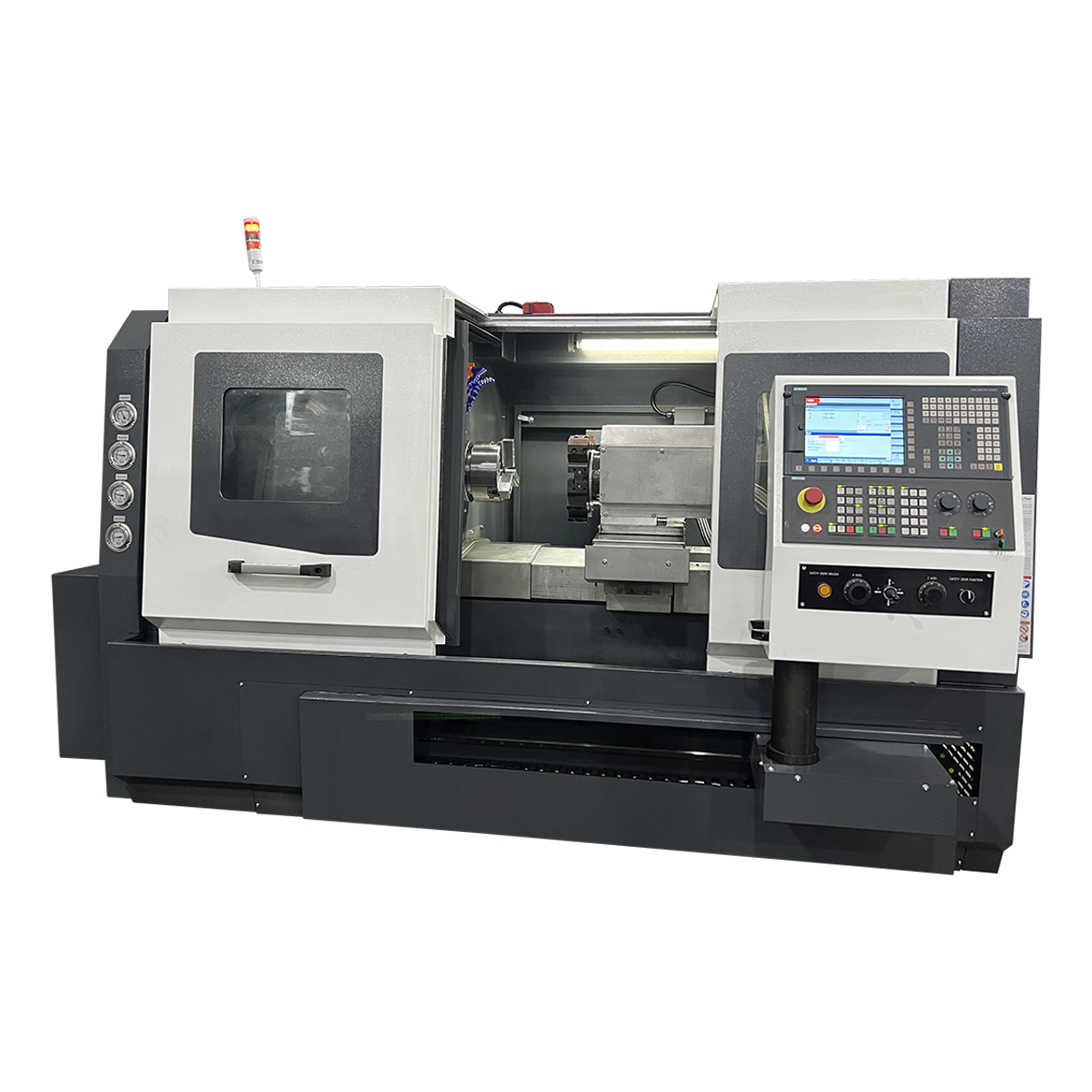

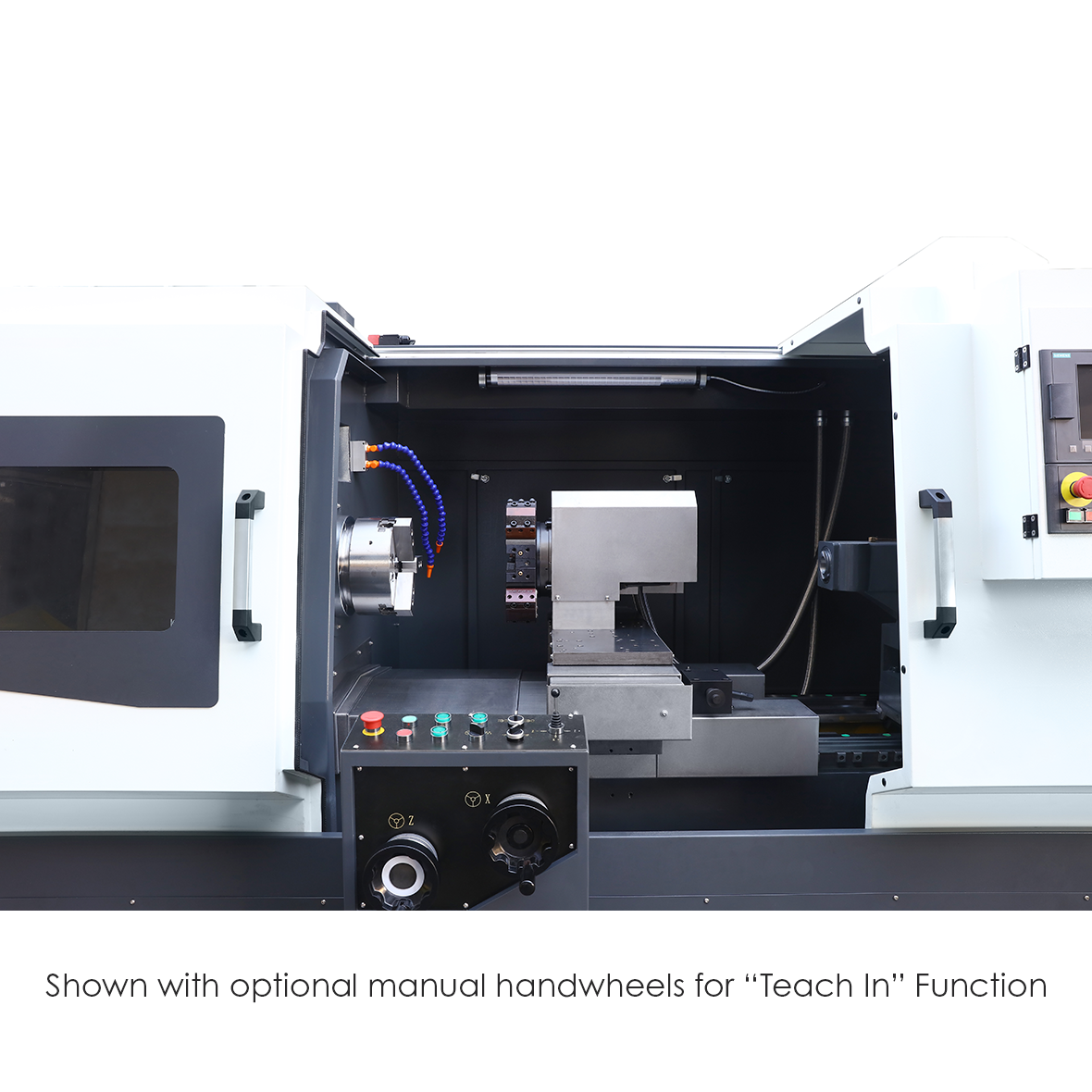

Falcon Duo CNC Flat Bed Lathes | Chester Machine Tools

Description

Precision Flatbed CNC Lathes, ideal for education and entry level.

Technical Specifications	Falcon Duo 300	Falcon Duo 320	Falcon Duo 400
Chuck size	6″	6″	8″
Max.Swing Dia. over Bed	Ф300mm	Ф400mm	Ф400mm
Max.Length of Workpiece	180mm	Collet:380mm Chuck:320mm 300mm (8station turret) (opt)	650mm(C2C) 500mm(Chuck) 450mm(turret) (opt)
Max.Swing Dia. over Slide	Ф135mm	Ф140mm	Ф250mm
Spindle
Spindle Bore	Ф48mm / Ф55mm	Ф55mm / Ф62mm (opt)	Ф62mm
Max Dia. of Through Hole	Ф40mm / Ф46mm	Ф46mm / Ф52mm (opt)	Ф52mm
Spindle Nose	A2-5 / A2-5	A2-5 / A2-6 (opt)	A2-6
Spindle Speed	3000rpm (std) 4500rpm (opt) / 2500rpm (std) 4500rpm (opt) 5000rpm (opt)	2500rpm (std) 4500rpm (opt) 5000rpm (opt) / 2000rpm (opt) 4000rpm (opt)	2000rpm (std) 4000rpm (opt)
Main Motor Power	3.7/5.5kw (std) 5.5/7.5kw (opt)	3.7/5.5kw (std) 5.5/7.5kw (opt)	5.5/7.5kw (std) 7.5/11kw (opt)
Axis
X/Z Travel	300/200mm	280/380mm	280/650mm
X/Z Rapid Traverse	15/15mm/min (std), 25/25mm/min (opt)	25/15mm/min (std), 25/25mm/min (opt)	15/15mm/min (std), 20/20mm/min (opt)
Toolpost
Type	4-station toolpost	4-station toolpost	4-station toolpost
Tailstock
Type	Manual	Manual	Manual
Taper of Quill	MT4	MT4	MT4
Travel of Tailstock Quill	80mm	80mm	100mm
Structure
Guideway	Linear Guide Way	Linear Guide Way	Linear Guide Way
Bed Width	300mm	400mm	405mm
Weight and Dimensions
Power	9Kva	13Kva	13Kva
Dimensions	1800x1580x1600mm	2200x1500x1600mm	2500x1400x1500mm
Weight	1800kgs	2400kgs	2800kgs

Technical Specifications	Falcon Duo 500	Falcon Duo 550	Falcon Duo 700
Chuck size	10″	12″	15″
Max.Swing Dia. over Bed	Ф500mm	Ф550mm	Ф700mm
Max.Length of Workpiece	700/1000/1500/2000mm(C2C) 550/850/1350/1850mm(Chuck) 450/750/1250/1750mm(turret) (opt)	700/1000/1500/2000mm(C2C) 550/850/1350/1850mm(Chuck) 450/750/1250/1750mm(turret) (opt)	1000/1500/2000mm(C2C) 800/1300/1800mm(Chuck) 700/1200/1700mm(turret) (opt)
Max.Swing Dia. over Slide	Ф350mm	Ф350mm	Ф480mm
Spindle
Spindle Bore	Ф81mm / Ф62mm (opt)	Ф105mm / Ф105mm (opt) / Ф120mm (opt)	Ф120mm
Max Dia. of Through Hole	Ф70mm / Ф52mm (opt)	Ф91mm / Ф91mm (opt) / Ф110mm (opt)	Ф110mm
Spindle Nose	A2-8 / A2-6 (opt)	A2-11 / A2-8 (opt) / A2-11 (opt)	A2-11
Spindle Speed	1600rpm (std) 2500rpm (opt) / 2000rpm (opt) 4000rpm (opt)	1000rpm (std) / 2000rpm (opt) / 1000rpm (opt)	1000rpm (std)
Main Motor Power	7.5/11kw (std) 11/15kw (opt) 15/18.5kw (opt)	11/15kw (std) 15/18.5kw (opt)	11/15kw (std) 15/18.5kw (opt)
Axis
X/Z Travel	280/700mm,1000mm,1500mm,2000mm	280/700mm,1000mm,1500mm,2000mm	370/1000mm,1500mm,2000mm
X/Z Rapid Traverse	15/15mm/min (std), 20/20mm/min (opt)	15/15mm/min (std), 20/20mm/min (opt)	15/15mm/min (std), 20/20mm/min (opt)
Toolpost
Type	4-station toolpost	4-station toolpost	4-station toolpost
Tailstock
Type	Manual	Manual	Manual
Taper of Quill	MT5	MT5	MT5
Travel of Tailstock Quill	100mm	100mm	100mm
Structure
Guideway	Linear Guide Way	Linear Guide Way	Linear Guide Way
Bed Width	500mm	500mm	680mm
Weight and Dimensions
Power	15Kva	18Kva	18Kva
Dimensions	3200x1600x2010/2310/2810/3310mm	3200x1600x2010/2310/2810/3310mm	3400x1900x2010/2310/2810/3310mm
Weight	4000kgs/4300kgs/4800kgs/5300kgs	4200kgs/4500kgs/5000kgs/5300kgs	4800kgs/5600kgs/6400kgs
