Description

High performance CNC Lathe with one piece compact structure and belt drive spindle.

Model	HAWK TC-200M
Processing Range
Max. Swing Over Bed	Ф550mm
Max. Swing Over Saddle	Ф330mm
Max Turning Diameter	Ф290mm
Max. Turning Length	325mm
Max. Bar Capacity	Ф44mm
Spindle
Max. Spindle Speed	5000rpm
Spindle Nose	A2-6
Spindle Bore	Φ56mm
Spindle Taper	Morse 6#
Height from Spindle Centre to Ground	1000mm
Axis X/Z
Travel X/Z	240-430mm
Rapid Travel Speed X/Z	24/30m/min
X axis Ball screw Dia/Pitch	Φ32/8mm
Z axis Ball screw Dia/Pitch	Φ32/10mm

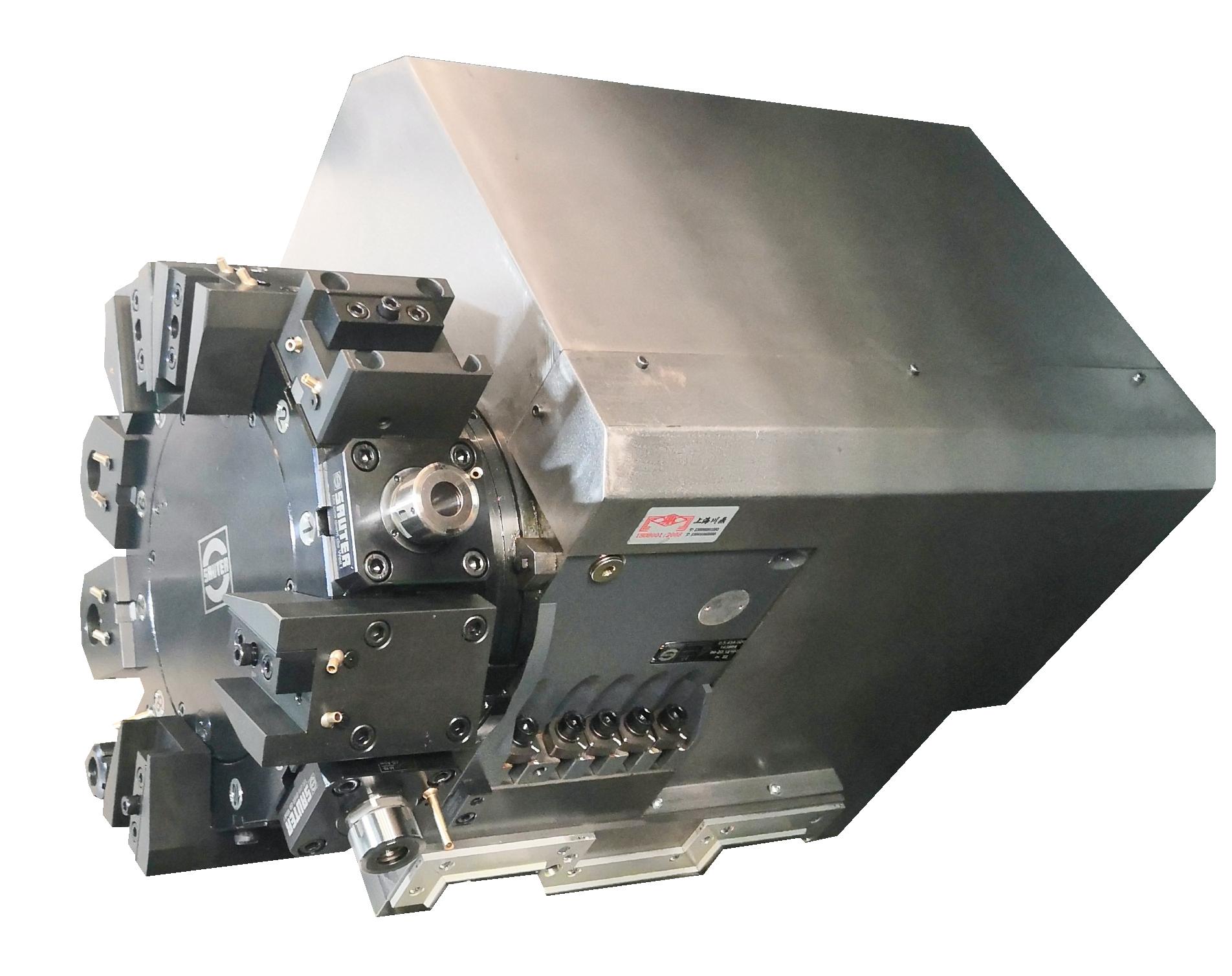

Hydraulic Turret
Tool Position	12mm (VDI 30)
Max. Live Tool Speed	5000rpm
Turning Tool Shank Size	20 x 20mm
Max Boring Tool Holder	Φ25mm
Max. Drilling Capacity	Φ14×0.15mm
Max. Tapping Capacity	M10×1.5/M24×1
Max. Milling Capacity	Φ20×10×40mm
Machining Accuracy
Positioning Accuracy X/Z /C	0.006/0.006/51”mm
Repeatability X/Z/C	0.004/0.004/20”mm
Other
Power Capacity	25Kva
Spindle Motor Power	7.5/11kw
Machine Dimension (LxWxH)	3660 × 1790 × 1820mm
Net Weight	3500Kg
