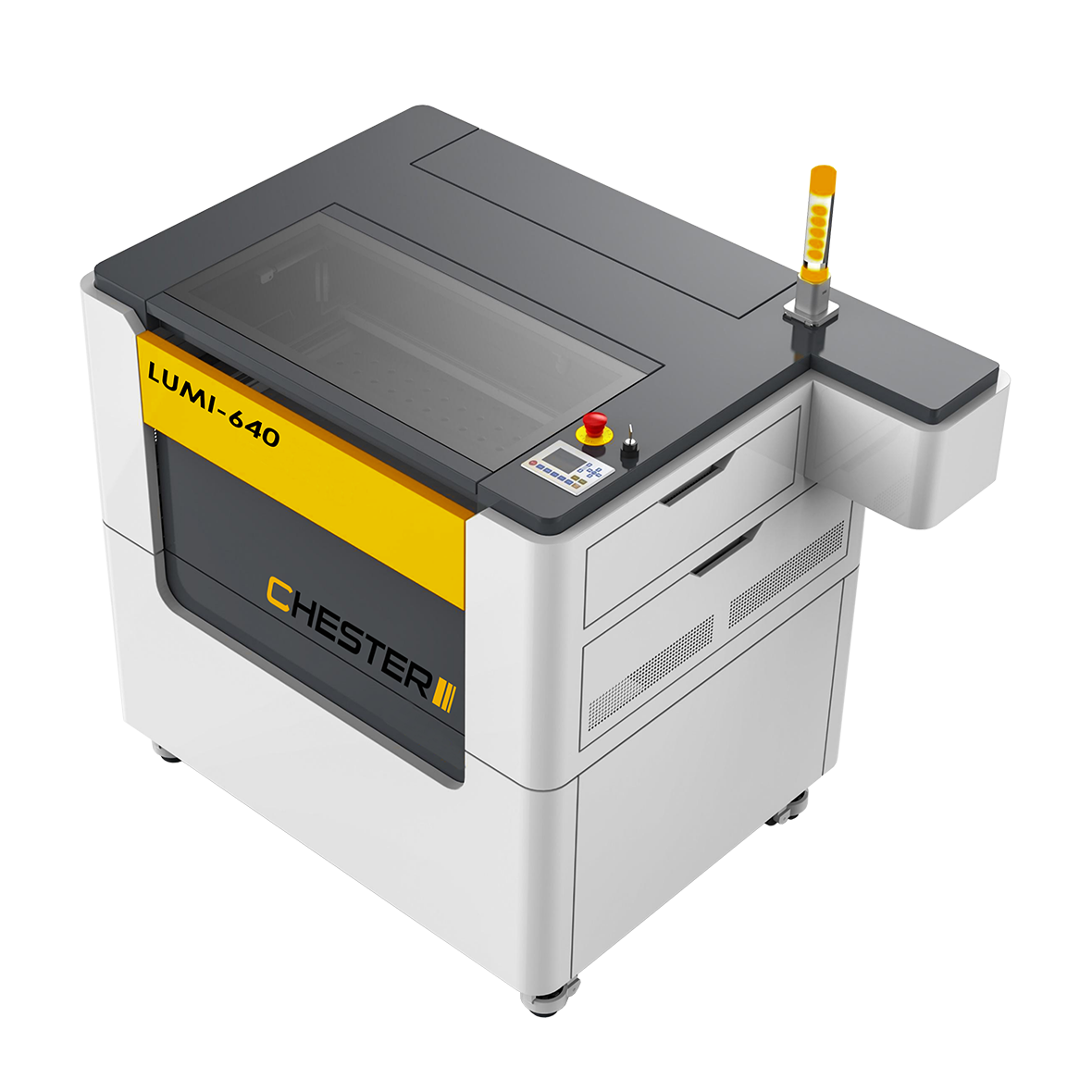

CHESTER LUMI 640

Description

Laser cutting machine designed for use in Educational establishments.

All our Laser machines have a high level of safety built in. The robust high speed motor will work at a speed up to 1000mm/s whilst producing very low sound levels and vibraton.

To allow for the production of long workpieces the back door has been designed for ease of access.

Material can be accommodated easily and quickly without restrictions.

All our laser machines have autofocus including red dot positioning. This enables the operator to setup workpieces accurately before processing. Real-time red-dot positioning provides for time saving setup and production.

Model	640
Laser Type	Sealed carbon dioxide glass laser tube
Laser Power	60-80W
Work Area	600 x 400mm

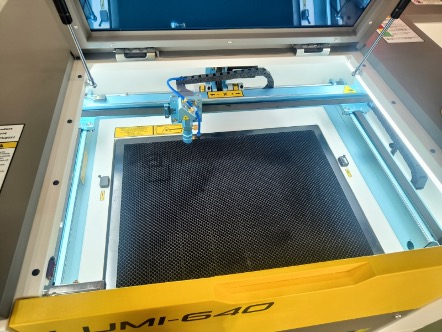

Processing Platform	Honeycomb platform + Aluminium knife platform
Platform Lifting	Yes
Platform Lifting Height	155mm
Maximum Cutting Thickness	20mm (Acrylic)
Maximum Working Speed	1000mm/s
Positioning Accuracy	0.01mm
Lifting Stroke of Laser Head	N/A
Material Thickness	150mm
Resolution (DPI)	Up to 1000DPI (standard head)
Focus Mode	Auto focus, Manual focus
Power Off Continued Carving	Supported
Motion Control System	High-speed stepper motor + closed loop motor
Exhaust System	Industrial grade air pump + Exhaust fan + 5M exhaust duct
Cooling System	Industrial grade water cooling system integrated
Connection Method	Support USB, Network cable and WIFI connection
Support Formats	Bitmap format JPG, PHG, BPM, Vector format LCP, DXF, PLT, SVG
Power Supply Voltage	220V
CNC Software System	LightMaker or Lightburn (pc), LightMaker (mobile)
Machine Working Noise	<60db
Processing Technology	Cutting, tracing, shallow carving, deep carving
Operate Control Method	5inch LCD touch screen/Mobile phone app/PC software
Device Internal Storage	256MB
Machine Size	1160 x 950 x 1180mm
Machine Weight	~300KG
