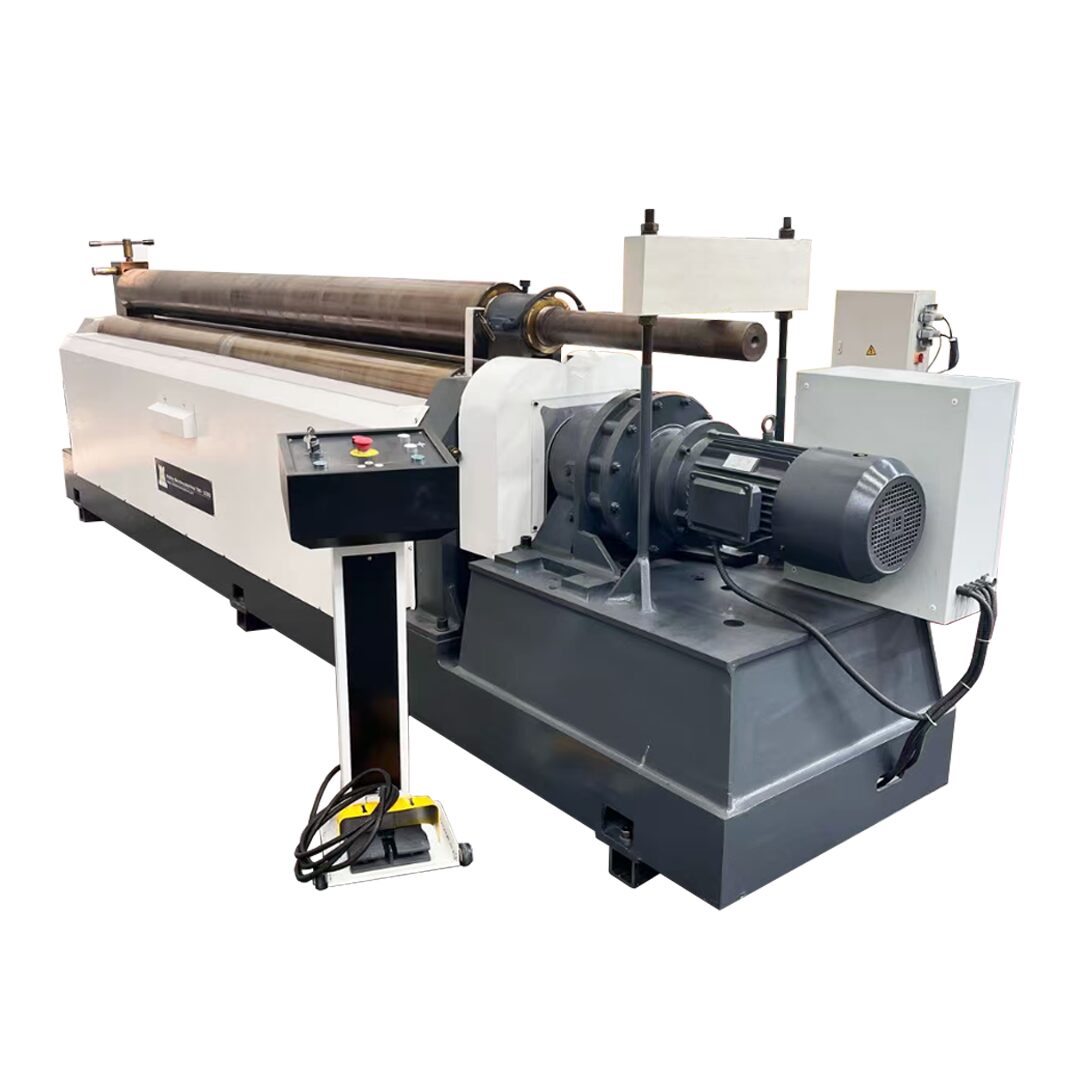

CHESTER MECHANICAL 3 ROLLER PLATE BENDER PR-8X2000

Description

Our 3-Roller Symmetrical Rolling Machine is ideal for bending round tubes, curved parts, and conical tubes.

Type	3 Roller Symmetrical
For Steel Strength	245MPa
Maximum Width	2000mm
Roller Length	2000mm
Maximum Roller Thickness	8mm
Minimum Rolling Diameter under Full Load	T8 x B200 x Φ500mm (MS, σs≤ 245MPa)
Top Roller Diameter	Φ190mm
Bottom Roller Diameter	Φ170mm
Rolling Speed	4.5m/min
Distance between Roller Centres	260mm
Main Motor Power	5.5kW
Overall Dimensions	3700 x 1000 x 1300mm
Machine Weight	3300kg
