Techmaster 5AX
Techmaster

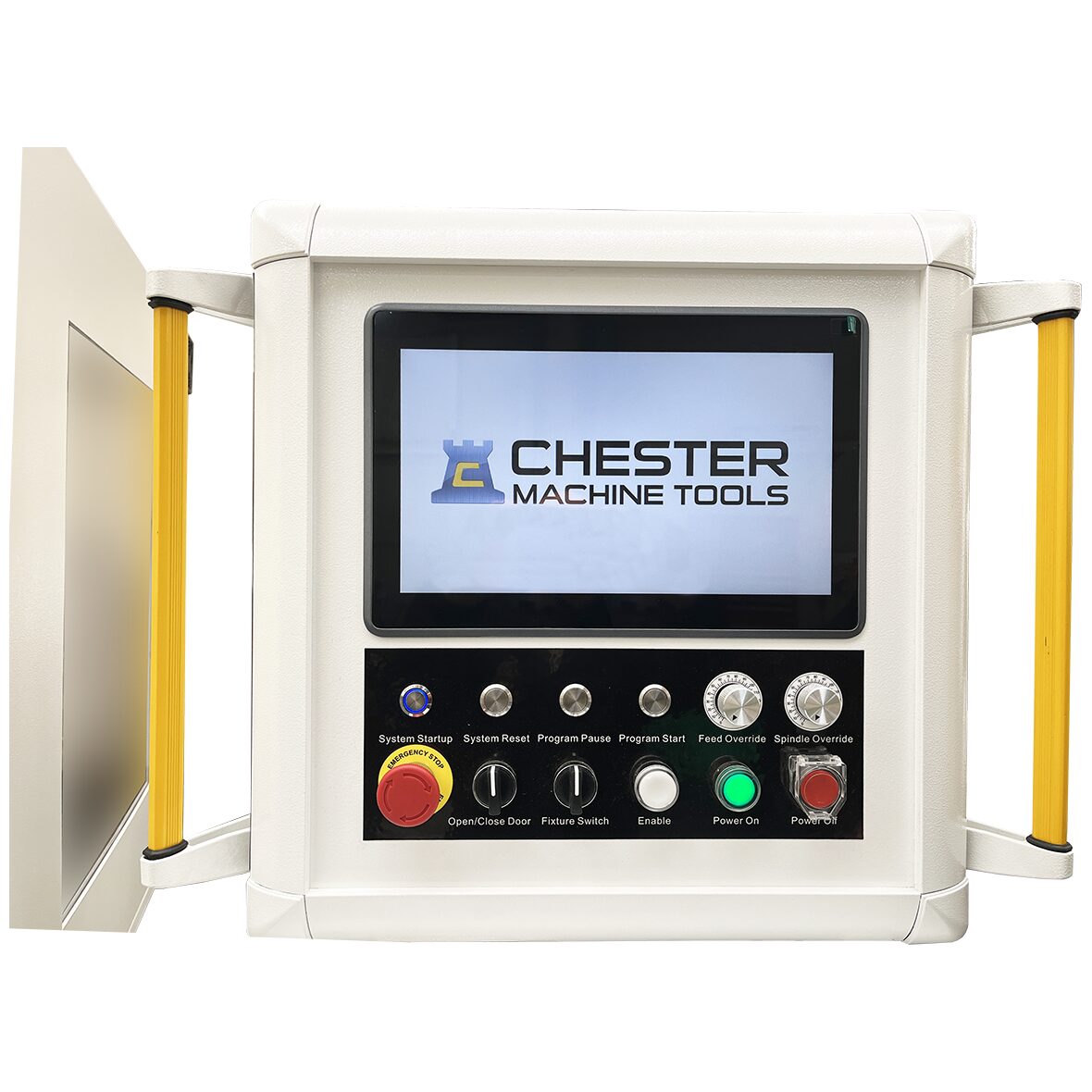

Techmaster Control Panel

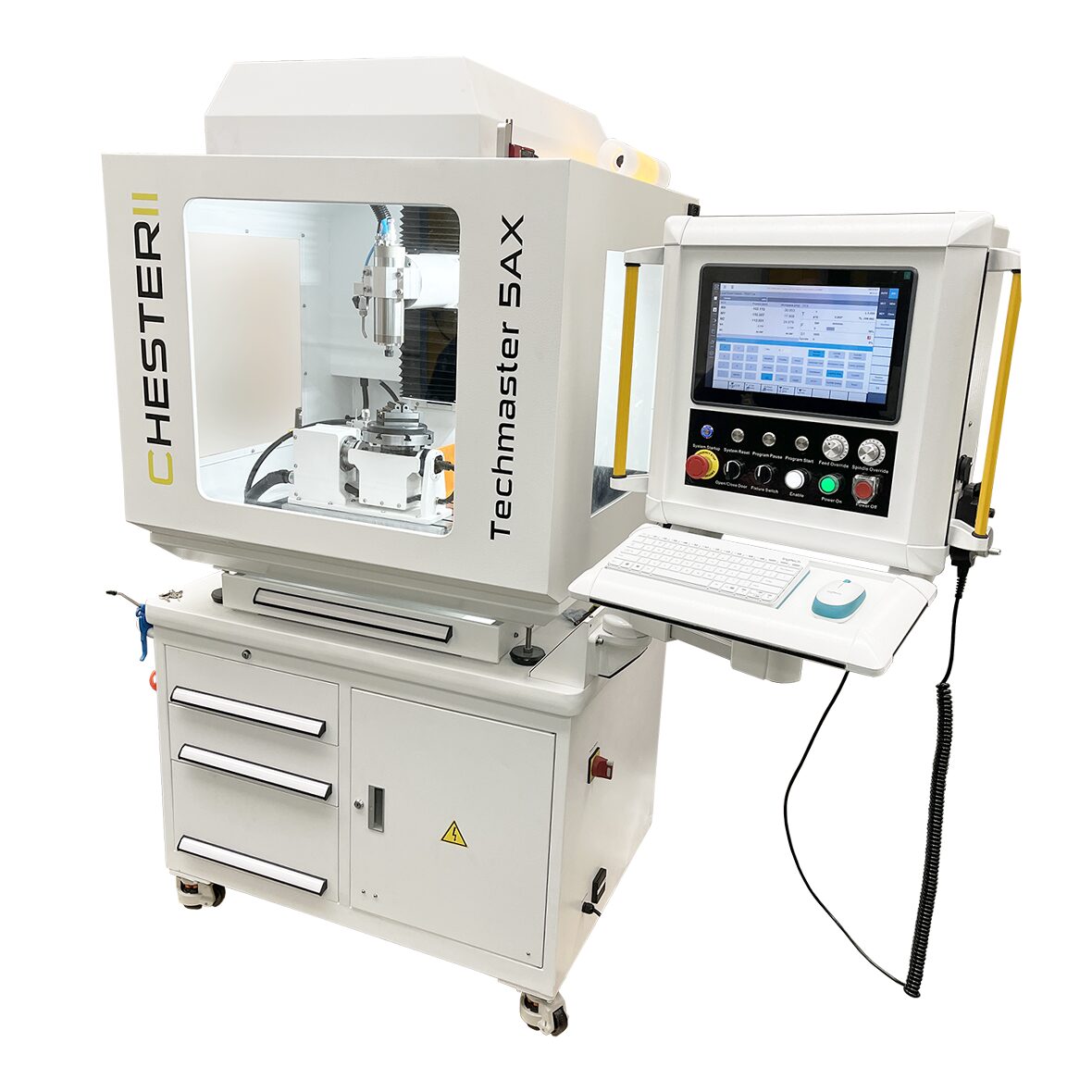

CHESTER Techmaster 5AX Vertical Machining Center

Ideal for education and workshop training.

Please contact us for more info.

Categories: , , Tags: , , , ,

Description

Precision 5 Axis CNC system with 3D Tool Path simulation and RTCP function for workpieces.

  • Support 5 Axis linkage interpolation
  • Support RTCP function and 3+2 function
  • Support absolute valve encoder function (without installing origin switch)
  • Support encoder feedback and grating ruler feedback
  • Compensation for pitch error
  • Add dual speed forward button
  • Support stl 3D graphic processing preview
  • Support the function of cutting off, power-off, and continuous connection as well as skip segment processing
  • Directly compatible with processing programs from SIEMENS, HEIDENHAIN, FANUC, SYNTEC, GSK and HNC system
Model Techmaster 5AX
Control System Chester 5AX
Rotary Table Size 160mm
Worktable Load 10kg
X Axis Travel 240mm
Y Axis Travel 220mm
Z Axis Travel 280mm
A Swing Angle 30°~ +110°
C Swing Angle 360°
Rapid Speed
X/Y/Z Straight Fast Feed 5000mm/min
A Swing Speed 20rpm
C Swing Speed 20rpm
Spindle
Spindle Taper ER11
Spindle Speed 24000r/min
Spindle Power 0.8Kw
Accuracy
X/Y/Z Positioning Accuracy ≤0.015mm
A/C Positioning Accuracy ≤30arcsec
X/Y/Z Repeatability Accuracy ≤0.015mm
A/C Repeatability Accuracy ≤20arcsec
Others
Voltage Single Phase 220v
Total Power 3.6Kw
Machine Dimensions 1600 x 960 x 2000mm
Weight 400kg

Standard Accessories

  • Chester 5AX Control System
  • Electronic Hand Wheel (MPG)
  • Rotary Table
  • Collet Set
  • Wrench Set
  • Manual
