The ideal CNC Milling Machine with combined turning and milling functions for all your machining needs.
• Integrated production centre
• Smart & integrated design
• Superb cost performance ratio
• One process loading
• Multi-face machining
• Intensive & Composite machining
• High precision & High efficiency

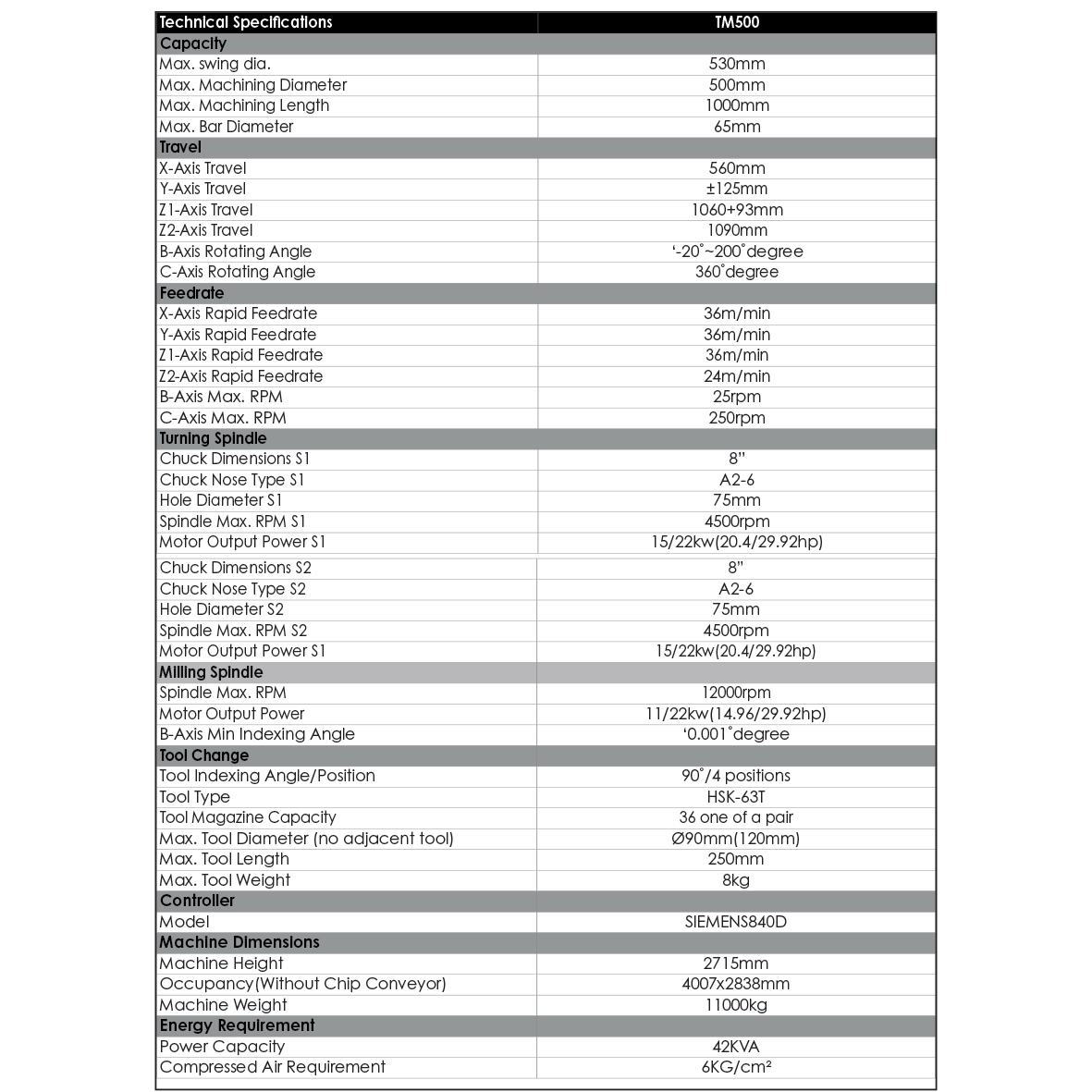

| Technical Specifications | TM500 |
| Capacity | |
| Max. swing dia. | 530mm |
| Max. Machining Diameter | 500mm |
| Max. Machining Length | 500mm |
| Max. Bar Diameter | 65mm |
| Travel | |
| X-Axis Travel | 560mm |
| Y-Axis Travel | ±125mm |
| Z1-Axis Travel | 560+93mm |
| B-Axis Rotating Angle | ‘-20˚~200˚degree |
| C-Axis Rotating Angle | 360˚degree |
| Feedrate | |
| X-Axis Rapid Feedrate | 36m/min |
| Y-Axis Rapid Feedrate | 36m/min |
| Z1-Axis Rapid Feedrate | 36m/min |
| W Axis Travel | 910mm |
| B-Axis Max. RPM | 25rpm |
| C-Axis Max. RPM | 250rpm |
| Turning Spindle | |
| Chuck Dimensions S1 | 8” |
| Chuck Nose Type S1 | A2-6 |
| Hole Diameter S1 | 75mm |
| Spindle Max. RPM S1 | 4500rpm |
| Motor Output Power S1 | 15/22kw(20.4/29.92hp) |
| Milling Spindle | |
| Spindle Max. RPM | 12000rpm |
| Motor Output Power | 11/22kw(14.96/29.92hp) |
| B-Axis Min Indexing Angle | ‘0.001˚degree |
| Tool Change | |
| Tool Indexing Angle/Position | 90˚/4 positions |
| Tool Type | HSK-63T |
| Tool Magazine Capacity | 36 one of a pair |
| Max. Tool Diameter (no adjacent tool) | Ø90mm(120mm) |
| Max. Tool Length | 250mm |
| Max. Tool Weight | 8kg |
| Controller | |
| Model | SIEMENS840D |
| Machine Dimensions | |
| Machine Height | 2715mm |
| Occupancy(Without Chip Conveyor) | 4007x2838mm |
| Machine Weight | 11000kg |
| Energy Requirement | |
| Power Capacity | 42KVA |
| Compressed Air Requirement | 6KG/cm² |
STANDARD ACCESSORIES
• SIEMENS 840D (5 axes simultaneous)
• 1st Turning Spindle Max. Speed 4500RPM
• 2nd Turning Spindle Max. Speed 4500RPM
• Milling Spindle Max. Speed 12000RPM
• Chuck 8”
• X/Y/Z Axis Guideway Hollow Cooling
• C-Axis Encoder
• Spindle Oil Cooling System
• High-Pressure Coolant System (18Bar)
• Chip Collection Cart
• Storage Number 36T for Tool Magazine System
• HSK 63T for Tool Specifications
OPTIONAL ACCESSORIES
• FANUC 31i-B (4+1)
• FANUC 31i-B5 (5 Axes Simultaneous)
• Milling Spindle Max. Speed 18000RPM
• Chuck 10”
• Sleeve Chuck(Ø60)
• X/Y/Z Axis Qptical Linear Scale
• B-Axis Optical Linear Scale
• Turning / Milling Tool Measuring System (BLUM)
• Workpiece Measuring System
• Oil Mist Collector Device
• High-Pressure Coolant System (70Bar)
• Rod Automatic Feeder
• Workpiece Arrestor
• Automatic Front Door
• Storage Number 72T for Tool Magazine System
• CAPTO C6 for Tool Specifications
• Tooth Milling Function
• CE Specification
• Dual-link Pedal Switch
