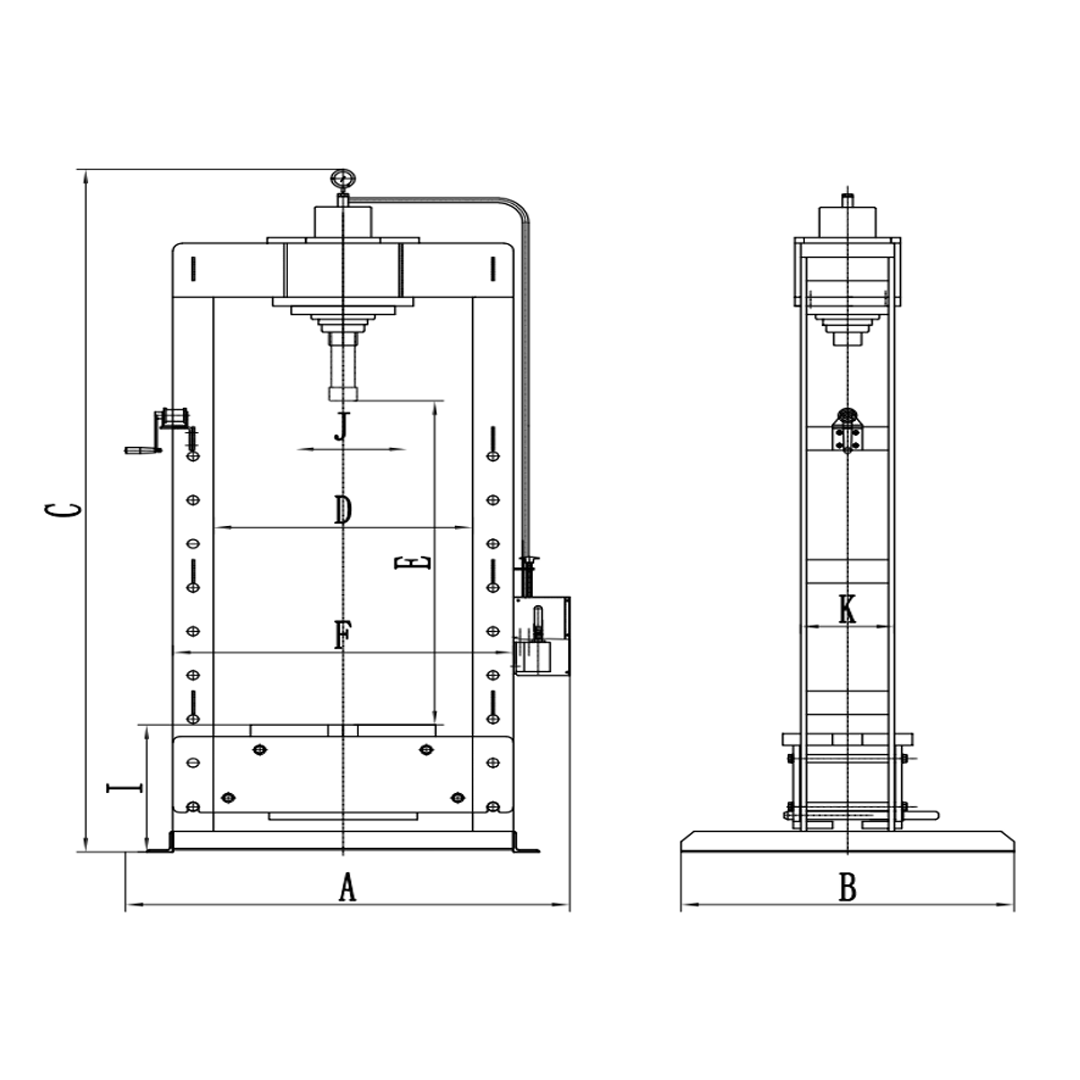

WPM Series Press Diagram

CHESTER WPM SERIES MANUAL WORKSHOP PRESSES

Precision machines ideal for manual operation in any workshop.

Please contact us for more info.

Categories: , , Tags: , , ,

Description

Features:

  • Manual Hydraulic Operation
  • Moveable Cylinder
  • User Friendly Maintenance
Model WP10M WP20M WP30M WP50M
Maximum Force 10T 20T 31T 51T
Hydraulic Pressure 61.5Mpa 70Mpa 60Mpa 63Mpa
Cylinder Stroke 150mm 180mm 180mm 190mm
Worktable 2 Support Blocks
(180x85mm each)		 2 Support Blocks
(190x100mm each)		 2 Support Blocks
(220x125mm each)		 2 Support Blocks
(350x75mm each)
Worktable Travel (Increments x Distance) 8 x 110mm 8 x 120mm 8 x 120mm 7 x 140mm
Power Source Manual Pump
(High/Low Pressure)		 Manual Pump
(High/Low Pressure)		 Manual Pump
(High/Low Pressure)		 Manual Pump
(High/Low Pressure)
A 710mm 825mm 1105mm 1275mm
B 600mm 700mm 750mm 800mm
C 1770mm 1825mm 1880mm 1800mm
D 440mm 544mm 600mm 730mm
E 1025mm 985mm 1050mm 1015mm
F 550mm 656mm 730mm 910mm
I 220mm 276mm 328mm 340mm
J 300mm 375mm 400mm 385mm
K 86mm 100mm 125mm 180mm
Weight 95kg 143kg 202kg 330kg
