Description

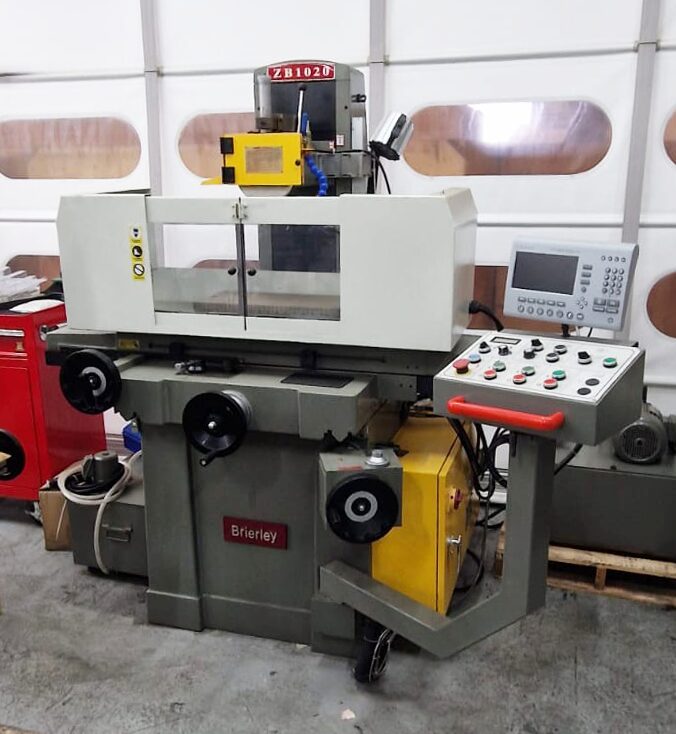

An Ex Display ZB1020 Surface Grinder, £20,320 exc VAT and delivery.
| Model | ZB1020 |
| Working Surface of Table | 255 x 510mm |
| Max: Table Travel | 560mm |
| Max Cross Travel | 280mm |
| Distance between Table & Spindle Centre | 535mm |
| Max Table Load | 300kg |
| Table Speed | 5-25m/min |
| Nos of T Slots | 1 |
| Size of T Slots | 14mm |
| Cross feed Hand wheel – 1 grad | 0.02mm |
| Cross feed Hand wheel – 1 rev | 5mm |
| Automatic Cross feed of Saddle | 0.5-12mm |
| Power Cross Feed 50Hz | 790mm |
| Power Cross Feed 60Hz | 950mm |
| Grinding Wheel | 200 x 25 x 32/31.75mm |
| Spindle Speed 50Hz | 2850rpm |
| Spindle Speed 60Hz | 3420rpm |
| Vertical hand wheel – 1 grad | 0.01 |
| Vertical Hand wheel – 1 rev | 2mm |
| Auto Down Feed Elevation | 0.002-0.2mm |
| Spindle Motor | 2.2kw (2.95hp) |
| Hydraulic Motor | 1.5kw (2.01hp) |
| Dust Collection Motor | 550w |
| Coolant Motor | 90w |
| Cross Feed Motor | 60w |
| Floor Space | 1900 x 2300mm |
| Overall Dimensions | 1960 x 1610 x 2140mm |
| Net Weight | 1680kg |
Features:
• Heavy Duty Casting
• Direct Drive Spindle
• Auto Lube
• High Capacity Table Load
Comes with 12-months parts-only warranty
