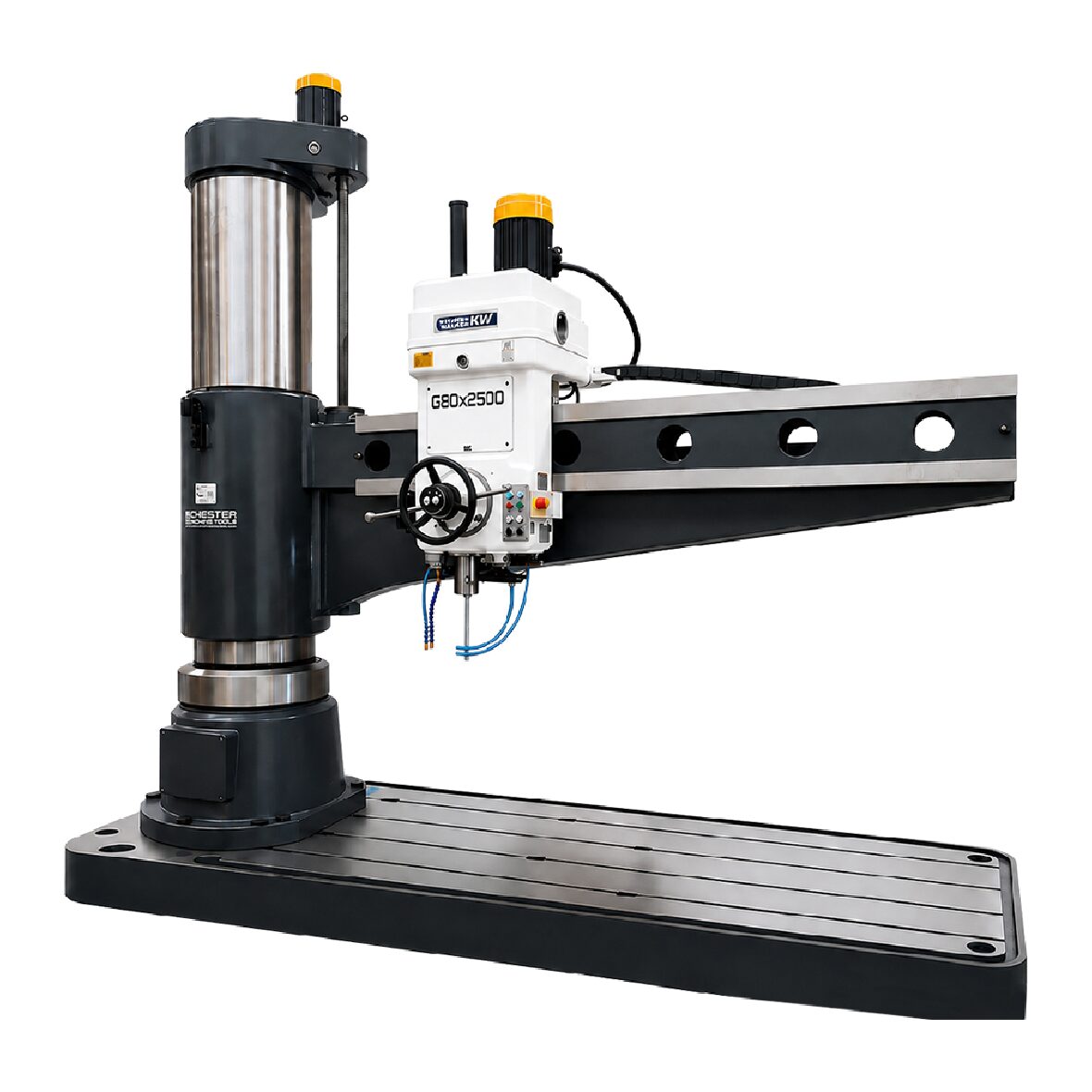

KITCHEN & WALKER G80X2500 RADIAL DRILLING MACHINE

D.C. Injection Brake.

T Slotted Box Table.

Coolant System.

Hydraulic Gear Selection.

Please contact us for more info.

Description

• Low-Volt Work Light

• Ground and Hardened Guideways

• Arm Elevation via Screw and Motor

• Full Hydraulic Clamping

Drilling Mild Steel  80mm
Drilling Cast Iron  100mm
Tapping Mild Steel  M36
Tapping Cast Iron  M40
Spindle Taper MT6
Distance from Spindle to Column(min/max) 500-2500mm
Distance from Spindle to Base(min/max) 550-2000mm
Rotation Arm around Column + – 180 deg
Vertical Travel of Arm 1450mm
Size of Box Table 1000x800x560mm
Number and Size of T Slots on Table 7/22mm
Distance between T Slots 150mm
Maximum Spindle Traverse(hand/power) 450mm
Number of Spindle Speeds 16
Range of Spindle Speeds 16-1250rpm
Number of Feed Rates 16
Range of Power Feed Rates 0.04-3.2mm/r
Base Size Overall  3530x1400mm
Base Working Surface 2455X1220mm
Number and Size of T Slots on Base 4/28mm
Distance between T Slots 276mm
Column Diameter 550mm
Main Motor Power  7.5kw(10.05hp)
Coolant Pump Motor  0.125kw(0.17hp)
Table Elevation Motor 3kw(4hp)
Clamping/Hydraulic Motor 0.75kw(1hp)
Overall Height  3825mm
Footprint(LxW) 3730x1400mm
Net Weight  11000kg

STANDARD ACCESSORIES

• Work Light

• Coolant System

• Box Work Table

• Fixing Bolts

• Reducing Sleeves

• D.C. Brake

• Manual and Parts List
