Description

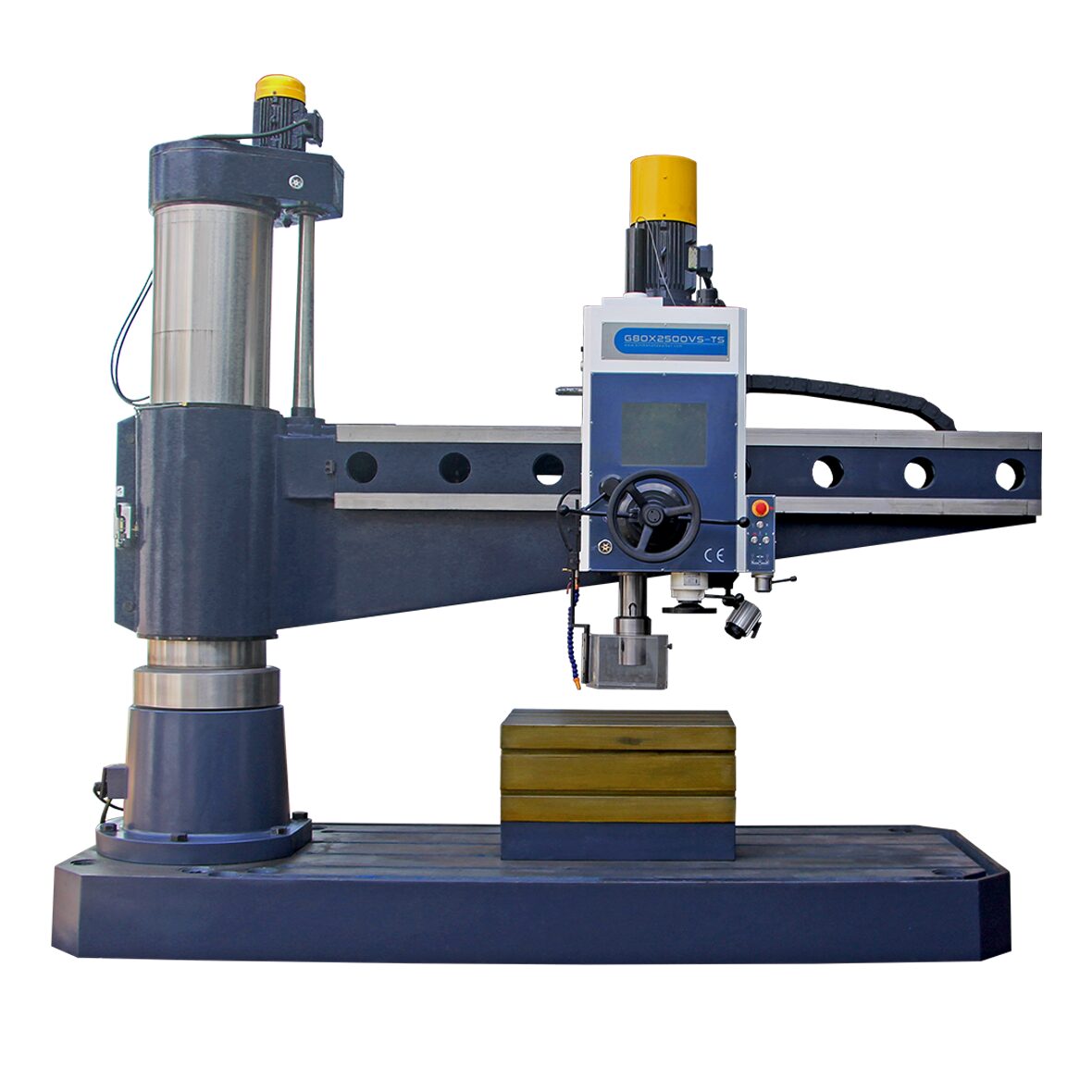

A precision machine, our G80x2500VS/TS Radial Drill is ideal for workshops.
| Drilling Capacity Mild Steel | 80mm |
| Drilling Capacity Cast Iron | 105mm |
| Tapping Capacity Mild Steel | M52mm |
| Tapping Capacity Cast Iron | M60mm |
| Spindle Taper | MT6 Morse |
| Distance from Spindle to Column (min/max) | 465-2550mm |
| Distance from Spindle to Base (min/max) | 360-1560mm |
| Rotation Arm around Column | ±180° |
| Travel Distance of Spindle Box in Horizontal (manual) | 2095mm |
| Vertical Travel of Arm | 1140mm |
| Box Table size | 850 x 580 x 500mm |
| Number and Size of T Slots on Table | 5/22mm |
| Distance between T Slots | 150mm |
| Maximum Spindle Traverse (hand/power) | 400mm |
| Number of Spindle Speeds | Stepless |
| Range of Spindle Speeds | 30-192rpm, 205-1400rpm |
| Range of Spindle Feed Rate | 0-350mm/min |
| Max. Spindle Torque | 980Nm |
| Max. Spindle Feed Resistance | 24500N |
| Spindle moving distance of each Dial Revolution | 151mm |
| Arm Moving Angle | +/-180° |
| Arm Speed (up & down) | 1.0m/min |
| Number of Feed Rates | Stepless |
| Range of Power Feed Rates | N/A |
| Base size (overall) | 3400 x 1250 x 280mm |
| Base Working Surface | 2570 x 1070mm |
| Number and size of T Slots on base | 4/28mm |
| Distance between T Slots | 250mm |
| Column Diameter | 450mm |
| Main Motor Power | 7.5kW (10.06hp) |
| Feed Motor Power | 2.6kW (3.49hp) |
| Power for Arm Motor | 2.2kW (2.95hp) |
| Coolant Pump Motor | 0.15kW (2.01hp) |
| Clamping/Hydraulic Motor | 1.5kW (2.01hp) |
| Machine Dimensions (L x W x H) | 3590 x 1250 x 3560mm |
| Net Weight | 7400kg |
Standard Accessories
- Interlocked Spindle Guard
- Automatic Tapping Function
- LED Work Lamp
- Coolant System with Flexible Hose
- Box Work Table
- Fixing Bolts
- Reducing Sleeves
- Set of Lifting Shoes
- D.C Brake
- Safety Relay
- Operational Manual
