HPAC Vices

£2,623.38£3,249.98

Clear
SKU: HOM-HKV-150-1-1 Categories: , , Tag:

Description

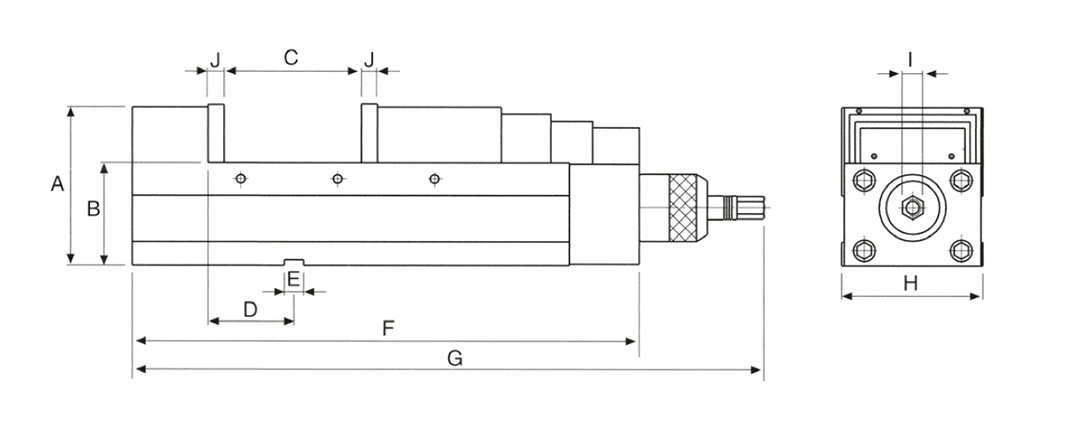

Stock-code Model A B D E F G H Max clamping Force I J C C1 C2 C3 Weight
HOM-hpAC-130 hpAC-130 147   95 ± 0.01   80 ± 0.02 18 475 583 131 6000 kg 19 15 0-190 70-260 115-305 185-375 47kg
HOM-hpAC-160 hpAC-160 160 105 ± 0.01   80 ± 0.02 18 560 670 161 8000 kg 19 15 0-240 85-325 140-375 220-460 65kg
HOM-hpAC-200 hpAC-200 170 110 ± 0.01  100 ± 0.02 18 635 743 201 8000 kg 19 18 0-285 90-380 155-440 240-530 95kg


Vice body made of Ductile Iron above FCD 60 grade for high precision and durability.  The body is made in one solid piece and has very high rigidity with a force of 4500kg, the shape will deflect less than 0.01mm.


Slide ways are HARDENED to HRC50º to further increase durability and maintain positioning height over long use.

Using high-grade iron of over FCD 60 grade for high rigidity and also ANGLE-LOCK SYSTEM which automatically pulls the work piece down to the accurate position of within 0.01mm under 4500kg of pressure, this vice is most suitable for precision mould making on Machining Centres.

Vice can be mounted horizontally or vertically.

The patented MULTI-POWER SYSTEM is built of HIGH GRADE BEARING STEEL which doubles the clamping force.  With  half a turn the vice will clamp with 2500kg pressure, with a second half turn it will apply 4500kg of clamping force.  With this special patented system the clamping force will never change.

Additional information

Weight 25 kg
Vice Model

, , , , , , , , , , , , , , , , , , , ,
