CHESTER MINI CENTRE CNC MACHINING CENTRE

The Chester Mini Centre is a simple, low cost entry to CNC machining ideally suited to higher education and training. The Mini Centre can also be used in a toolroom workshop environment, light duty metal parts machining, mould making and R&D.

Please contact us for more info.

Description

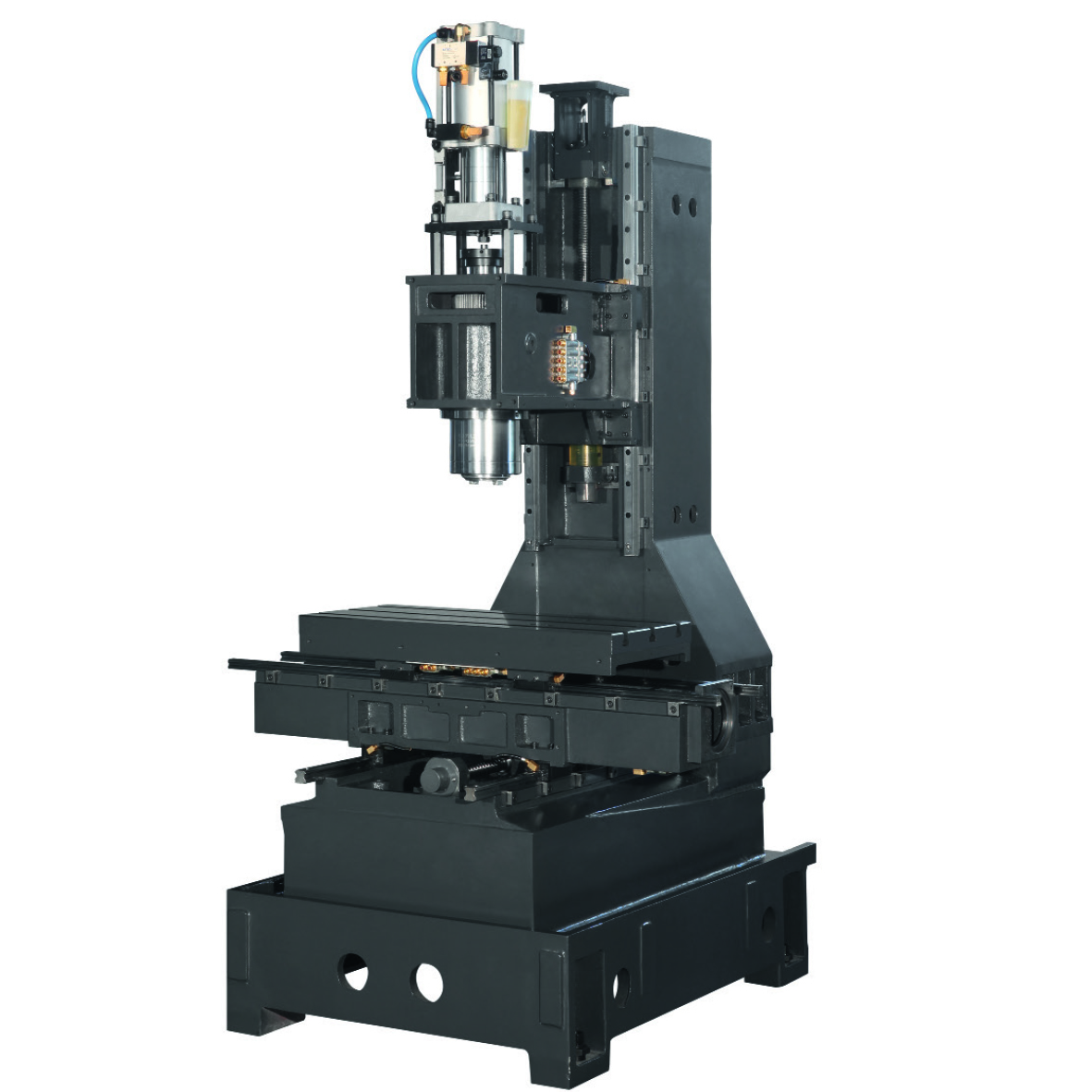

The machine itself is built from tempered cast iron for stress relief to ensure structural stability without deformation. The machine has C3 class ballscrews which ensure highest accuracy and durability. Pretension on all axes minimises thermal distortion. The Mini Centre can be supplied with Siemens or Fanuc controller.

Cast Iron Tempered for Stress Relief to Ensure Structural Stability without Deformation. C3 Class Ballscrews Ensure the Highest Accuracy and Durability. Pretension on All Axis Minimizes Thermal Distortion

Entry Level Machine Ideal for Education and Small Work Pieces

• Training

 Tool room workshop

  Metal parts machining

• Model making

  R&D

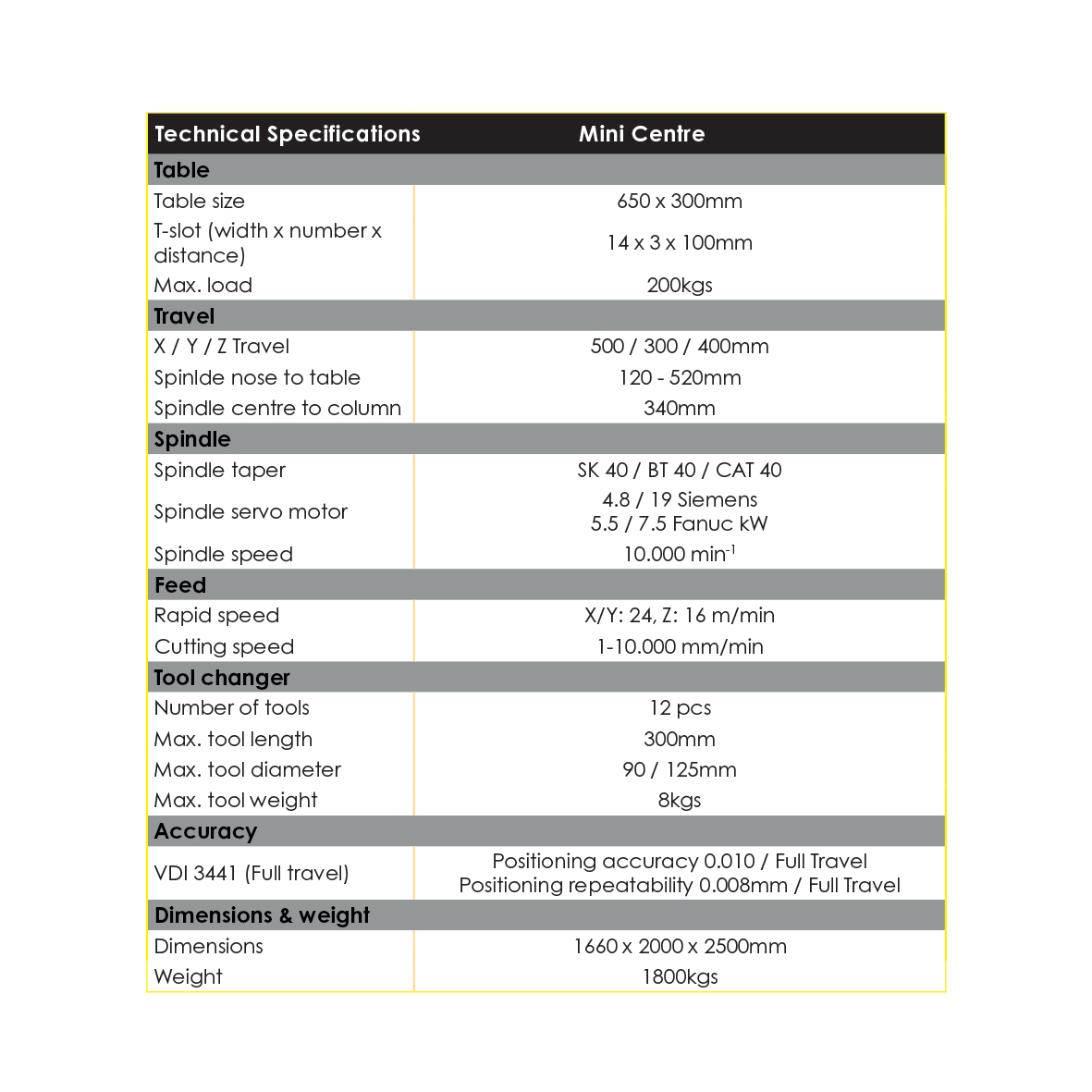

Technical Specifications                         Mini Centre
Table
Table size 650 x 300mm
T-slot (width x number x distance) 14 x 3 x 100mm
Max. load 200kgs
Travel
X / Y / Z Travel 500 / 300 / 400mm
Spinlde nose to table 120 – 520mm
Spindle center to column 340mm
Spindle
Spindle taper SK 40 / BT 40 / CAT 40
Spindle servo motor 4.8 / 19 Siemens

5.5 / 7.5 Fanuc kW

Spindle speed 10.000 min-1
Feed
Rapid speed X/Y: 24, Z: 16 m/min
Cutting speed 1-10.000 mm/min
Tool changer
Number of tools 12 pcs
Max. tool length 300mm
Max. tool diameter 90 / 125mm
Max. tool weight 8kgs
Accuracy
VDI 3441 (Full travel) Positioning accuracy 0.010 / Full Travel

Positioning repeatability 0.008mm / Full Travel

Dimensions & weight
Dimensions 1660 x 2000 x 2500mm
Weight 1800kgs



STANDARD ACCESSORIES

• Fully enclosed splash guard

• Belt drive spindle 10000 rpm

• 12 position umbrella tool changer

• Heat exchanger for electrical cabinet

• Rigid tapping

• Ethernet, CF card and USB interface

• Automatic lubrication system

• Coolant system

• LED working lamp

• End of program light

• Electronic handwheel (MPG)

• Tool box

• Leveling bolts and blocks

• Coolant gun

• Air gun

• Chip flushing system

• User Manual



OPTIONAL ACCESSORIES

• Spindle cooling system

• Workpiece probe

• Tool probe

• Rotary table

• Oil skimmer
