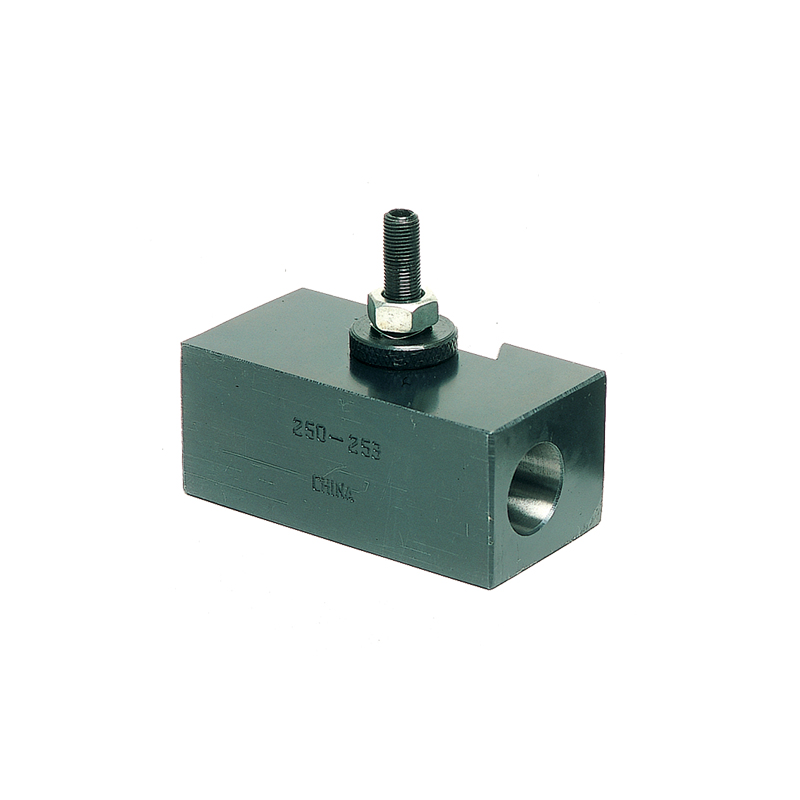

Heavy Duty Boring Bar Holder

£32.45 – £88.92

Clear
SKU: 009-250-441 Categories: , , , Tag:

Description

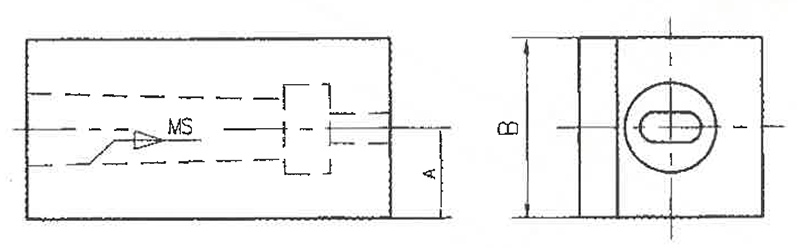

A B C D Maximum Tool Size To Fit Tool post Stock Code Weight
19.05mm 38.1mm 15.88mm 19.05mm 19.05mm T-1 009-250-141 1.0 kg
25.4mm 50.8mm 19.05mm 25.4mm 25.4mm T-2 009-250-241 3.0 kg
25.4mm 50.8mm 25.4mm 31.7mm 25.4mm T-3 009-250-341 3.0 kg
28.4mm 57.2mm 25.4mm 31.7mm 31.7mm T-4 009-250-441 4.5 kg

Additional information

Weight 3 kg
Heavy Duty BB Holder

, , ,
