Quick Change Toolposts

£150.28£465.33

Clear

Description

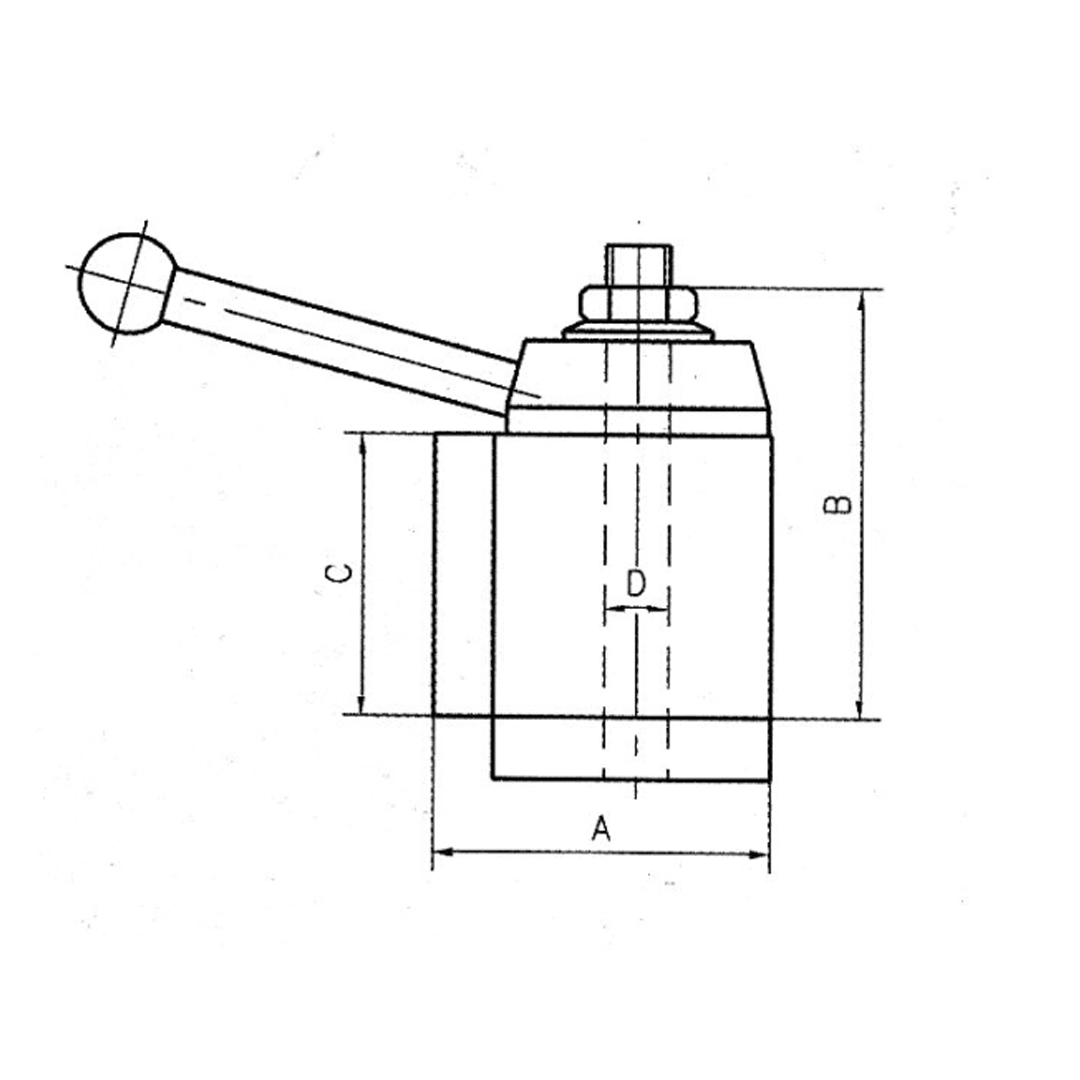

Model  Size A Size B Size C Size D Stock Code Weight
Piston  T-1 63.5mm 94.45mm 57.15mm 14.29mm 009  – 250-100 2kg
Dovetail  T-2   76.2mm 117.46mm    69.85mm   15.88mm 009 – 250-200 4kg
Dovetail  T-3 82.55mm 130.18mm 76.2mm 19.05mm 009 – 250-300 6kg
Dovetail  T-4 123.85mm 158.75mm 92.06mm 22.26mm 009 – 250-400 8kg

All Tool posts will require some machining by the customer to fit the individual lathe. Tool posts bought when purchasing a lathe can be fitted  prior to despatch..

Additional information

Weight 2 kg
Quick Change Toolposts

, , ,

Click the links below to download the specific documents.
There are currently no videos attached to this product please check back in the future.
