Precision horizontal and vertical rotary tables. Ideal for indexing, boring, and milling.
| Stock-code | Model | Table | Base Dimension | Bolt slots | Centre sleeve | Worm Gear ratio | Weight | ||

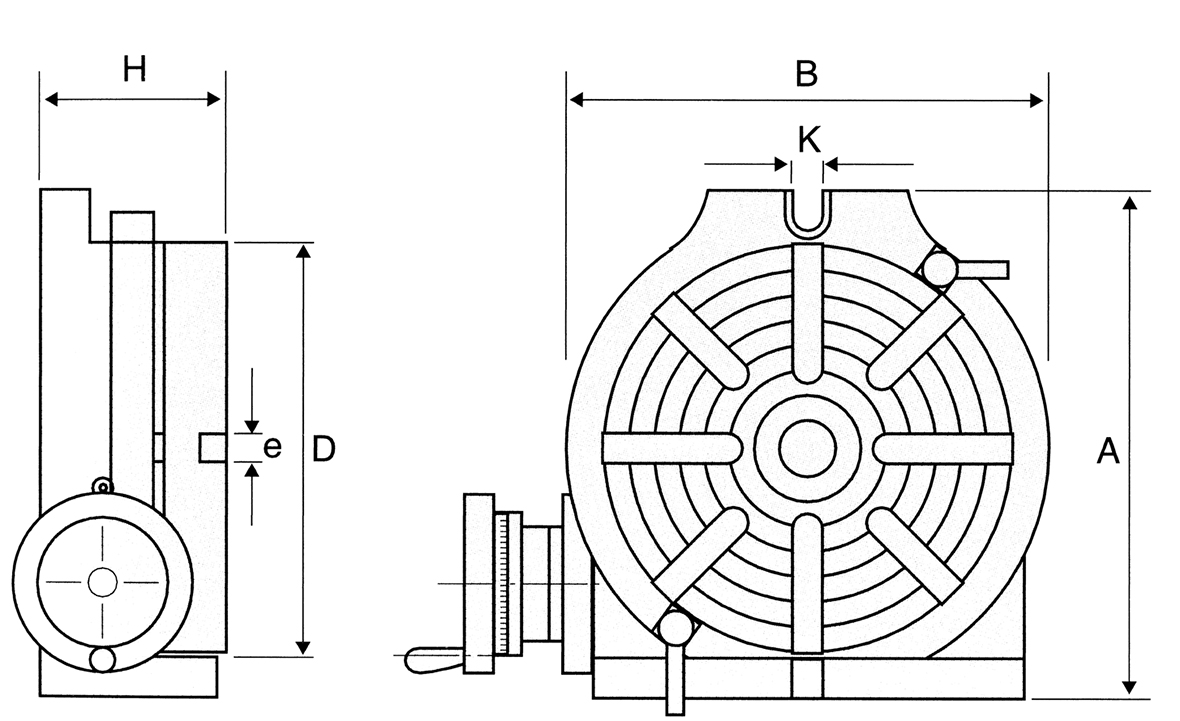

| D | H | A | B | K | |||||
| HOM-HHV-100 | HHV-100 | 110mm | 26mm | 145mm | 130mm | MT-2 | 90:1 | 7.5kg | |
| HOM-HHV-150 | HHV-150 | 150mm | 92mm | 220mm | 160mm | 18mm | MT-2 | 12.5kg | |
| HOM-HHV-200 | HHV-200 | 200mm | 120mm | 310mm | 225mm | 18mm | MT-3 | 31.0kg | |
| HOM-HHV-250 | HHV-250 | 250mm | 120mm | 320mm | 280mm | 18mm | MT-3 | 90 : 1 | 48.5kg |
| HOM-HHV-300 | HHV-300 | 300mm | 140mm | 410mm | 325mm | 18mm | MT-4 | 77.0kg | |
| HOM-HHV-350 | HHV-350 | 350mm | 140mm | 460mm | 380mm | 18mm | MT-4 | 98kg | |
| HOM-HHV-400 | HHV-400 | 400mm | 140mm | 510mm | 435mm | 18mm | MT-5 | 130kg |
Features
The work table is graduated 360º around its circumference and is driven by a precision Worm and Gear providing a 90:1 reduction ratio.
One turn of the handle moves the table through 4º. The dial is graduated in divisions of 1 min. and the vernier scale allows readings down to 10 seconds.
The worm is hardened and precision ground. Both the upper and lower surfaces are precision ground.
