Semi Universal Dividing Heads BS-0 / BS-1

£684.86£888.80

Clear

Description

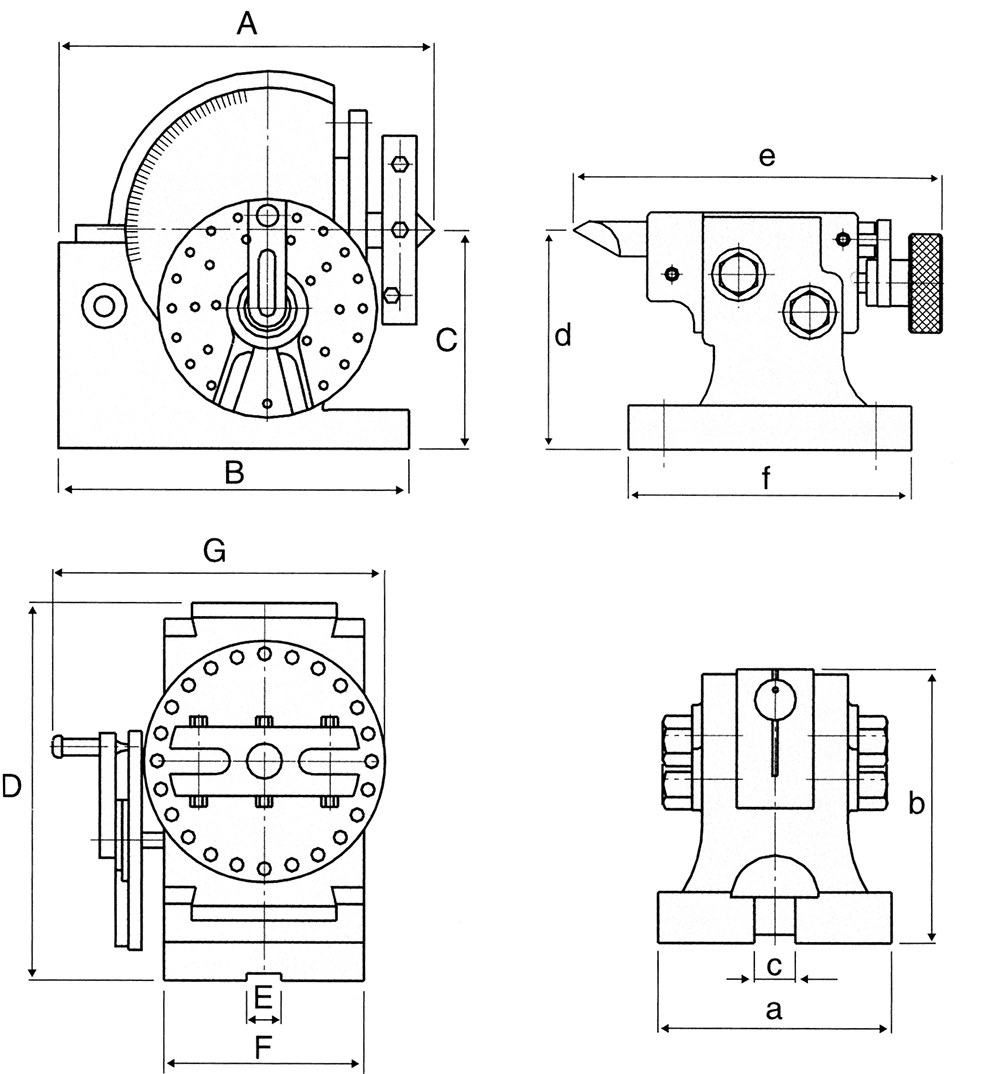

Stock-code Model A B C D E F G Weight
HOM-BS-0 BS-0 189 160 100 173 16 91 140 22kg
HOM-BS-1 BS-1 293 210 128 220 16 114 156 36kg

Tail Stock for Semi-Universal Dividing Head BS0 and BS1

No Model A B C D E F Taper of Centre Diameter of Spindle Hole
D-05 BS-0 90 105 16 100 166 127 B&S No.7 18
D-06 BS-1 108 134 16 128 184 150 B&S No.9 20



Numbers of hole Plate A 15 16 17 18 19 20
Plate B 21 23 27 29 31 33
Plate C 37 39 41 43 47 49

FEATURES:

Semi-Universal Dividing Head is a simplified type of Universal Index Centre and can be used for direct and indirect dividing.  No accessories for the differential dividing and spiral work are included, but the whole construction of the dividing head and tailstock are identical with those of the universal type.

The unit has a Direct Indexing Plate with 24 holes enabling the direct division of 2, 3, 4, 6, 8, 12 and 24.  Three further Indexing Plates are provided as standard to facilitate indirect dividing from 2 to 50 and also most useful divisions up to 380.
