Description

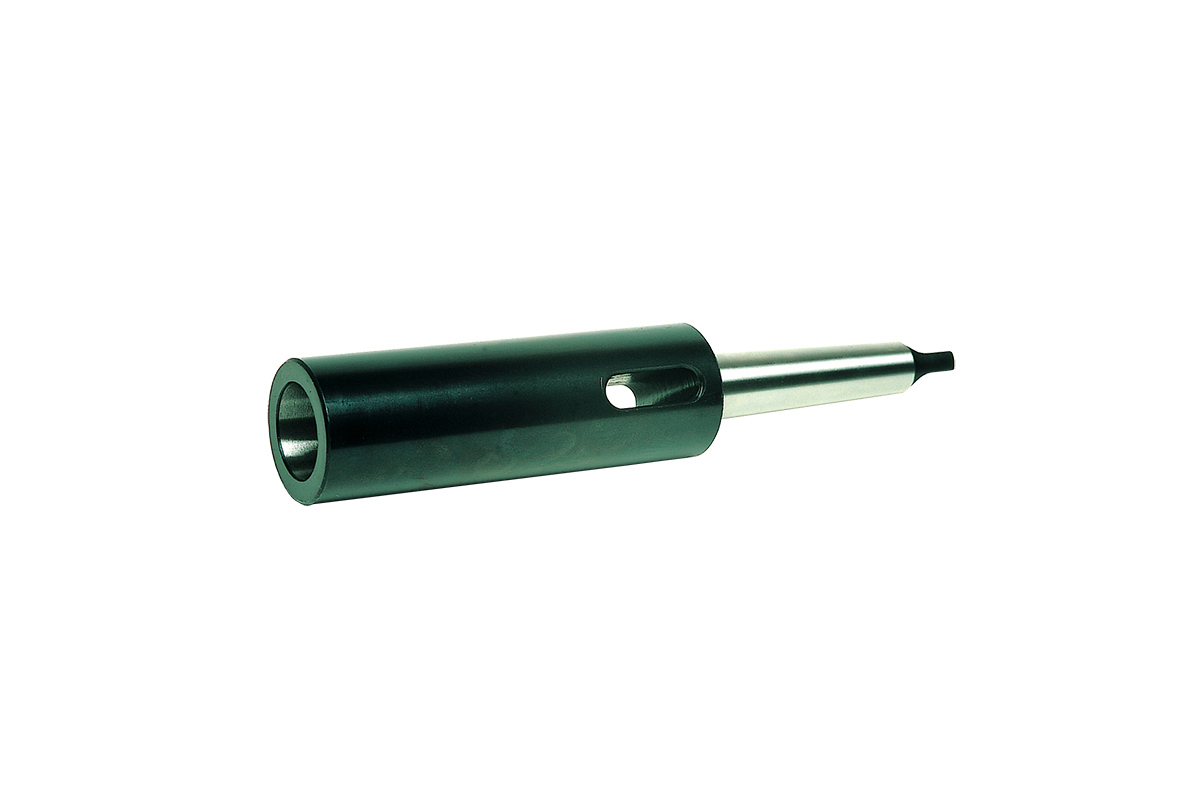

Quality reducing sleeves for lathes. Ideal for converting spindle sizes.

Outside Taper	Inside Taper	Fitting	Stock Code	Length	Diameter	Weight
MT1	MT3	tang	013-143	160mm	30mm	0.5kg
MT3	MT2	tang	013-140	196mm	30mm	0.6kg
MT4	MT3	tang	013-141	240mm	48mm	1.5kg
MT4	MT5	tang	013-142	300mm	63mm	3.1kg

Additional information

Weight	N/A
Sleeves	MT1 – MT3 – Tang, MT3 – MT2 – Tang, MT4 – MT3 – Tang, MT4 – MT5 – Tang
