Description

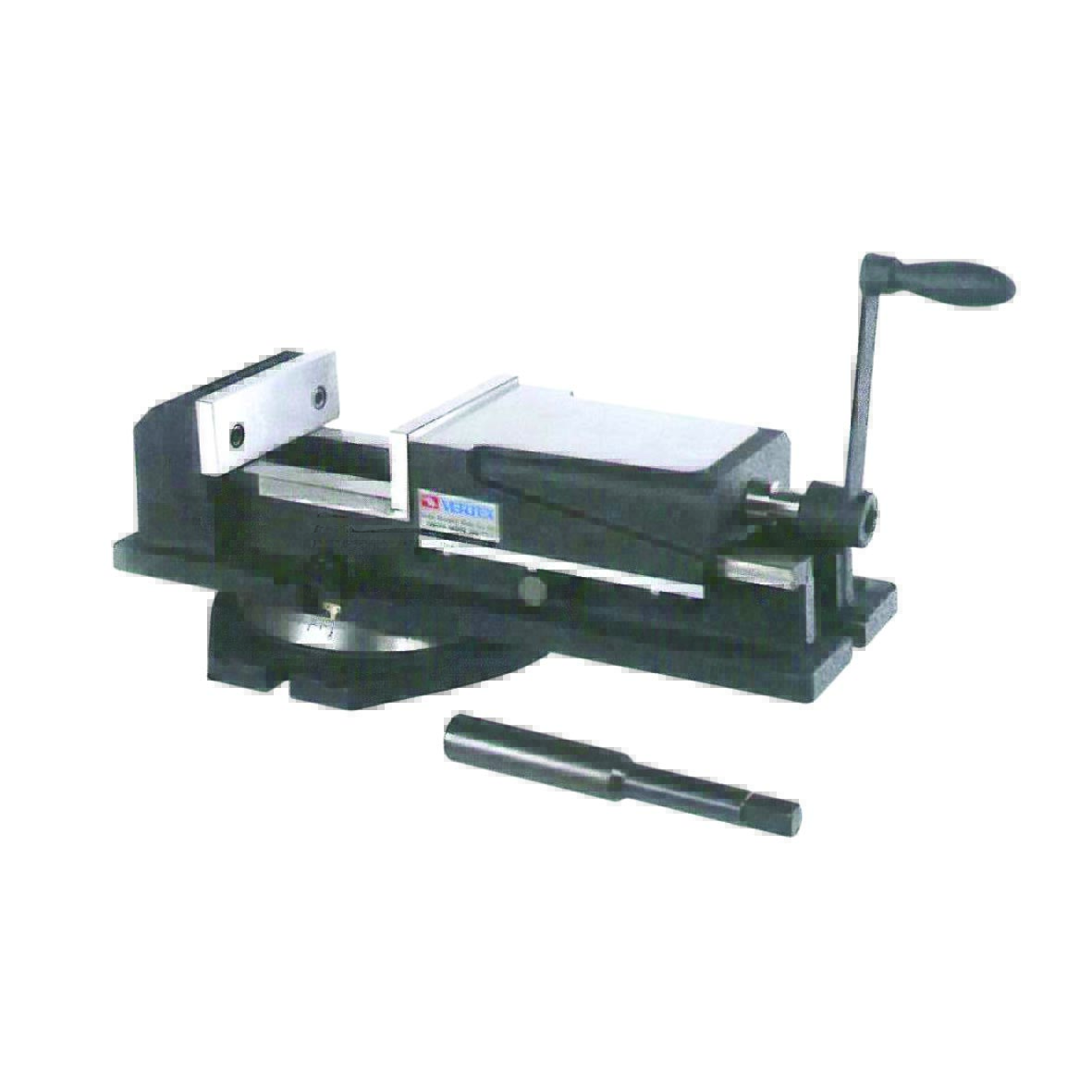

High precision vice made from precision ground and hardened steel.

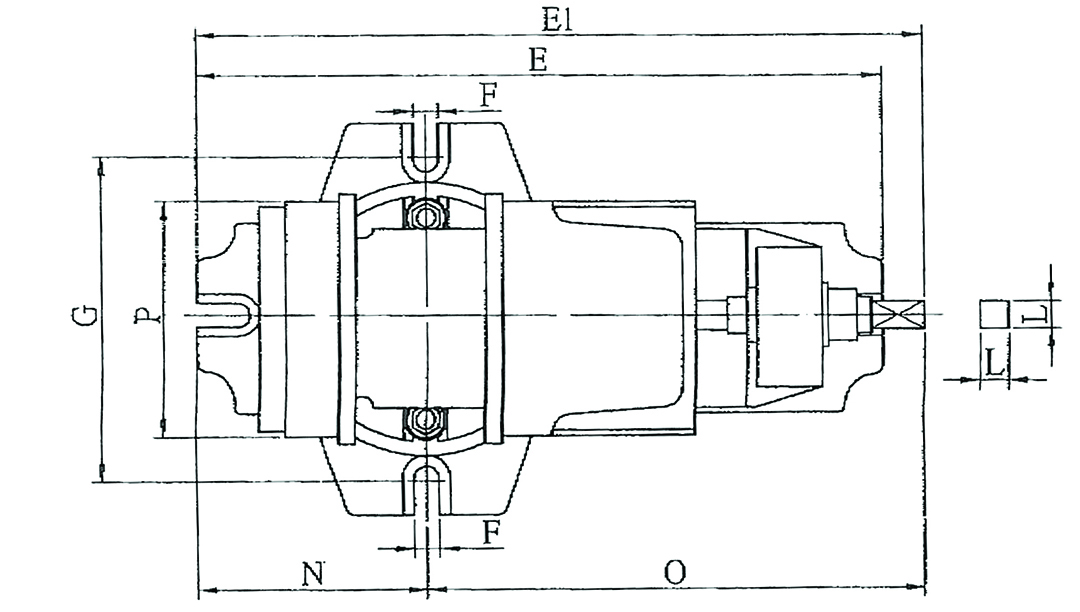

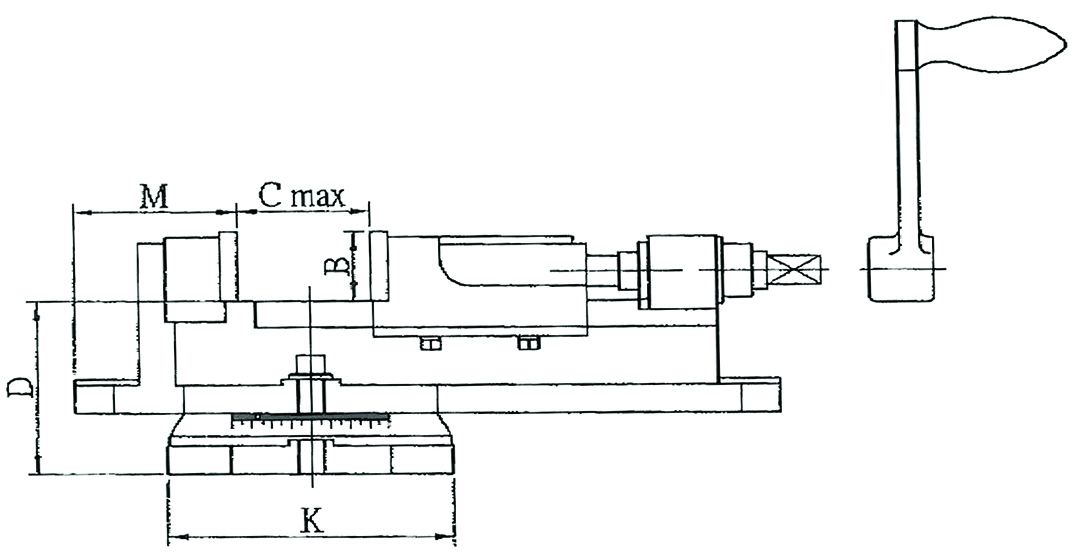

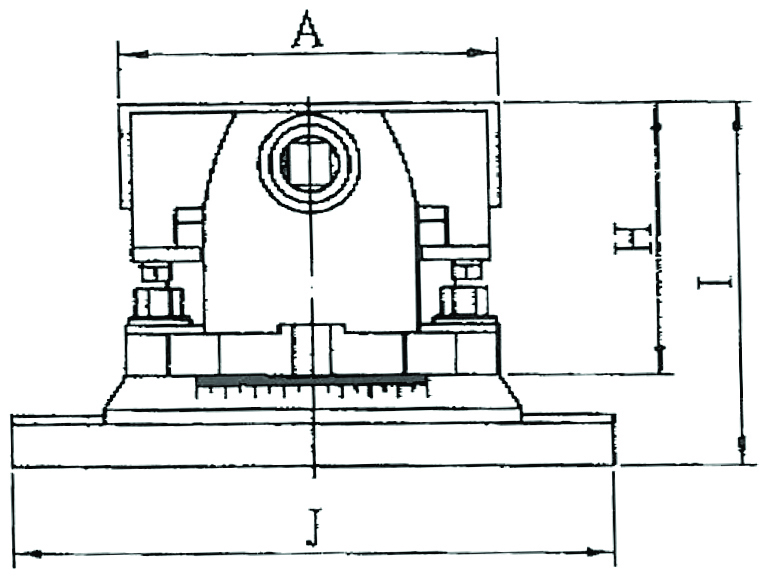

| Stock-code | Model | A | B | C Max | Opening Size for Capacity | D | E | E1 | F | G | H | I | J | K | L | M | ||
| C1 | C2 | C3 | ||||||||||||||||
| VER-VJ-500 | H-400 | 110 | 38 | 185 | 0-65 | 52-129 | 116-185 | 97 | 386 | 516 | 15 | 240 | 96 | 135 | 270 | 238 | 14.5 | 90 |
| VER-VJ-600 | H-500 | 132 | 48 | 245 | 0-78 | 70-158 | 150-245 | 110 | 455 | 580 | 17 | 255 | 113 | 158 | 290 | 265 | 14.5 | 85 |
| VER-VJ-800 | H-600 | 154 | 56 | 305 | 0-111 | 97-211 | 197-305 | 118 | 546 | 722 | 17 | 255 | 131 | 175 | 290 | 265 | 19 | 111 |
| Stock-code | Model | N | O | Max. Clamp Force | Weight |
| VER-VJ-500 | H-400 | 16 | 156 | 1500kg | 25kg |
| VER-VJ-600 | H-500 | 16 | 166 | 1500kg | 34kg |
| VER-VJ-800 | H-600 | 16 | 200 | 1500kg | 46kg |
The vice jaws are made of hardened alloy steel and are precision ground.
All slide ways on these vices are hardened and ground.
Clamping force can be adjusted by the use of a dial.
Hydraulic vices are suitable where a high clamping force is required.
