Universal Parting Blade Holder

Quick changeover with precision repeatability.

Description

Parting blade tool holder. Ideal for precision lathe work.

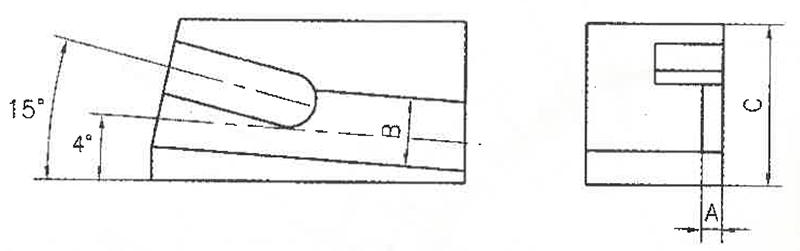

A	B	C	Blade Height	To Fit Tool post	Stock Code	Weight
4.76mm	12.7mm	38.1mm	12.7mm	T-1	009-250-107	0.5kg
4.76mm	26.99mm	44.45mm	26.99mm	T-2	009-250-207	0.5kg
4.76mm	19.05mm	50.8mm	19.05mm	T-3	009-250-307	1.5kg
6.3mm	22.23mm	63.5mm	22.23mm	T-4	009-250-407	2.0kg

Additional information

Weight	3 kg
Parting Blade Holder	To Fit Toolpost T-1, To Fit Toolpost T-2, To Fit Toolpost T-3, To Fit Toolpost T-4
