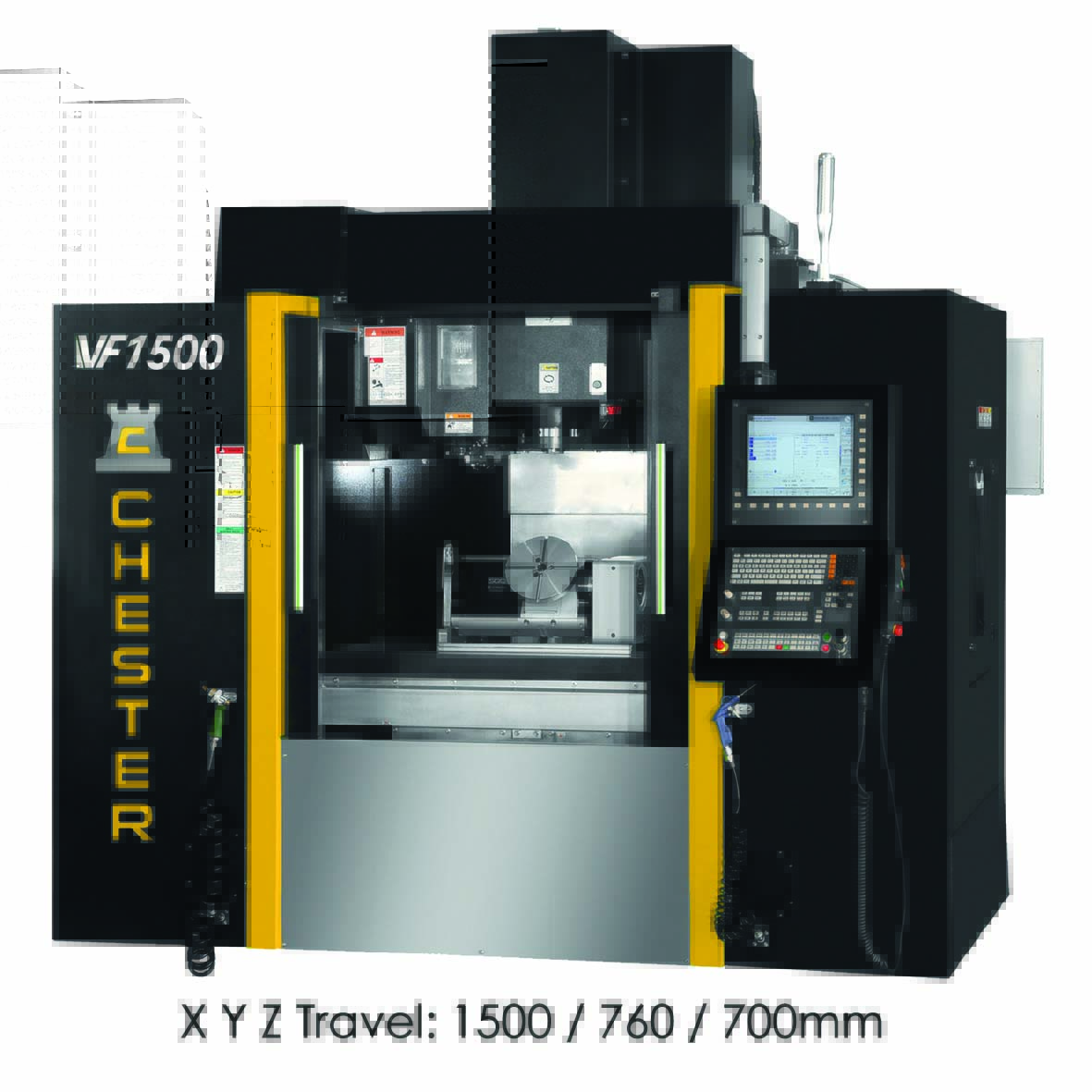

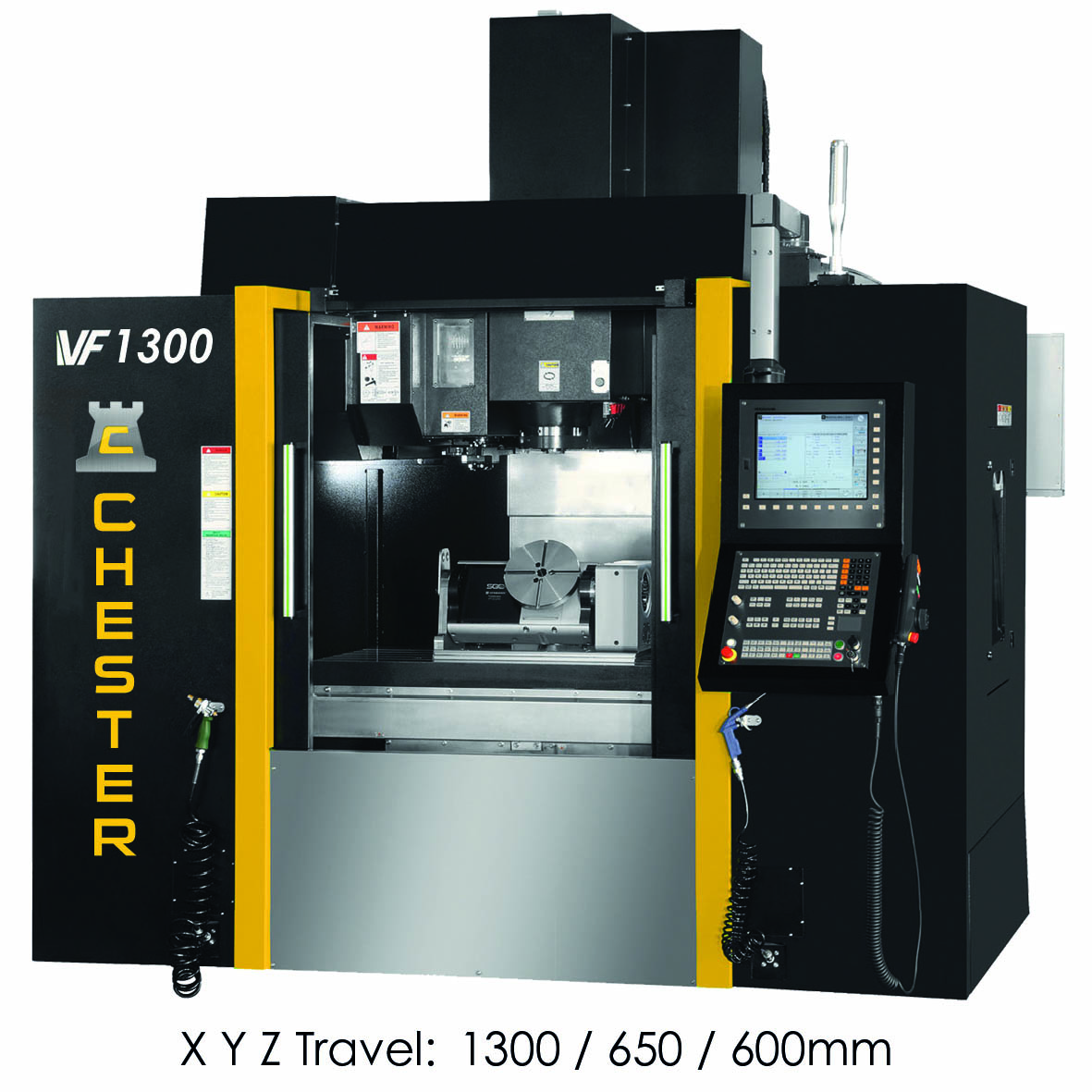

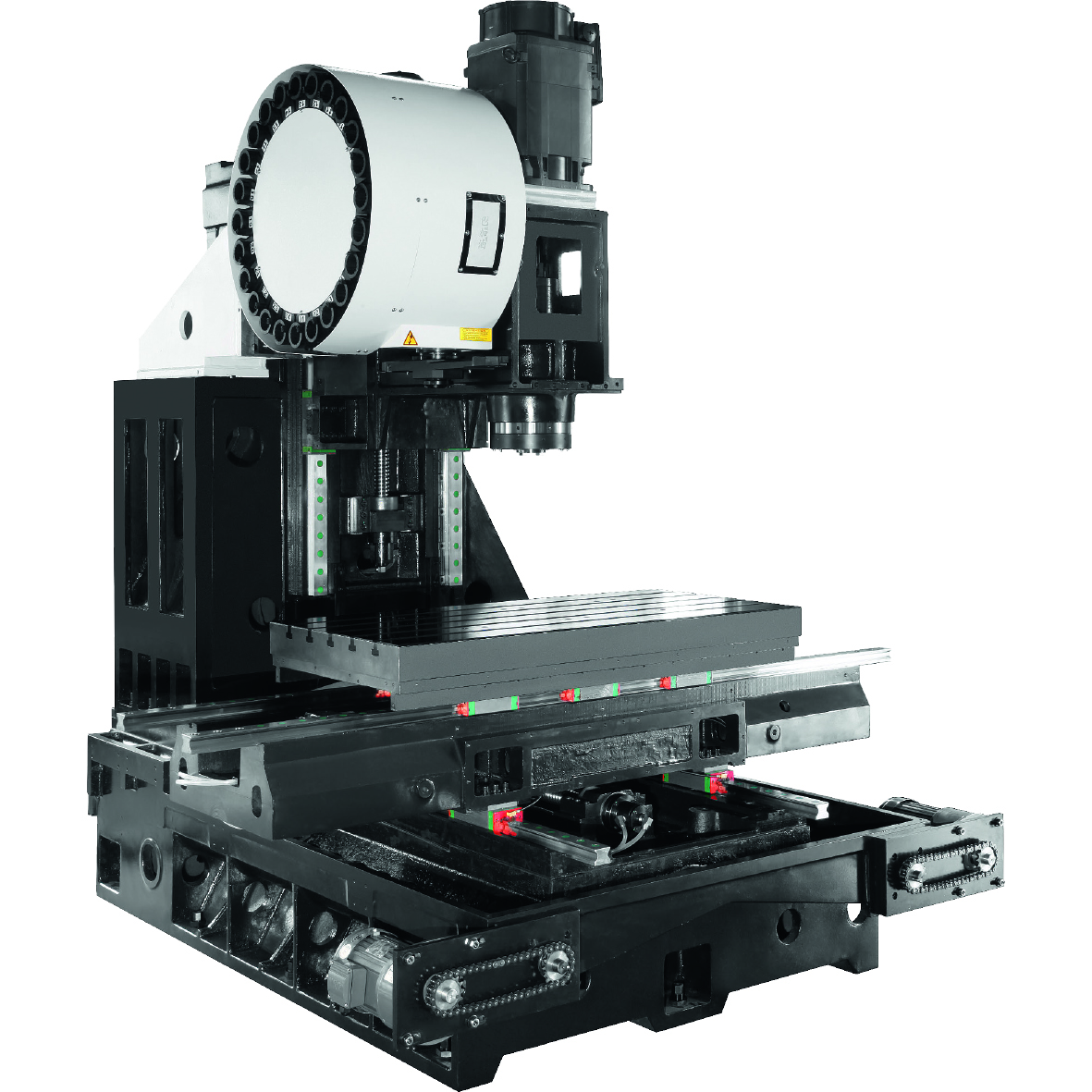

The Chester VF900 – VF1500 High Speed Ultra High Performance CNC Machining Centres advanced machine design has a reinforced body structure through FEM analysis and extra wide machine column and base design to ensure the high rigidity during high speed movement. The VF series CNC Machines offers superb cutting performance and reduced vibration to meet the highest machining demands.
Our CNC Machining Centres offer:

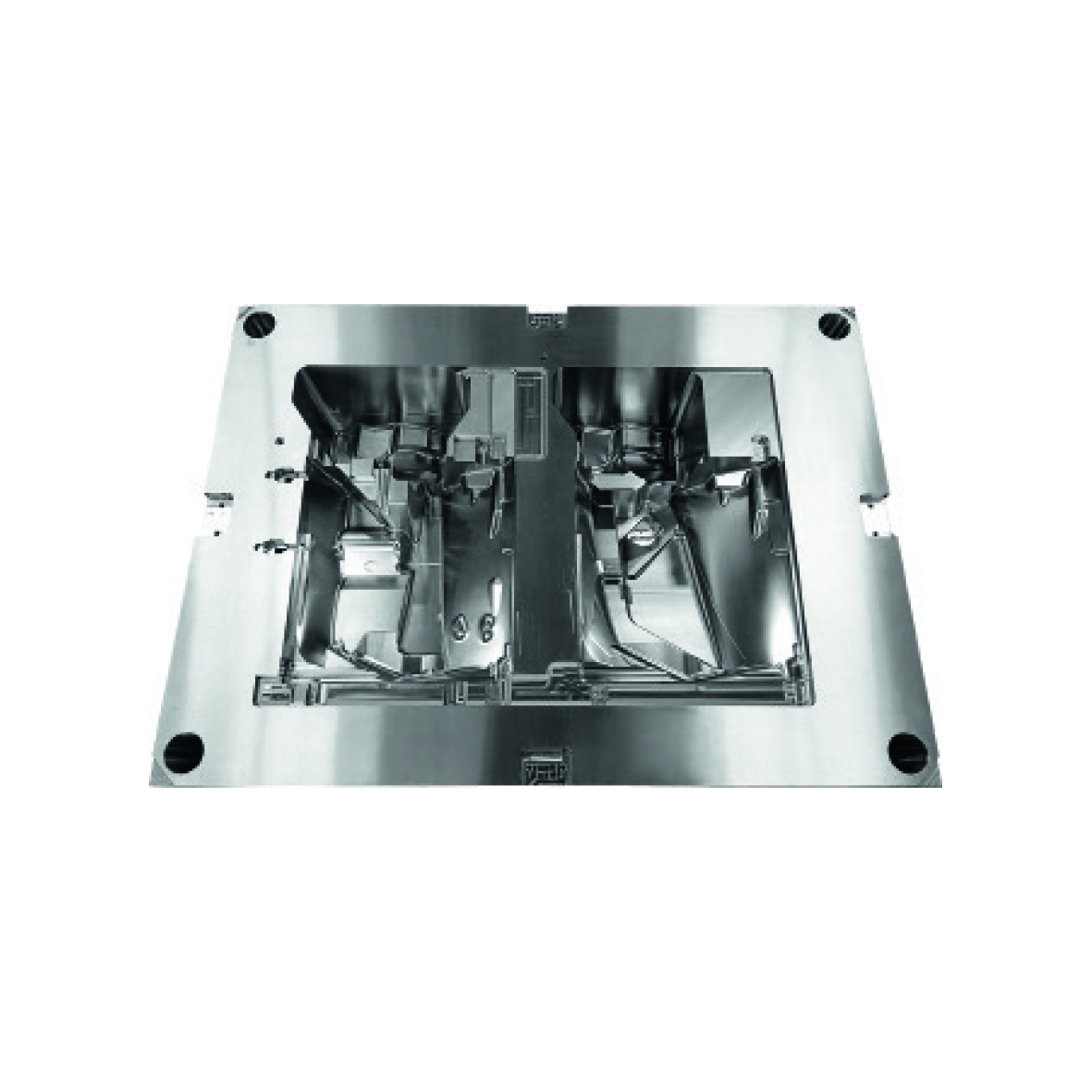

- Ultra high performance and high rigidity for Precision mould making
- High spindle torque
- BBT spindle for higher rigidity
- Roller type linear guideway
- Direct drive provides backlash free, best accuracy, reliability and stability
- Extra wide machine column and base design ensures the high rigidity during high speed movement
- Motor seat cooling circuit (VF1100 & VF1300)
- Oil cooled ballscrew for VF1100 & VF1300 & VF1500 (option)
- Linear scales (option)

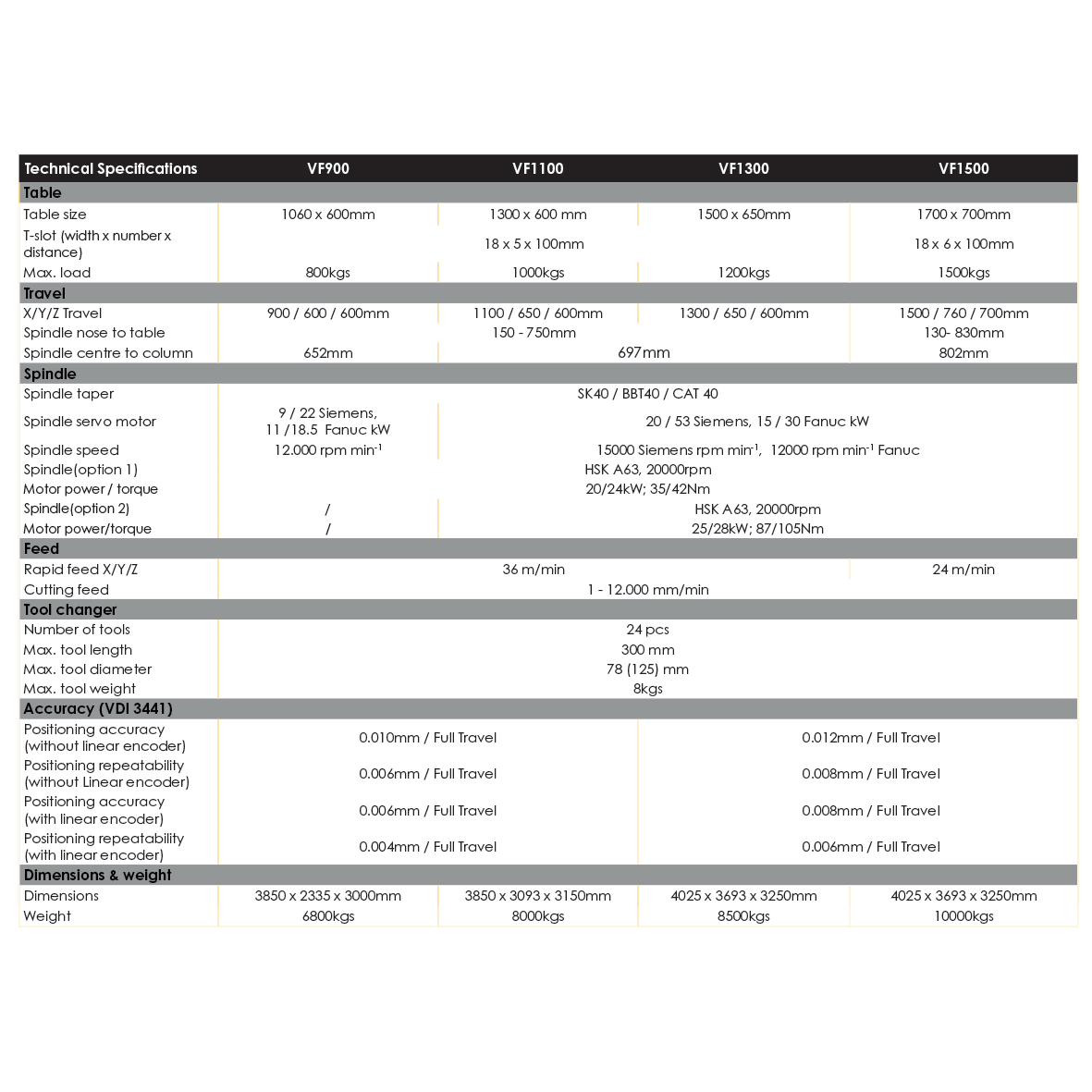

| Technical Specifications | VF900 | VF1100 | VF1300 | VF1500 |
| Table | ||||
| Table size | 1060 x 600mm | 1300 x 600 mm | 1500 x 650mm | 1700 x 700mm |
| T-slot (width x number x distance) | 18 x 5 x 100mm | 18 x 6 x 100mm | ||
| Max. load | 800kgs | 1000kgs | 1200kgs | 1500kgs |
| Travel | ||||
| X/Y/Z Travel | 900 / 600 / 600mm | 1100 / 650 / 600mm | 1300 / 650 / 600mm | 1500 / 760 / 700mm |
| Spindle nose to table | 150 – 750mm | 130- 830mm | ||
| Spindle centre to column | 652mm | 697mm | 802mm | |
| Spindle | ||||
| Spindle taper | SK40 / BBT40 / CAT 40 | |||
| Spindle servo motor | 9 / 22 Siemens, 11 /18.5 Fanuc kW | 20 / 53 Siemens, 15 / 30 Fanuc kW | ||
| Spindle speed | 12.000 rpm min-1 | 15000 Siemens rpm min-1, 12000 rpm min-1 Fanuc | ||
| Spindle(option 1) | HSK A63, 20000rpm | |||
| Motor power / torque | 20/24kW; 35/42Nm | |||
| Spindle(option 2) | / | HSK A63, 20000rpm | ||
| Motor power/torque | / | 25/28kW; 87/105Nm | ||
| Feed | ||||
| Rapid feed X/Y/Z | 36 m/min | 24 m/min | ||
| Cutting feed | 1 – 12.000 mm/min | |||
| Tool changer | ||||
| Number of tools | 24 pcs | |||
| Max. tool length | 300 mm | |||
| Max. tool diameter | 78 (125) mm | |||
| Max. tool weight | 8kgs | |||
| Accuracy (VDI 3441) | ||||
| Positioning accuracy (without linear encoder) | 0.010mm / Full Travel | 0.012mm / Full Travel | ||
| Positioning repeatability (without Linear encoder) | 0.006mm / Full Travel | 0.008mm / Full Travel | ||
| Positioning accuracy (with linear encoder) | 0.006mm / Full Travel | 0.008mm / Full Travel | ||
| Positioning repeatability (with linear encoder) | 0.004mm / Full Travel | 0.006mm / Full Travel | ||
| Dimensions & weight | ||||
| Dimensions | 3850 x 2335 x 3000mm | 3850 x 3093 x 3150mm | 4025 x 3693 x 3250mm | 4025 x 3693 x 3250mm |
| Weight | 6800kgs | 8000kgs | 8500kgs | 10000kgs |
STANDARD ACCESSORIES
• Fully enclosed splash guard
• Direct drive spindle 12000 rpm (VF900)
• Direct drive spindle 15000 rpm (VF1100, VF1300)
• 24 pockets arm tool changer
• Two screw type and one chain type (VF 1100, VF1300, VF1500)
• Chain type chip conveyor (VF900)
• Spindle cooling system
• Air-conditioned electrical cabinet
• Motor seat cooling circuit (VF1100, VF1300, VF1500)
• Rigid tapping
• Ethernet, CF card and USB interface
• Automatic lubrication system
• Coolant system
• LED working lamp
• End of program light
• Electronic handwheel (MPG)
• Tool box
• Leveling bolts and blocks
• Coolant gun
• Air gun
• Air blast during cutting
• User Manual
OPTIONAL ACCESSORIES
• Direct drive spindle 6000 rpm, BBT50 (VF1100, VF1300, VF1500)
• Motor spindle 20000 rpm, HSK A63
• CTS coolant through spindle + ATS
• Oil cooled ballscrew
• Oil skimmer
• Linear scales
• 4th axis
• 4/5th axis
• Workpiece probe
• Tool probe
