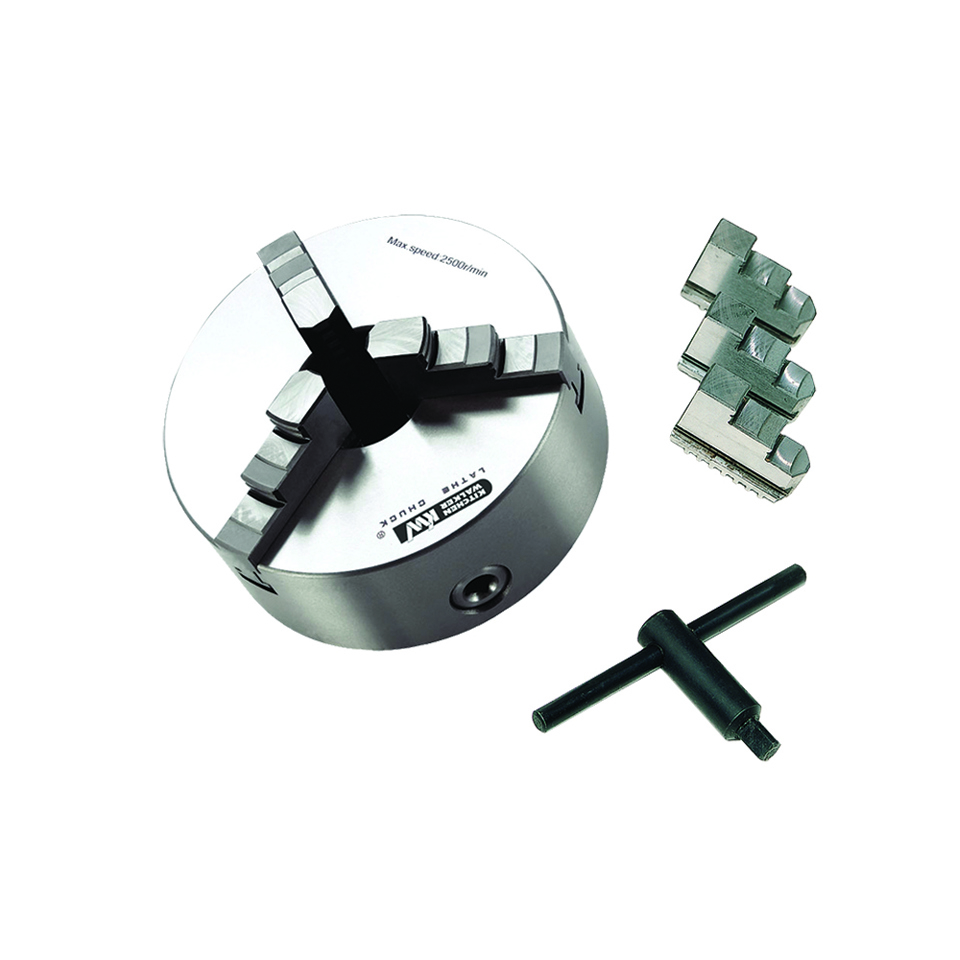

Quality 3 jaw lathe chuck. Self centering mono block with plainback.
All chucks are fully ground and work to a permissible error of 0.064mm at 50mm from chuck jaws.
Each chuck comes with 1 set internal and 1 set external jaws and chuck key.

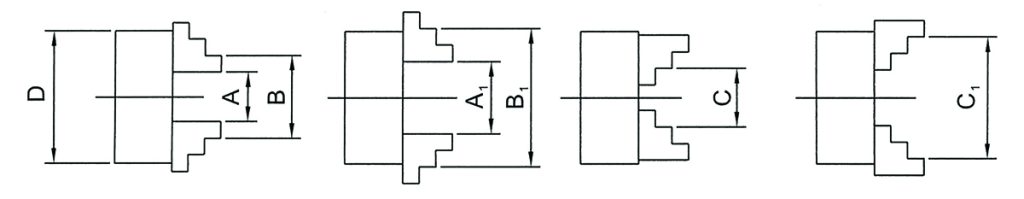

| Clamping Range |
|
|
|
| Size | Internal Jaw (A-A1) | Internal Jaw (B-B1) | External Jaw (C-C1) |
| 80mm | 2-22mm | 25-70mm | 22-63mm |

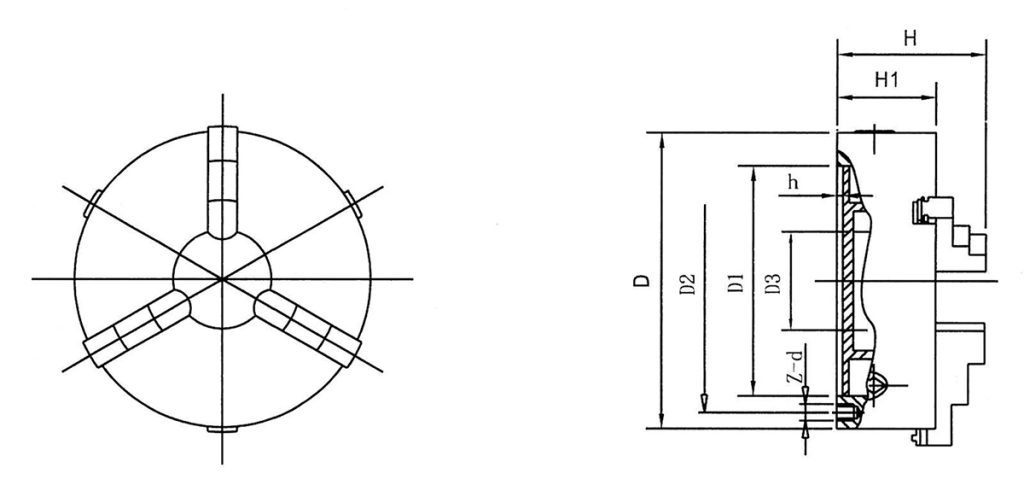

| Installation Dimensions |
|
|
|
|
|
|
|
| Size | D1 | D2 | D3 | H1 | h | Z-d | H |
| 80mm | 55mm | 66mm | 16mm | 50mm | 4mm | 3mm M6 | 66.5mm |
