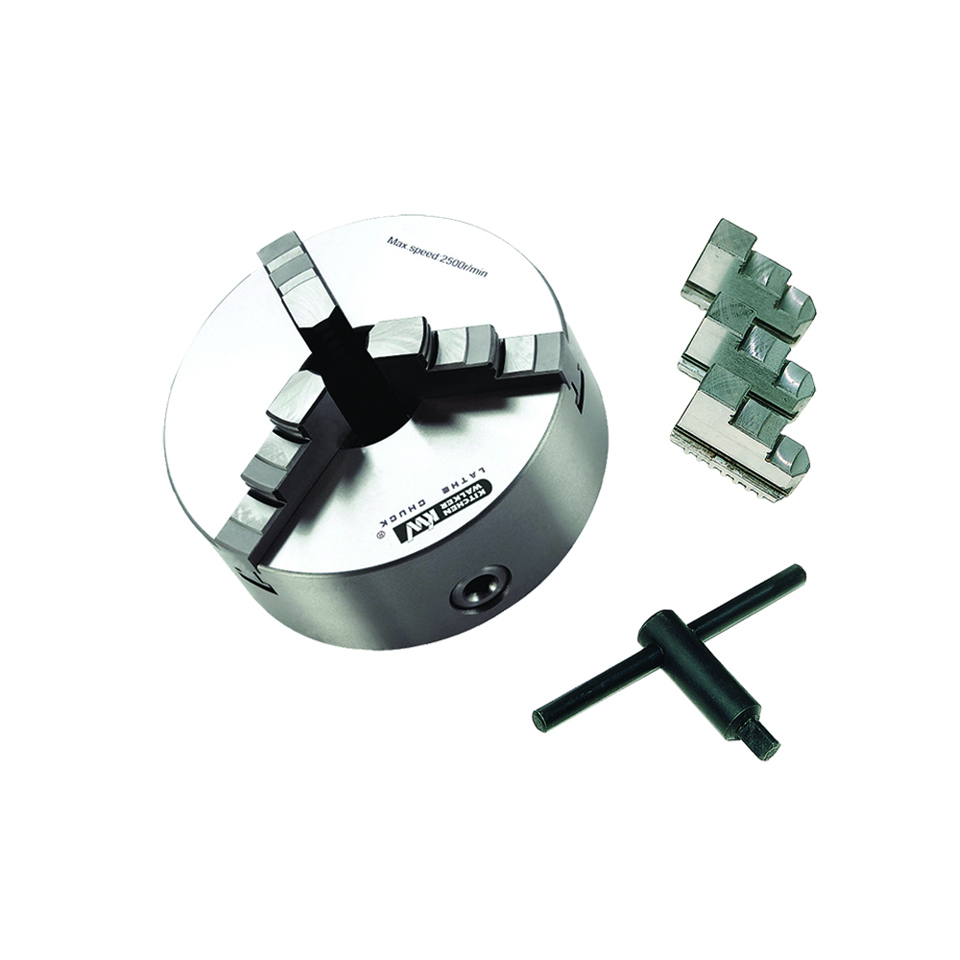

Precision 3 Jaw Chucks for metal work.
All chucks are fully ground and work to a permissible error of 0.064mm at 50mm from chuck jaws.
Each chuck comes with 1 set internal and 1 set external jaws and chuck key.

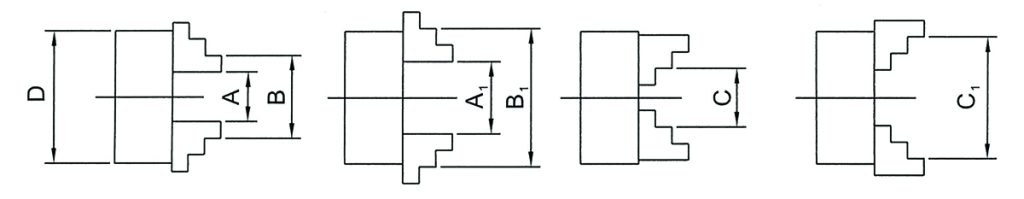

| Clamping Range |
|
|
|
| Size | Internal Jaw (A-A1) | Internal Jaw (B-B1) | External Jaw (C-C1) |
| 250mm | 6-110mm | 80-250mm | 90-250mm |

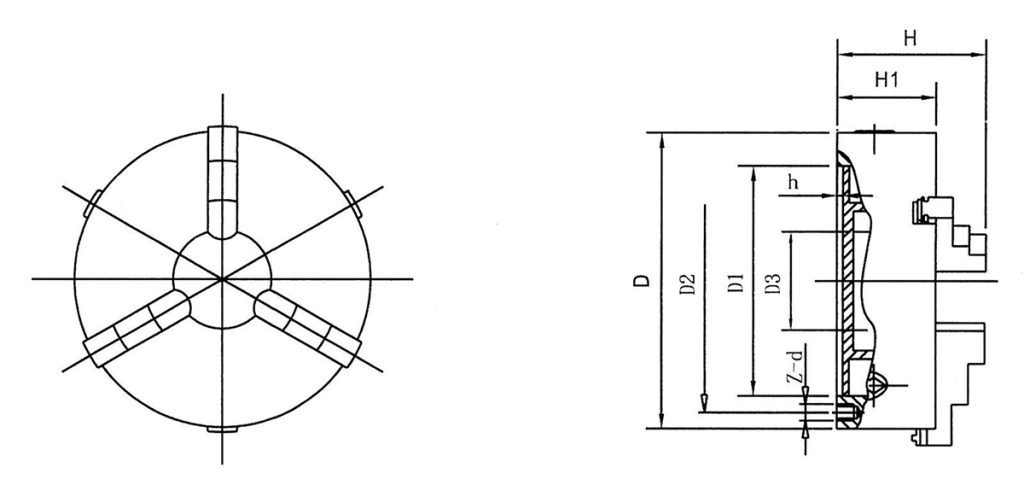

| Installation Dimensions |
|
|
|
|
|
|
|
| Size | D1 | D2 | D3 | H1 | h | Z-d | H |
| 250mm | 206mm | 226mm | 80mm | 80mm | 6mm | 3mm M12 | 120mm |
