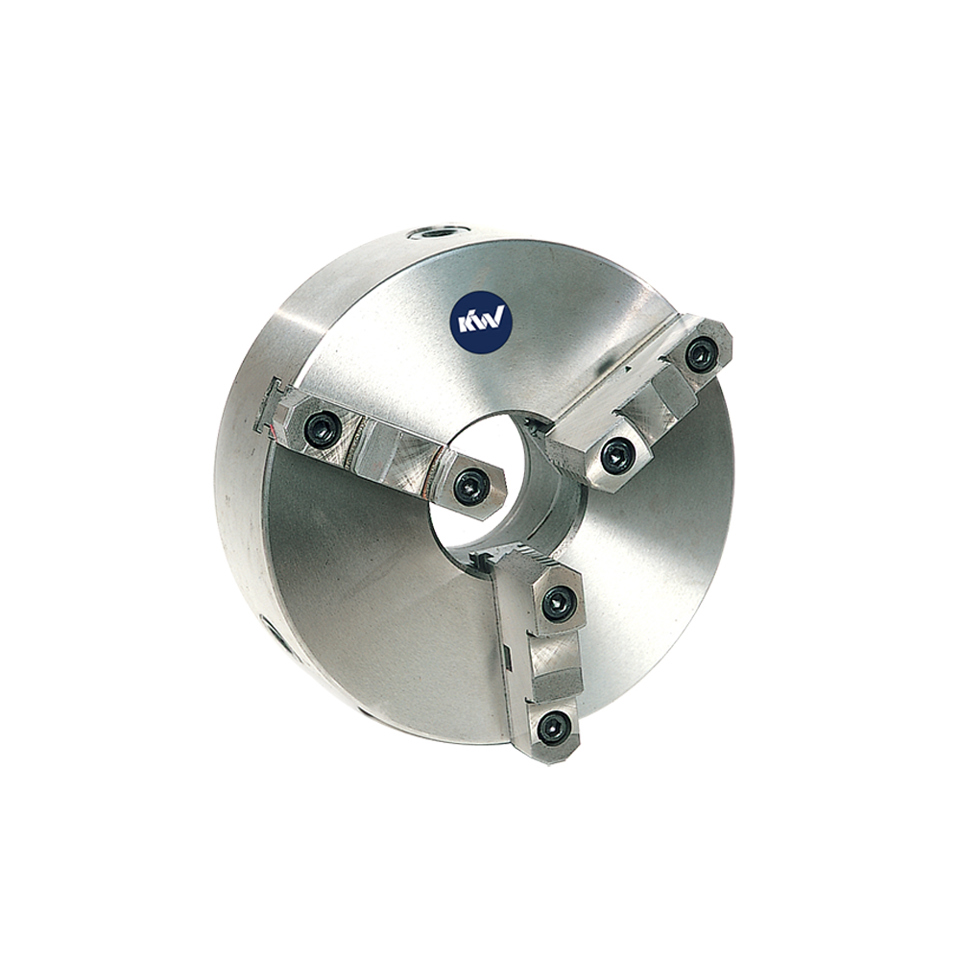

Ideal for workholding.
Size | 200mm |
Camlock | D1-4 |
Weight | 20kg |
Each chuck is supplied with 1 set reversible jaws and chuck key.

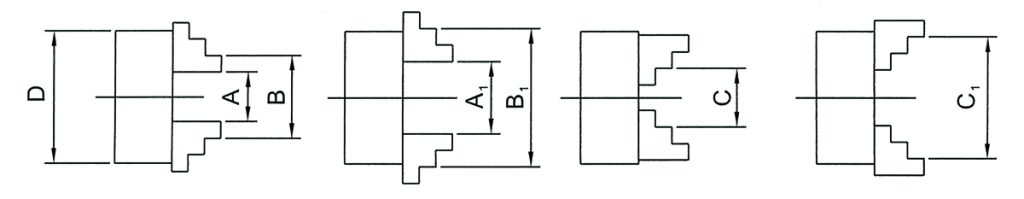

| Clamping Range |
|
|
|
| Size | Internal Jaw (A-A1) | Internal Jaw (B-B1) | External Jaw (C-C1) |
| 200mm | 4-85mm | 65-200mm | 65-200mm |

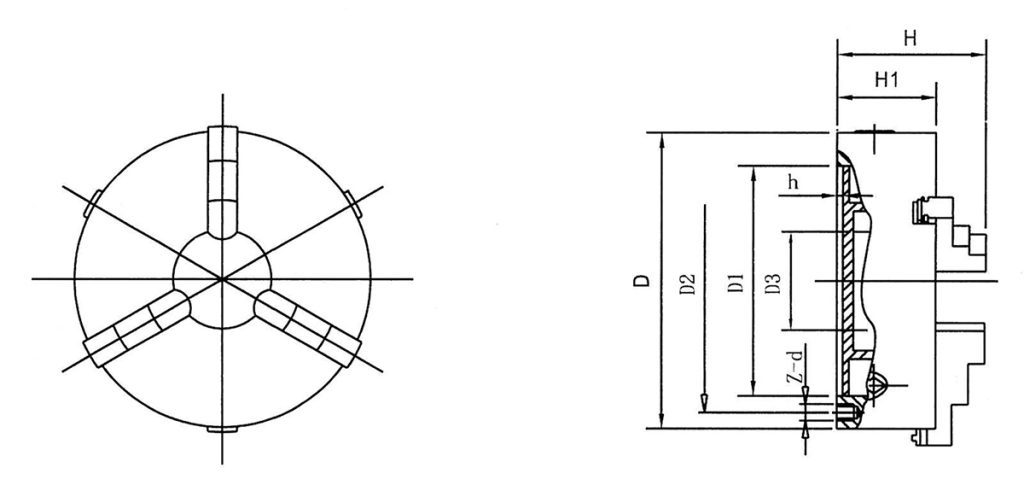

| Installation Dimensions |
|
|
|
|
|
|
|
| Size | D1 | D2 | D3 | H1 | h | Z-d | H |
| 200mm | 165mm | 180mm | 65mm | 75mm | 6mm | 3mm M10 | 109mm |
