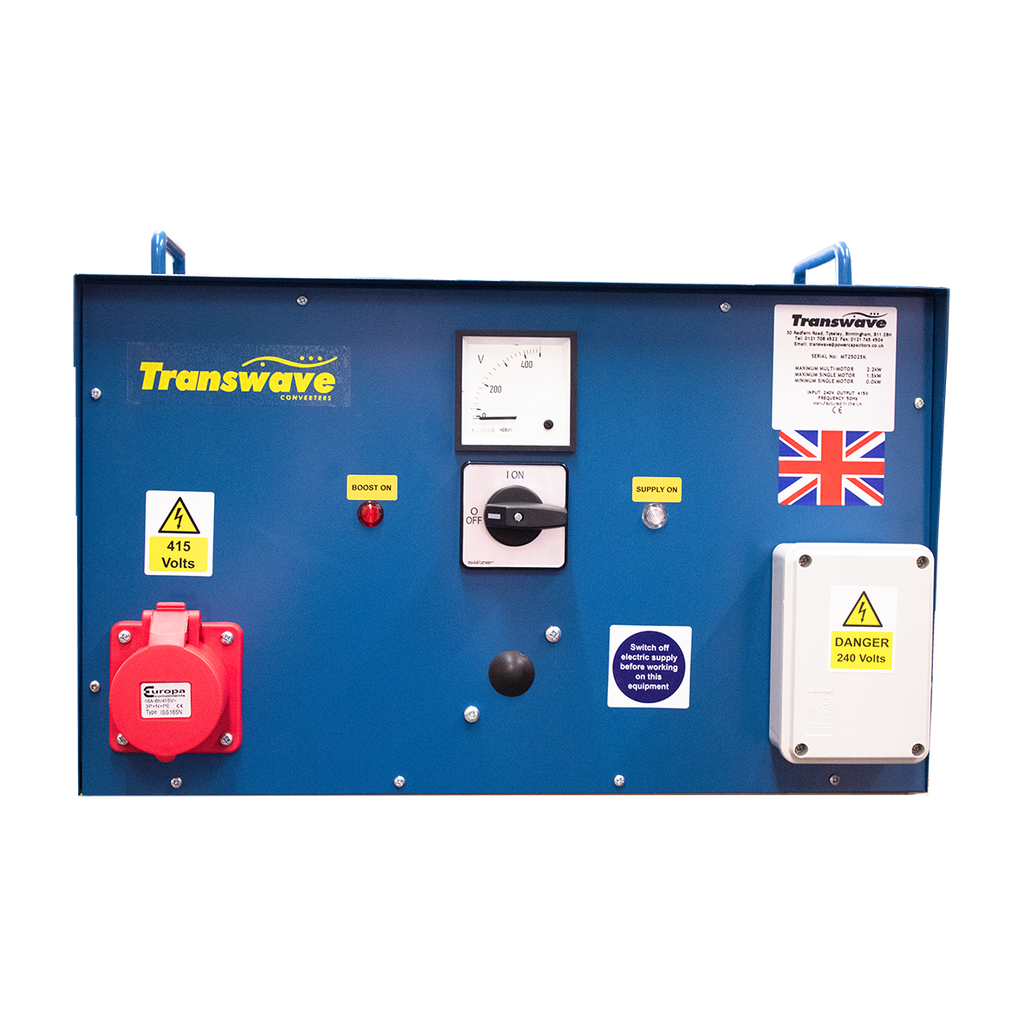

These Transwave rotary power convertors enable three phase machines to operate from a single phase supply with ease.
Ideal for multi-motor, multi-operator environments. Multi-motor applications can be accommodated up to the maximum loading of the converter, provided that the specified maximum single motor load is not exceeded.
Often used in conjunction with machine tools, these power convertors are also suitable for applications where equipment has a heavy starting load, or is subjected to an abnormal surge current.
How to select the correct Rotary Convertor:
1. Find the main motor capacity i.e. 2kW.
2. Look for the rotary convertor with the Maximum Load Single Motor above the main motor capacity i.e. 2Kw motor requires 2.2kW rotary convertor.
3. For Multi-Motor machines use the same process with the Maximum Load Multi-Motor column.
| Maximum Load Multi-Motor | Maximum Load Single Motor | Weight | Frame Size | Part Number | Stock Code |
| 1.1kW/1.5hp | 0.75kW/1hp | 33kg | 2 | MT1.1 | 071-014 |
| 1.5kW/2hp | 1.1kW/1.5hp | 35kg | 2 | MT1.5 | 071-013 |
| 2.2kW/3hp | 1.5kW/2hp | 44kg | 2 | MT2 | 071-002 |
| 3kW/4hp | 2.2kW4hp | 70kg | 3 | MT3DD | 071-015 |
| 4kW/5.5hp | 3kW/4hp | 83kg | 3 | MT4 | 071-016 |
| 5.5kW/7.5hp | 4kW/5.5hp | 100kg | 3 | MT5 | 071-017 |
| 7.5kW/10hp | 5.5kW/7.5hp | 105kg | 3 | MT7 | 071-018 |
| 11kW/15hp | 7.5kW/10hp | 130kg | 3 | MT11 | 071-019 |
| 15kW/20hp | 11kW/15hp | 215kg | 4 | MT15 | 071-021 |
| 18.5kW/25hp | 15kW/20hp | 220kg | 4 | MT18 | 071-012 |
| 22kW/30hp | 18.5kW/25hp | 225kg | 4 | MT22 | 071-022 |
| Frame Size | Height | Width | Depth |
| 1 | 300mm | 460mm | 310mm |
| 2 | 350mm | 510mm | 350mm |
| 3 | 800mm | 610mm | 370mm |
| 4 | 915mm | 750mm | 450mm |
