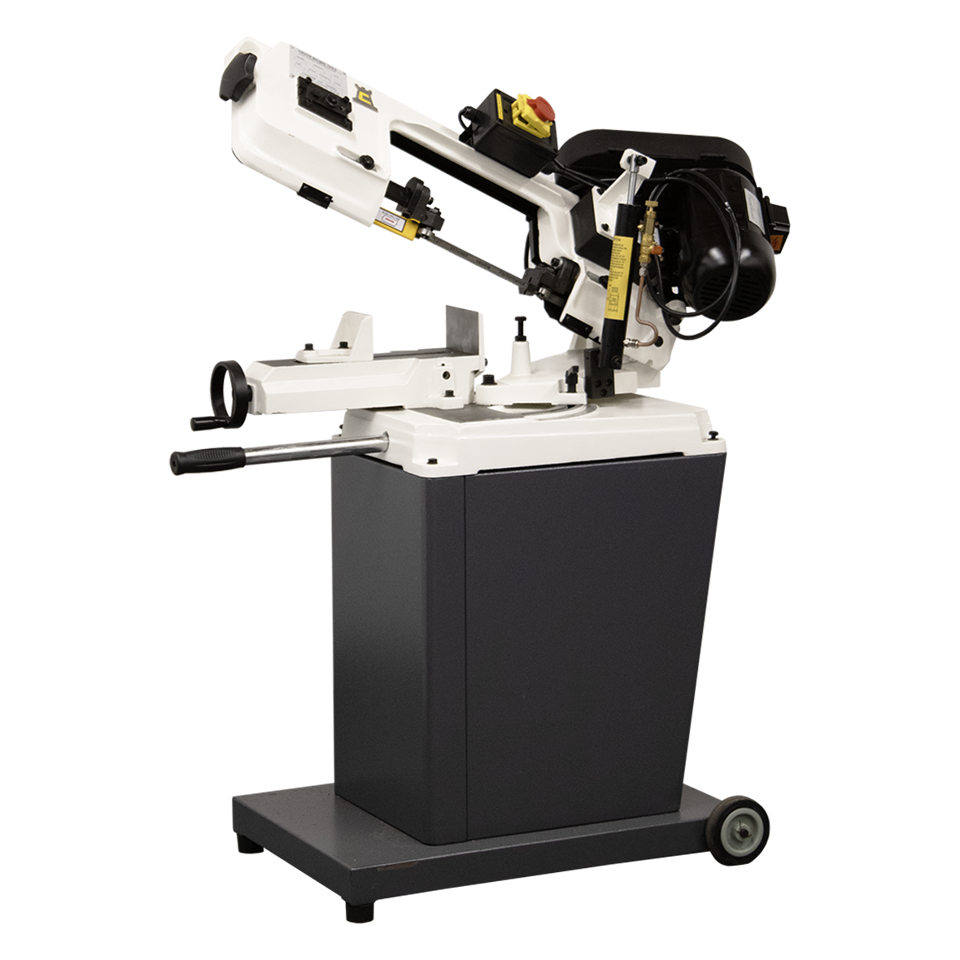

Chester 128M Bandsaw, 400V
Cutting Capacity Round: 128mm
Sawing Machines
The Chester 128M Bandsaw is a robust, small portable bandsaw built with a cast iron bow and base for accurate cutting.
The saw is supplied with a 240V electrical supply. A built in hydraulic downfeed ensures the correct cutting speed.
• Adjustable Hydraulic Down Feed of Bow
• Quick Action Vice
• Bow Swivels Left and Right 45° for Mitre Cutting
• Material Length Stop
• Portable Stand with Wheels
• Cast Iron Bow and Base
• Ball Bearing Blade Guides
• Induction Motor
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 128mm |
| Square | 128x128mm |
| Rectangular | 128x150mm |
| Capacity @ 45° |
|
| Round | 95mm |
| Rectangular | 75x95mm |
| Capacity @ 60° |
|
| Round | 44mm |
| Rectangular | 44x56mm |
| Technical Specifications |
|
| Blade Dimensions | 13×0.6x1638mm |
| Motor Power | 0.550kw(3/4hp) |
| Machine Dimensions | 960x540x610mm |
| Net Weight | 85kg |
| Gross Weight | 104kg |
| Voltage | 240V |
Features
- Adjustable hydraulic down feed of bow
- Quick Action Vice
- Bow Swivels Left and Right 45° for Mitre Cutting
- Material length stop
- Portable stand with wheels
- Cast iron bow and base
- Ball bearing blade guides
- Induction motor
