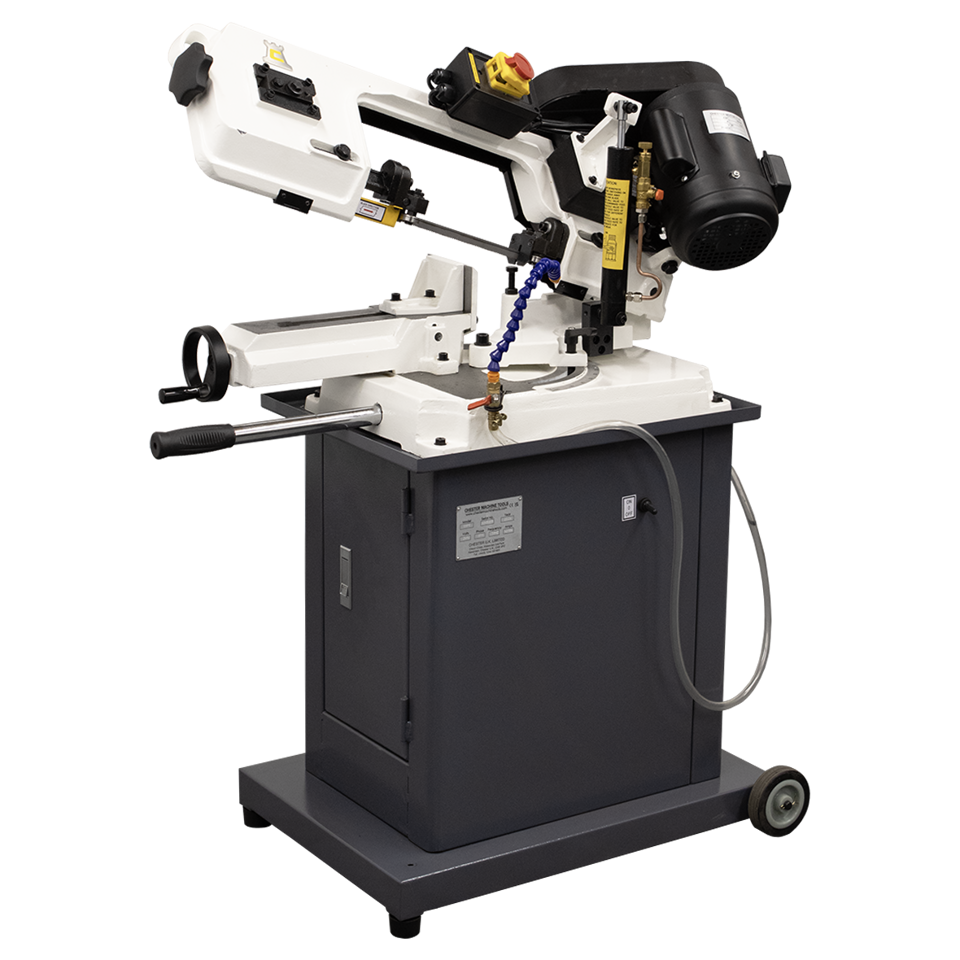

Chester 128MC Bandsaw, 400V

Cutting Capacity Round: 128mm
Sawing Machines

Please contact our team for a custom quote and competitive pricing

The Chester 128MC Metal Cutting Bandsaw has a capacity of 5” and

is built with a cast iron base and bow to provide high accuracy

and stability.

The stand incorporates a storage compartment and is built with a tray for the inbuilt coolant system fluid.

• Adjustable Hydraulic Down Feed of Bow

• Coolant System

• Quick Action Vice

• Bow Swivels Left and Right 45° for Mitre Cutting

• Material Length Stop

• Cast Iron Bow and Base

• Ball Bearing Blade Guides

• Cabinet Stand with Storage

• Induction Motor


Cutting Capacities

Capacity @ 0°

Round128mm
Square128x128mm
Rectangular128x150mm
Capacity @ 45°

Round95mm
Rectangular75x95mm
Capacity @ 60°

Round44mm
Rectangular44x56mm
Technical Specifications

Blade Dimensions13×0.6x1638mm
Motor Power0.550kw(3/4hp)
Machine Dimensions960x540x610mm
Net Weight85kg
Gross Weight104kg
Voltage240V

Features

  • Adjustable hydraulic down feed of bow
  • Coolant system
  • Quick action vice
  • Bow swivels left and right 45° for mitre cutting
  • Material length stop
  • Cast iron bow and base
  • Ball bearing blade guides
  • Cabinet stand with storage
  • Induction motor
