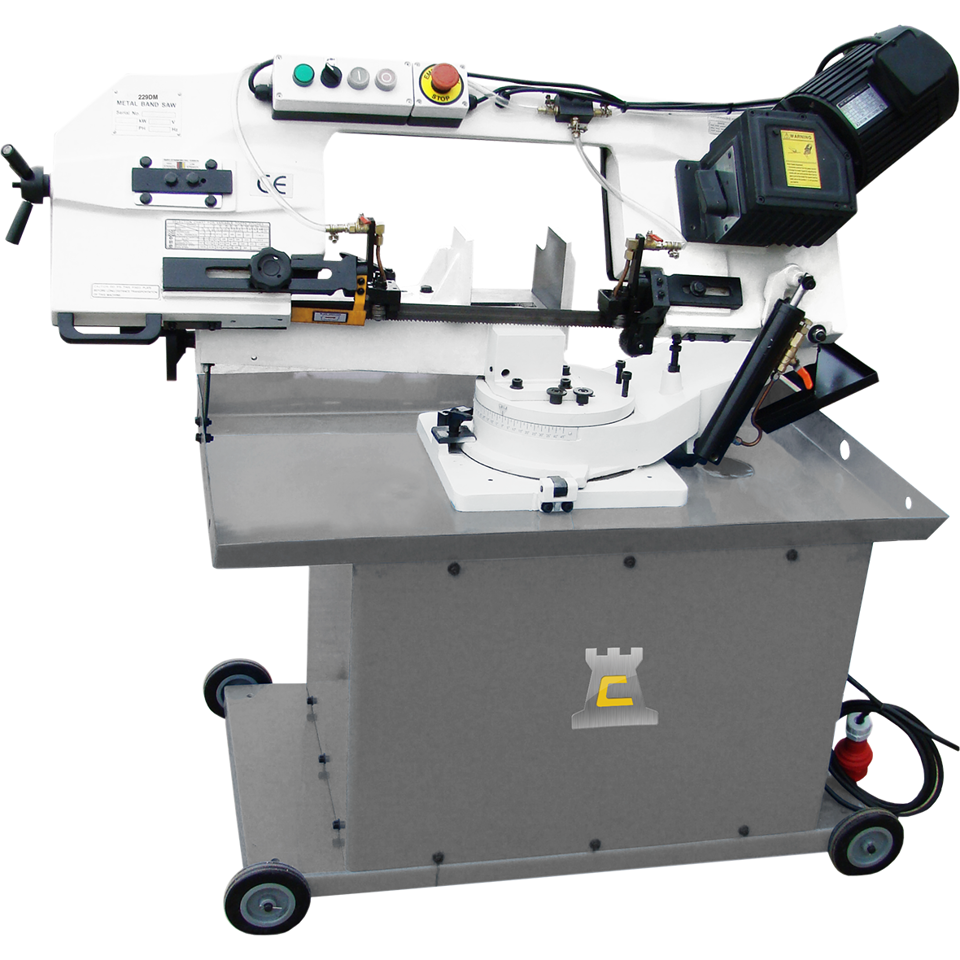

Chester 229DM Bandsaw, 240V
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 229mm
Sawing Machines
Education
The Chester 230DM Metal Working Bandsaw is fitted with an electronic variable speed system which allows the operator to ascertain the correct blade speed whilst cutting.
It is built with a cast iron bow and base for rigidity and incorporates a quick action vice to increase the speed of change for cutting material.
• Adjustable Hydraulic Down Feed of Bow
• Coolant System
• Quick Action Vice
• Bow Swivels Left and Right 60° for Mitre Cutting
• EVS – Electronic Variable Speed for Blade
• Material Length Stop
• Cast Iron Bow and Base
• Gear Driven Blade
• Quick Action Mitre Bow
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 229mm |
| Square | 200x200mm |
| Rectangular | 178x305mm |
| Capacity @ 45° |
|
| Round | 150mm |
| Square | 127x127mm |
| Rectangular | 127x150mm |
| Technical Specifications |
|
| Bundle Cutting Capacity | 178x305mm |
| Blade Dimensions | 27×0.9x2655mm |
| Motor Power | 1.1kw(1.5hp) |
| Table Height | 730mm |
| Machine Dimensions | 1400x670x1180mm |
| Net Weight | 242kg |
| Gross Weight | 318kg |
Features
- Vice can swivel for mitre cutting
- Adjustable hydraulic down feed of bow
- Coolant system
- Quick Action Vice
- Bow swivels left and right 45° for mitre cutting
- Material length stop
- Gear driven blade
- Cast iron base
- Stand with wheels
