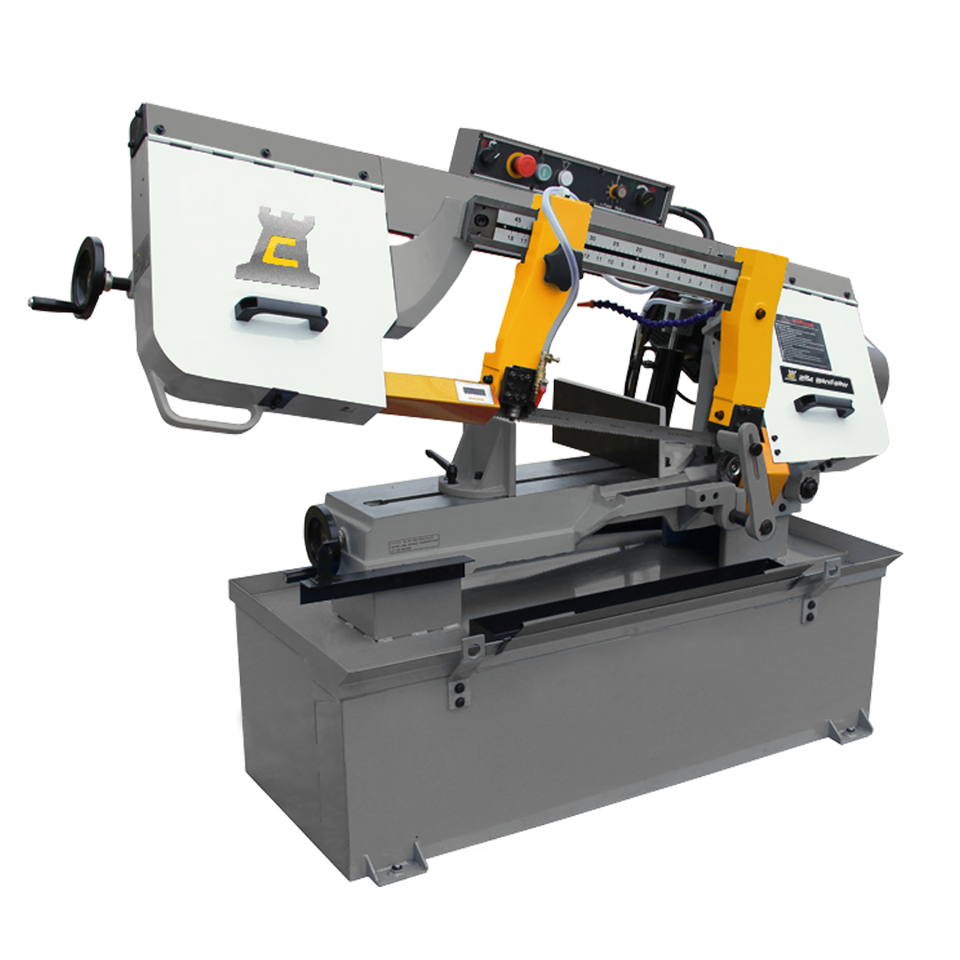

Chester 254 Bandsaw, 400V
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 254mm
Sawing Machines
Education
The Chester 254 Bandsaw can cut up to 10” square bar. It has a variable speed
system for the blade speed which provides the user with the ability to obtain the
correct blade cutting speed.
The bed of the saw is made from cast iron and the base is designed to ensure stability of the machine.
• Vice Can Swivel for Mitre Cutting
• Adjustable Hydraulic Down Feed of Bow
• Coolant System
• Quick Action Vice
• EVS – Electronic Variable Speed for Blade
• Material Length Stop
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 254mm |
| Square | 254x254mm |
| Rectangular | 127x457mm |
| Capacity @ 45° |
|
| Round | 150mm |
| Square | 150x150mm |
| Rectangular | 150x190mm |
| Technical Specifications |
|
| Bundle Cutting Capacity | 127x457mm |
| Blade Dimensions | 27×0.9x3280mm |
| Motor Power | 1.5kw (2hp) |
| Table Height | 573mm |
| Machine Dimensions | 1720x730x1020mm |
| Net Weight | 310kg |
| Gross Weight | 392kg |
| Voltage | 400V |
Features
- Vice can swivel for mitre cutting
- Adjustable hydraulic down feed of bow
- Coolant system
- Quick action vice
- EVS – Electronic Variable Speed for Blade
- Material length stop
