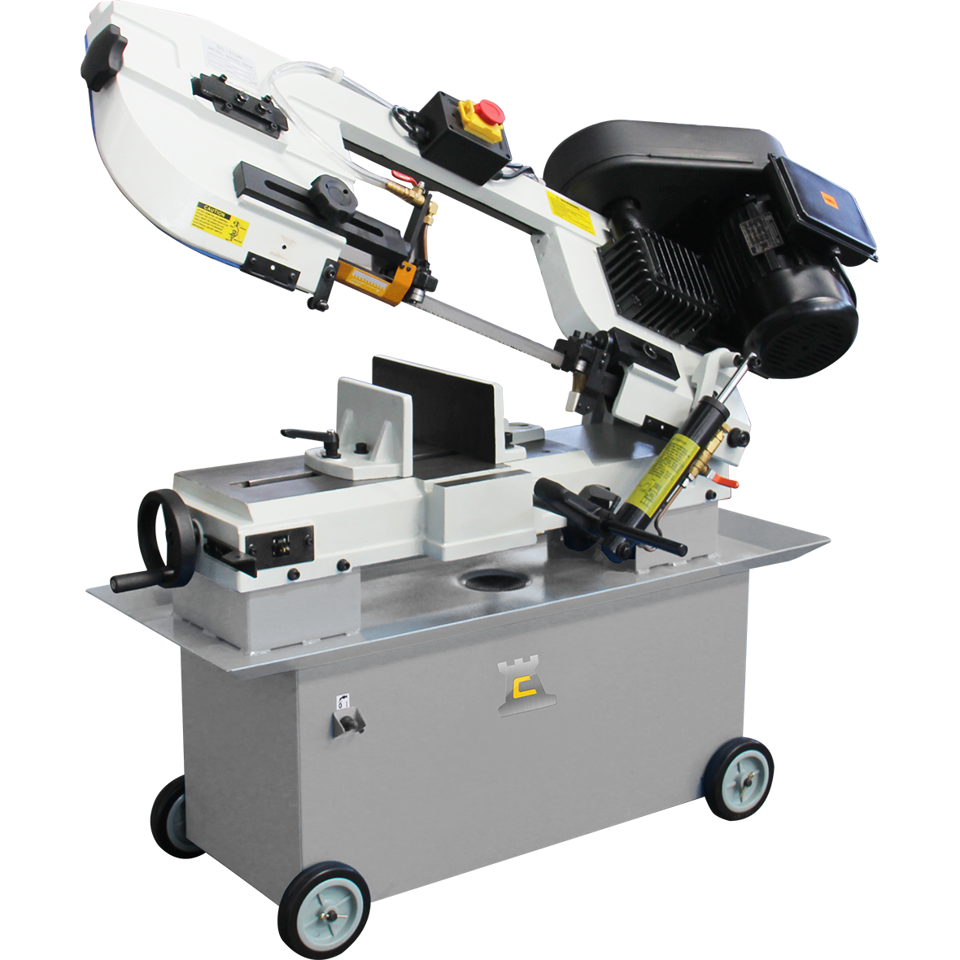

Chester 178 bandsaw, 240V
Cutting Capacity Round: 178mm
Sawing Machines
The Chester 178 Bandsaw is suitable for small engineering and fabrication workshops, it is built with a cast iron bow for rigidity and is complemented with a coolant system to increase the cutting capacity and blade wear.
• Vice Can Swivel for Mitre Cutting
• Adjustable Hydraulic Down Feed of Bow
• Coolant System
• Quick Action Vice
• Material Length Stop
• Auto Switch Off
• Cast Iron Bow
• Ball Bearing Blade Guides
• Mitre Cutting Vice
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 178mm |
| Square | 178x178mm |
| Rectangular | 178x305mm |
| Capacity @ 45° |
|
| Round | 127mm |
| Square | 120x120mm |
| Rectangular | 120x125mm |
| Technical Specifications |
|
| Bundle Cutting Capacity | 178x305mm |
| Blade Dimensions | 19×0.9x2362mm |
| Table Height | 550mm |
| Motor Power | 0.75kw(1hp) |
| Machine Dimensions | 1250x510x1140mm |
| Net Weight | 140kg |
| Gross Weight | 180kg |
| Voltage | 240V
400V |
Features
- Vice can swivel for mitre cutting
- Adjustable hydraulic down feed of bow
- Coolant system
- Quick action vice
- Material length stop
- Auto switch off
- Cast Iron Bow
- Ball bearing blade guides
- Mitre cutting vice
