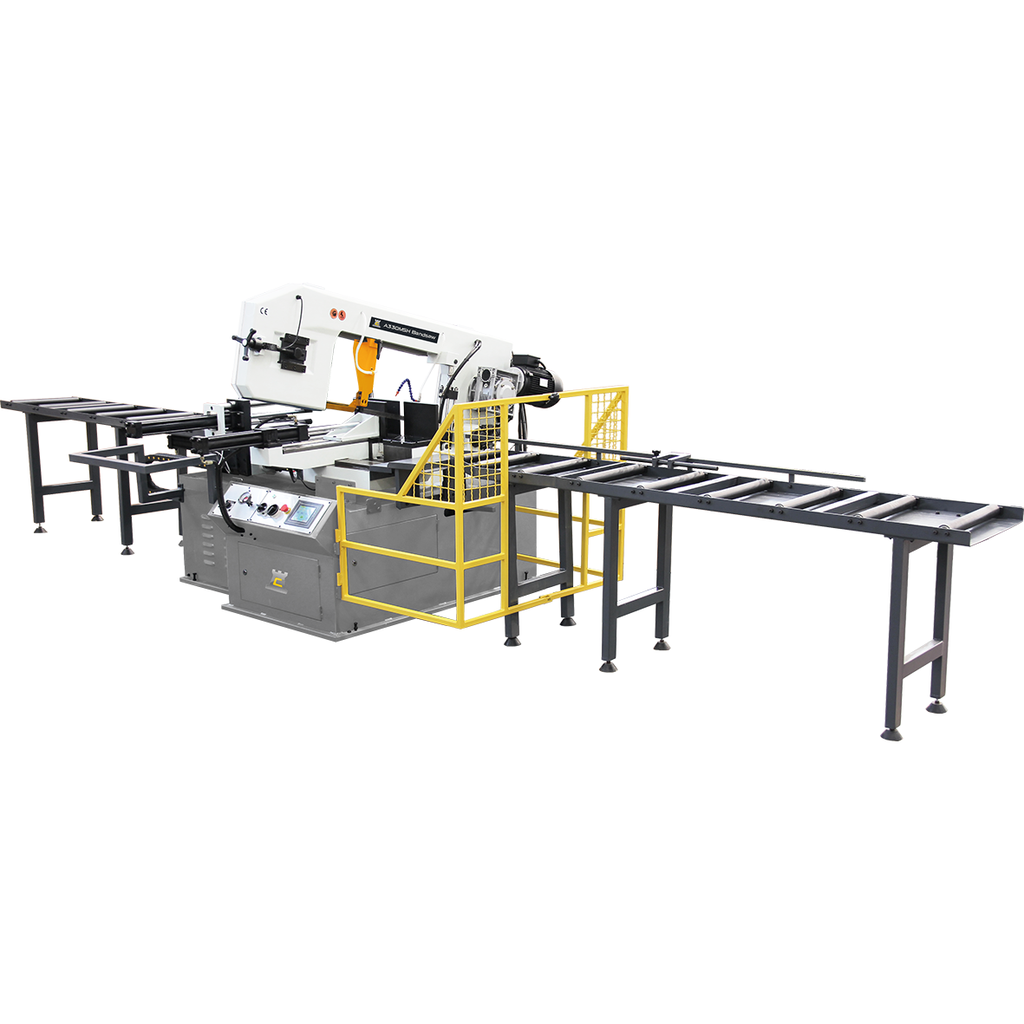

CHESTER A330MSH Bandsaw
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 330mm
Sawing Machines
A precision bandsaw with 30°, 45°, and 60° bow swivels right for mitre cutting. With powered material feed by shuttle vice and rollers.
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Coolant System
• Fully-Automatic Function
• Powered Material Feed by Shuttle Vice
• Powered Material Feed by Rollers
• Bow Swivels Right 30°, 45°, 60° for Mitre
Cutting
• EVS – Electronic Variable Speed for Blade
• Material Length Stop
• Roller Stand
• Touch Screen Control
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 330mm |
| Square | 250x250mm |
| Rectangular | 460x250mm |
| Capacity @ 30° |
|
| Round | 310mm |
| Square | 310x310mm |
| Rectangular | 460x250mm |
| Capacity @ 45° |
|
| Round | 305mm |
| Square | 250x250mm |
| Rectangular | 305x250mm |
| Capacity @ 60° |
|
| Round | 205mm |
| Square | 205x205mm |
| Rectangular | 205x250mm |
| Technical Specifications |
|
| Blade Dimensions | 27×0.9x3960mm |
| Motor Power | 1.5kw(2hp)
2.2kw(3hp) |
| Table Height | 850mm |
| Machine Dimensions | 2500x2300x1630mm |
| Net Weight | 1520kg |
| Gross Weight | 1655kg |
Features
- Hydraulic vice
- Adjustable hydraulic down feed of bow
- Hydraulic raising of bow
- Coolant system
- Fully automatic function
- Powered material feed by shuttle vice
- Powered material feed by rollers
- Bow swivels right 35°, 45°, 60° for mitre cutting
- EVS – Electronic variable speed for blade
- Material length stop
- Roller Stand
- Touch Screen Control
