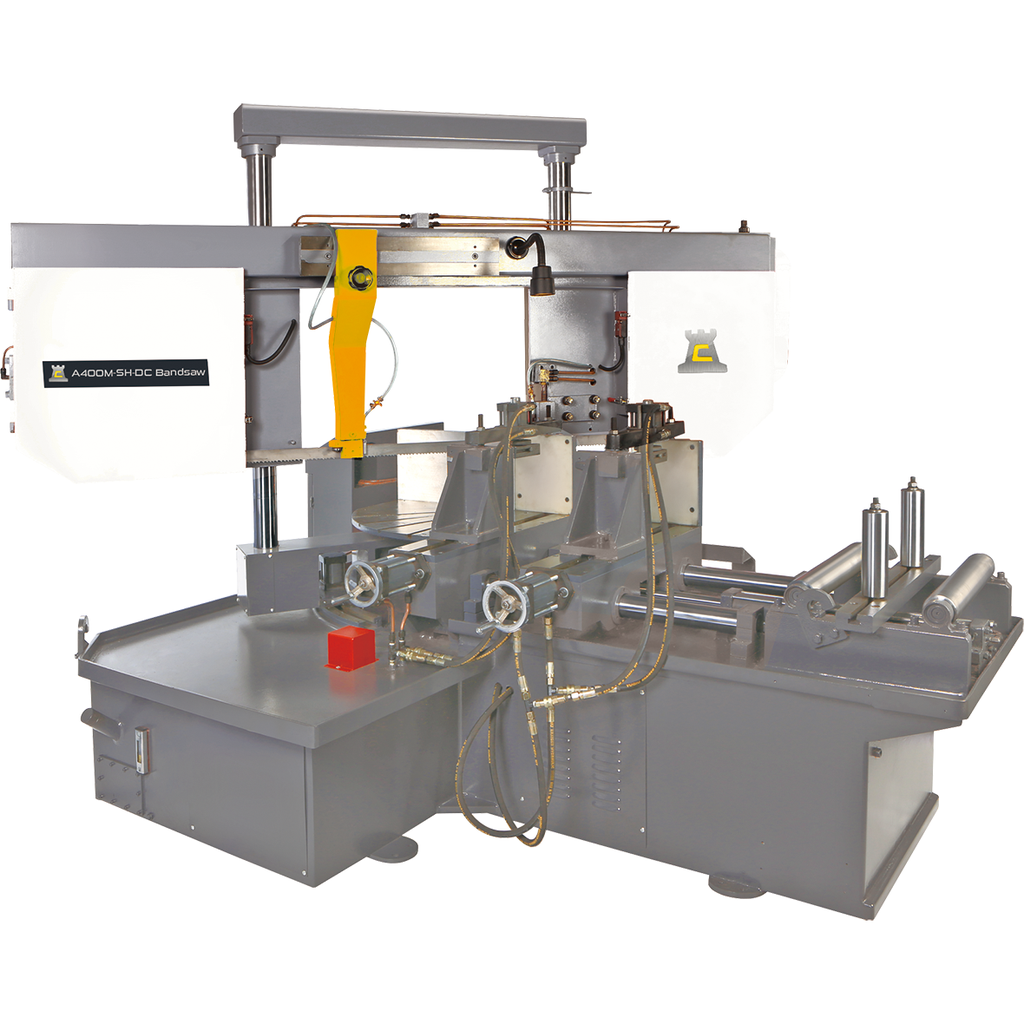

CHESTER A400M-SH-DC Bandsaw
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 400mm
Sawing Machines
Fully automatic and programmable bandsaw with electronic variable blade speed for a precision cut. With double columns for high rigidity and accuracy.
• Fully Automatic Function
• Work Lamp
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Blade Tension Gauge
• Coolant System
• Programmable
• Material Feed by Hydraulic Vice
• Bow Swivels Right and Left 45° for Mitre
Cutting
• EVS – Electronic Variable Speed for Blade
• Double Columns for High Rigidity
• Touch Screen Control
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 400mm |
| Square | 400x400mm |
| Rectangular | 500x400mm |
| Capacity @ 45° |
|
| Round | 350mm |
| Square | 350x400mm |
| Rectangular | 350x400m |
| Technical Specifications |
|
| Blade Dimensions | 41×1.3x5590mm |
| Motor Power | 4kw(5.3hp) |
| Table Height | 755mm |
| Machine Dimensions | 2915x2200x2100mm |
| Net Weight | 3000kg |
| Gross Weight | 3100kg |
Features
- Fully Automatic Function
- Work Lamp
- Hydraulic Vice
- Adjustable Hydraulic Down Feed of Bow
- Hydraulic Raising of Bow
- Blade Tension Gauge
- Coolant System
- Programmable
- Material Feed by Hydraulic Vice
- Bow Swivels Right and Left 45° for Mitre Cutting
- EVS – Electronic Variable Speed for Blade
- Double Columns for High Rigidity
- Material length stop
- Touch screen control
