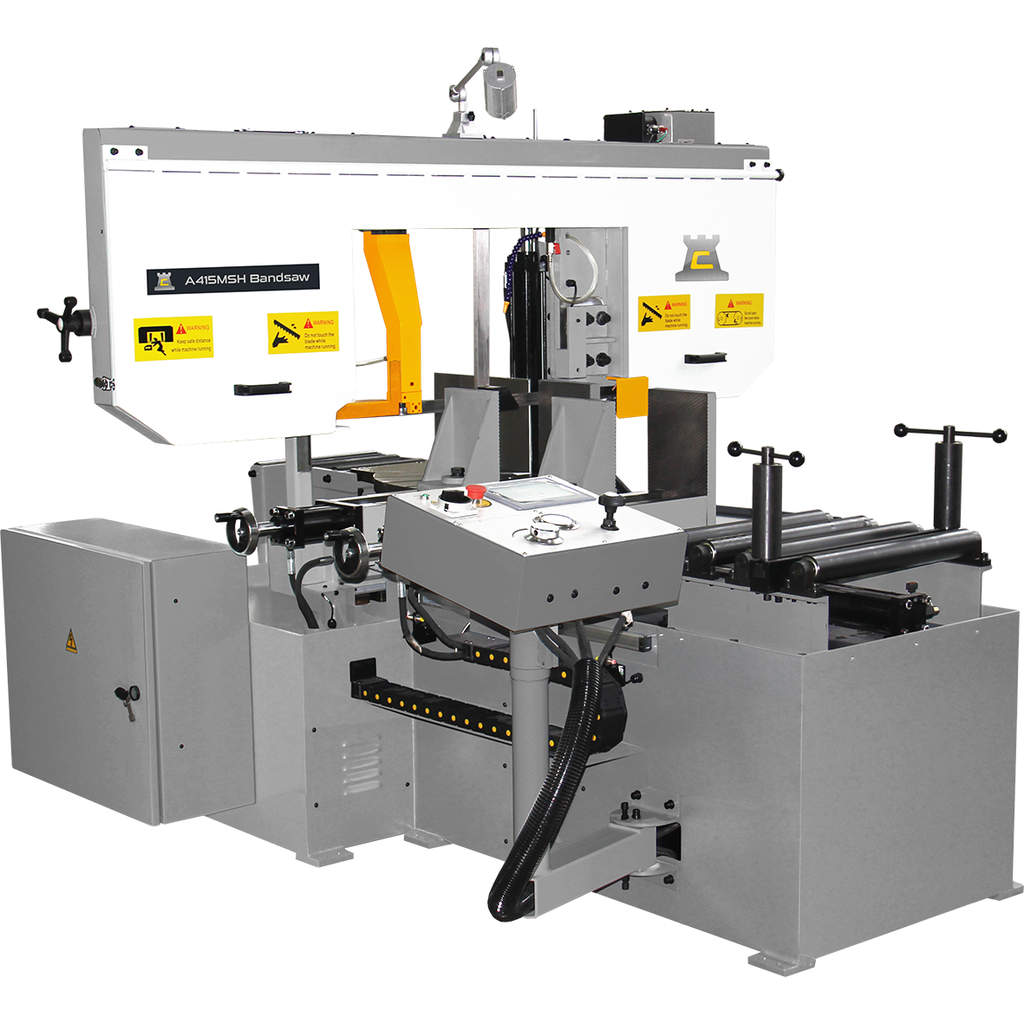

Chester A415MSH Bandsaw
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 415mm
Sawing Machines
• Work Lamp
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Coolant System
• Semi-Automatic Function
• Powered Material Feed by Shuttle Vice
• Powered Material Feed by Rollers
• Bow Swivels Right 45° for Mitre Cutting
• EVS – Electronic Variable Speed for Blade
• Material Length Stop
• Touch Screen Control
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 415mm |
| Square | 415x415mm |
| Rectangular | 500x415mm |
| Capacity @ 45° |
|
| Round | 335mm |
| Square | 265x265mm |
| Rectangular | 265x415mm |
| Technical Specifications |
|
| Blade Dimensions | 34×1.1x4555mm |
| Motor Power | 3.7kw (5hp), servo motor |
| Table Height | 820mm |
| Machine Dimensions | 2250x2350x1750mm |
| Net Weight | 2780kg |
| Gross Weight | 3000kg |
Features
- Work Lamp
- Hydraulic vice
- Adjustable hydraulic down feed of bow
- Hydraulic raising of bow
- Coolant system
- Semi automatic function
- Powered material feed by shuttle vice
- Powered material feed by rollers
- Bow swivels right 45° for mitre cutting
- EVS – Electronic variable speed for blade
- Material length stop
- Touch screen control
