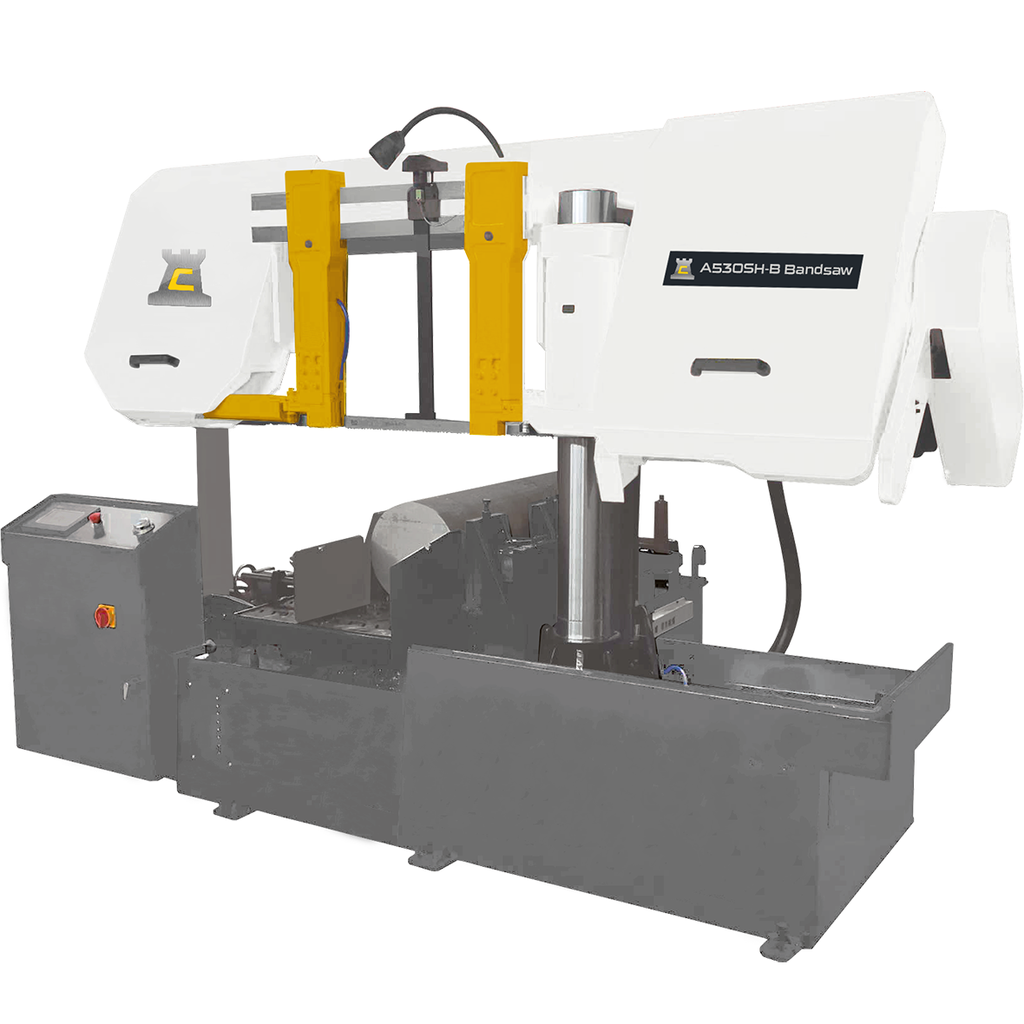

CHESTER A530SH-B Bandsaw
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 530mm
Sawing Machines
Programmable bandsaw with material feed and hydraulic raising of bow.
• Semi-Automatic Function
• Fully-Automatic Function
• Work Lamp
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Blade Tension Gauge
• Coolant System
• Programmable
• Material Feed by Hydraulic Vice
• Double Columns for High Rigidity
• Touch Screen Control
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 530mm |
| Square | 530x530mm |
| Rectangular | 530x530mm |
| Technical Specifications |
|
| Bundle Cutting Capacity | 480x230mm |
| Blade Dimensions | 41×1.3x6000mm |
| Motor Power | 5.5kw(7.3hp) |
| Table Height | 805mm |
| Machine Dimensions | 3150x2150x1850mm |
| Net Weight | 2350kg |
| Gross Weight | 2500kg |
Features
- Semi-Automatic Function
- Fully-Automatic Function
- Work Lamp
- Hydraulic Vice
- Adjustable Hydraulic Down Feed of Bow
- Hydraulic Raising of Bow
- Blade Tension Gauge
- Coolant System
- Programmable
- Material Feed by Hydraulic Vice
- Double Columns for High Rigidity
- Touch Screen Control
