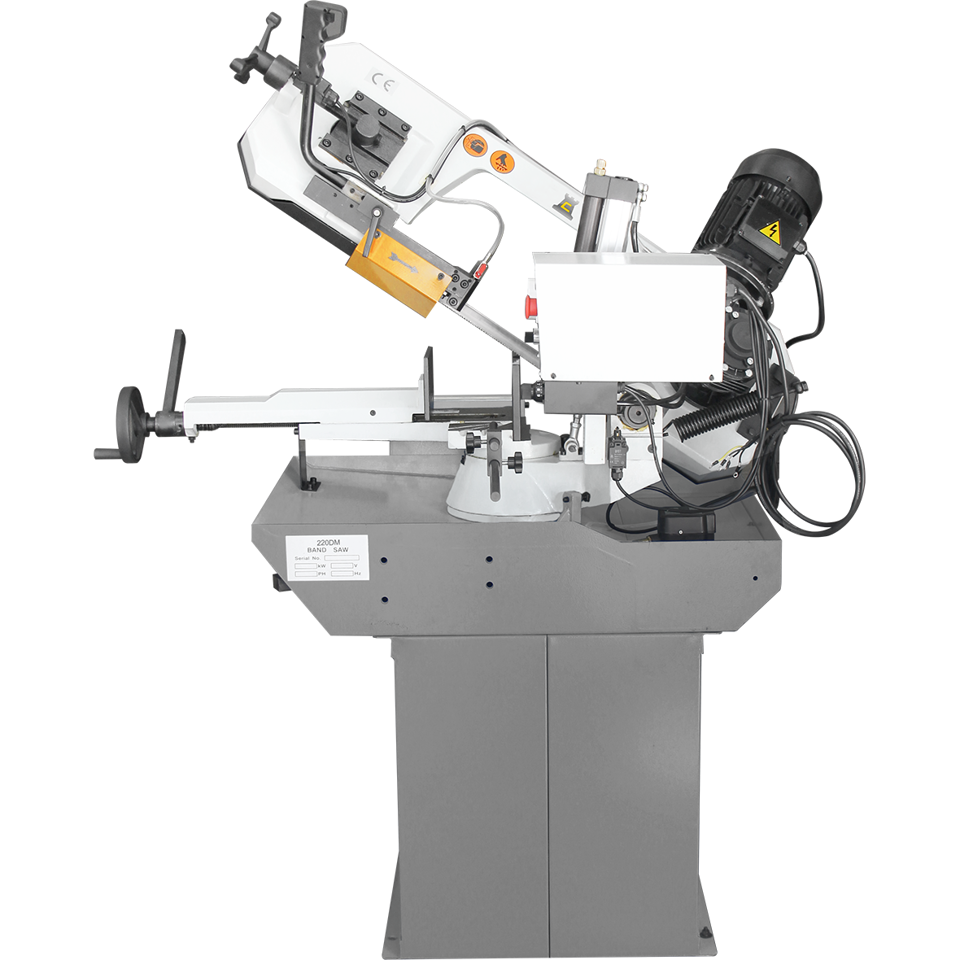

Chester 220DM Bandsaw, 240V
Cutting Capacity Round: 220mm
Sawing Machines
The Chester 220 Double Mitre Bandsaw is ideally suited to metalworking and machining workshops. This machine is built with a cast iron bow and base providing a rigid stable machine.
Each machine is supplied with inbuilt coolant system, hydraulic downfeed and a double mitre facility making for an extremely versatile machine.
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Coolant System
• Quick Action Vice
• Bow Swivels Left and Right 60° for Mitre Cutting
• EVS – Electronic Variable Speed for Blade
• Material Length Stop
• Ball Bearing Blade Guides
• Gear Driven Blade
• Auto Shut Off
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 220mm |
| Square | 170x170mm |
| Rectangular | 250x155mm |
| Capacity @ 45° |
|
| Round | 160mm |
| Square | 160x160mm |
| Rectangular | 160x110mm |
| Capacity @ 60° |
|
| Round | 100mm |
| Square | 80x80mm |
| Rectangular | 80x95mm |
| Technical Specifications |
|
| Bundle Cutting Capacity | 250x155mm |
| Blade Dimensions | 27×0.9x2450mm |
| Motor Power | 0.75/1.1kW(1hp) |
| Table Height | 925mm |
| Machine Dimensions | 1230x740x1600mm |
| Net Weight | 195kg |
| Gross Weight | 250kg |
| Voltage | 240V |
Features
- Adjustable hydraulic down feed of bow
- Hydraulic raising of bow
- Coolant system
- Quick Action Vice
- Bow swivels left and right 45° for mitre cutting
- EVS – Electronic variable speed for blade
- Material length stop
- Ball bearing blade guides
- Gear driven blade
- Auto shut off
