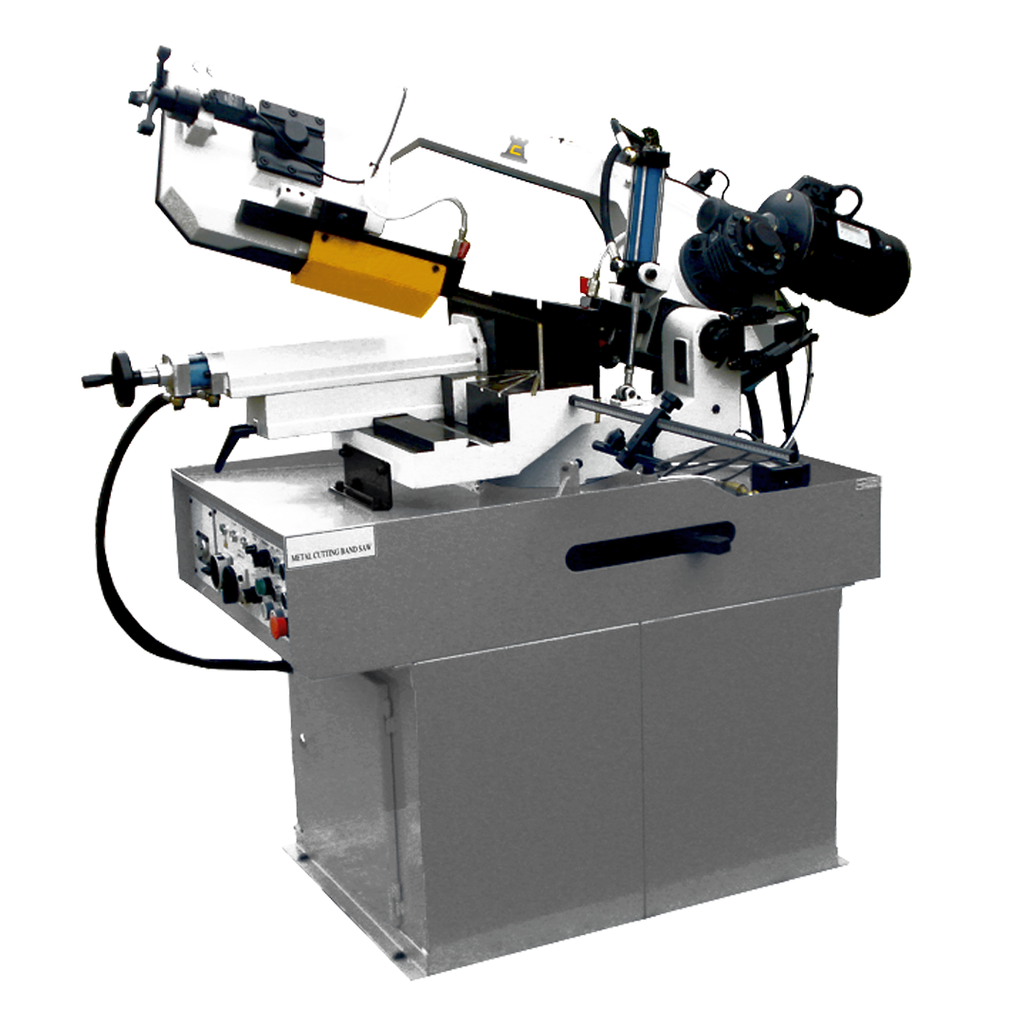

Chester SA-230DM Bandsaw
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 230mm
Sawing Machines
Semi-automatic function bandsaw with electronic variable blade speed and adjustable hydraulic down feed of bow.
• Semi-Automatic Function
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Coolant System
• EVS – Electronic Variable Speed for Blade
• Bow Swivels Left and Right 45° for Mitre
Cutting
• Material Length Stop
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 230mm |
| Square | 180x180mm |
| Rectangular | 315x170mm |
| Capacity @ 45° |
|
| Round | 210mm |
| Square | 170x170mm |
| Rectangular | 210x170mm |
| Capacity @ 60° |
|
| Round | 130mm |
| Square | 130x130mm |
| Rectangular | 130x105mm |
| Capacity @ -45° |
|
| Round | 210mm |
| Square | 170x170mm |
| Rectangular | 210x170mm |
| Technical Specifications |
|
| Blade Dimensions | 27×0.9x2825mm |
| Motor Power | 0.75/1.1kW(1hp) |
| Table Height | 960mm |
| Machine Dimensions | 1680x900x1530mm |
| Net Weight | 400kg |
| Gross Weight | 515kg |
Features
- Semi-Automatic function
- Hydraulic vice
- Adjustable hydraulic down feed of bow
- Hydraulic raising of bow
- Coolant system
- EVS – Electronic variable speed for blade
- Bow swivels left and right 45° for mitre cutting
- Material length stop
