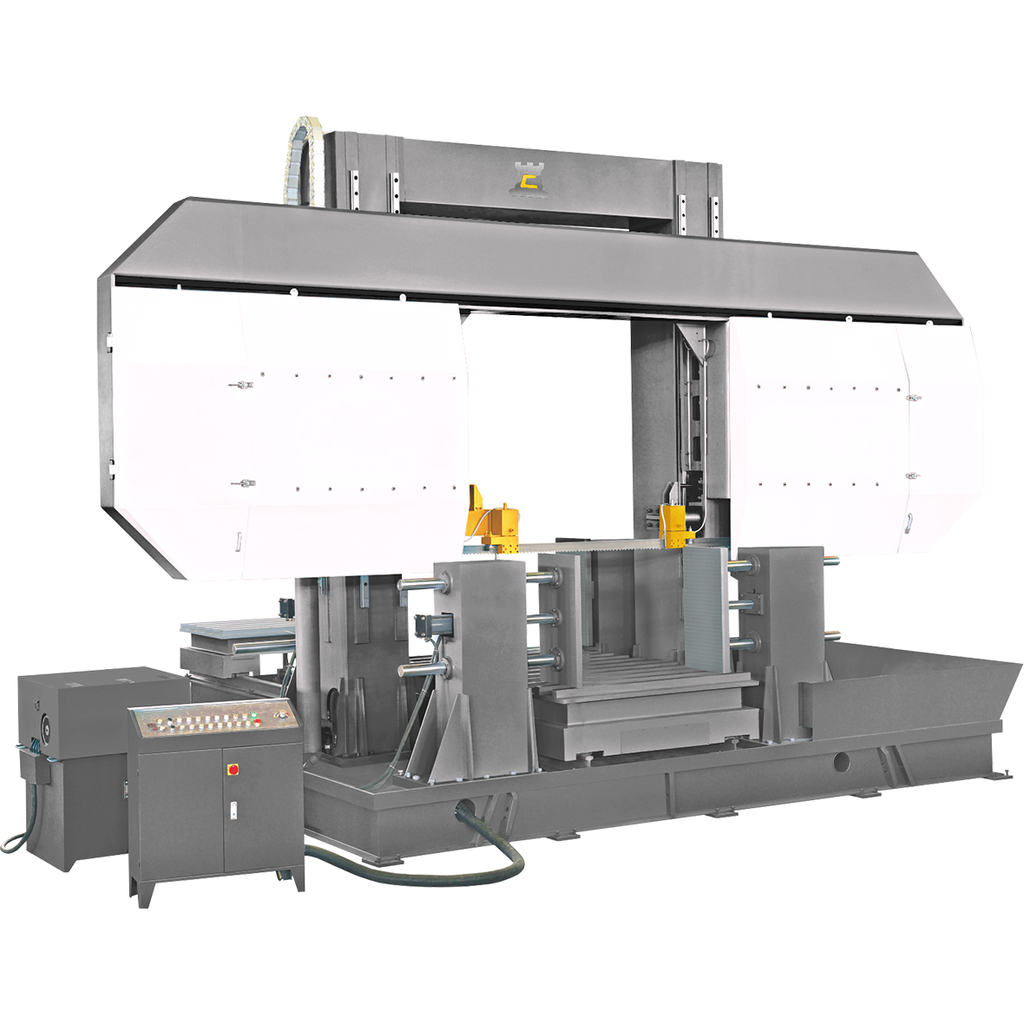

CHESTER SA-1800DC Bandsaw
Cutting Capacity Round: 1800mm
Sawing Machines
The Chester SA-1800DC Semi Automatic Bandsaw is built with two conjoined linear cast iron columns for rigid accurate cutting. This saw is fitted with electronic variable blade speed and blade shut off, auto raising of bow and hydraulic vice. Cutting capacity in either solid or hollow round or square bar is 70 1/2”. The workpiece can be moved into position on the machine with the powered rollers.
• Semi-Automatic Function
• Work Lamp
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Blade Tension Gauge
• Coolant System
• EVS - Electronic Variable Speed for Blade
• Material Feed by Hydraulic Shuttle Table
• Double Columns for High Rigidity
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 1800mm |
| Square | 1800x1800mm |
| Rectangular | 1800x1800mm |
| Technical Specifications |
|
| Blade Dimensions | 80×1.6x17000mm |
| Motor Power | 18.5kW(24.6hp) |
| Table Height | 1050mm |
| Machine Dimensions | 6800x4000x4100mm |
| Net Weight | 27000kg |
Features
- Semi Automatic Function
- Work Lamp
- Hydraulic Vice
- Adjustable Hydraulic Down Feed of Bow
- Hydraulic Raising of Bow
- Blade Tension Gauge
- Coolant System
- EVS – Electronic Variable Speed for Blade
- Powered Material Feed by Rollers
- Double Columns for High Rigidity
